Quick Details
-
Dimension(L*W*H):
-
2850*1630*800mm
-
Application:
-
Furniture Factory, Panel factory
-
Weight (KG):
-
91 KG
-
Power (kW):
-
3/2
-
Max.Cutting Height at 90°(mm):
-
40mm
-
Max.Cutting Height at 45°(mm):
-
30mm
-
Max. Length of Workpiece (mm):
-
2400mm
-
Marketing Type:
-
New Product 2024
-
Name:
-
Remove dust-free sliding table saw
-
Supply voltage:
-
220V/50HZ
-
Total Power:
-
6.2kw
-
Tilt Angle:
-
0-45°
-
Motor power:
-
3/2KW
-
Expand Size:
-
2850*1630*800mm
-
folded size:
-
1000*700*380mm
-
Weight:
-
69/22kg
-
Packing size:
-
1140*700*500mm(L*W*H)
Quick Details
-
Place of Origin:
-
Shandong, China
-
Usage:
-
Panel cutting, woodworking
-
Voltage:
-
220v/50HZ
-
Dimension(L*W*H):
-
2850*1630*800mm
-
Application:
-
Furniture Factory, Panel factory
-
Weight (KG):
-
91 KG
-
Power (kW):
-
3/2
-
Max.Cutting Height at 90°(mm):
-
40mm
-
Max.Cutting Height at 45°(mm):
-
30mm
-
Max. Length of Workpiece (mm):
-
2400mm
-
Marketing Type:
-
New Product 2024
-
Name:
-
Remove dust-free sliding table saw
-
Supply voltage:
-
220V/50HZ
-
Total Power:
-
6.2kw
-
Tilt Angle:
-
0-45°
-
Motor power:
-
3/2KW
-
Expand Size:
-
2850*1630*800mm
-
folded size:
-
1000*700*380mm
-
Weight:
-
69/22kg
-
Packing size:
-
1140*700*500mm(L*W*H)
Products Description

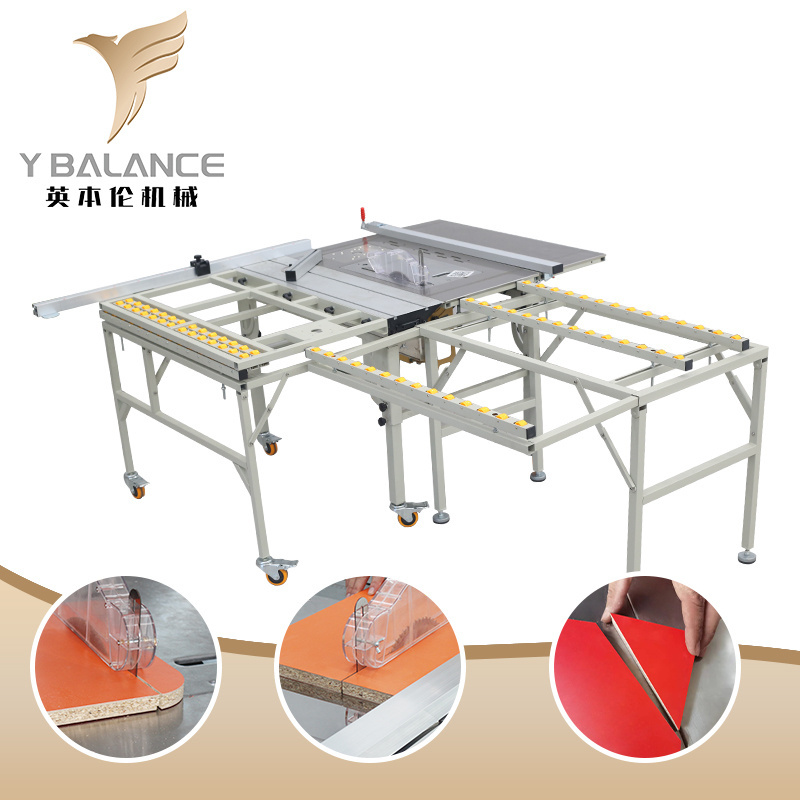

Dust-free sliding table panel saw：
1.The dust-free sliding table saw adopts widened double guide rails, and the cutting angle can be adjusted. The sub saw can be quickly adjusted.
2.Dust free sliding table saw equipped with copper core motor, stable performance, high speed, and strong power.
3.The dust-free sliding table saw can cut the board at a 45 ° angle, making it easy to cut the board. It can be adjusted at a 45 ° angle, and the board will not collapse. The precise scale is accurate, and multiple angles can be positioned (left and right operation, optional).
4.The dust-free sliding table saw has reserved installation holes, making it convenient to make irregular boards.
5.The dust-free sliding table saw has a quick adjustment handle, and the saw head, sub saw, and saw blade adopt "quick adjustment" technology, which can be quickly adjusted through the handle.
6.The main frame of the dust-free sliding table saw is designed with thickened square tubes, professional folding design, and professional full welding treatment.
7.The dust-free sliding table saw has an independent switch and a multifunctional cutting machine. The switch is independent and easy to operate.
8.Dust free sliding table saw with external dust collection bag, easy to create a dust-free environment, safe and environmentally friendly, allowing carpenters to work dust-free.
9.The dust-free sliding table saw adopts a roller design for material cutting, making it more labor-saving to cut large boards. It is easy to move large boards, effortless, and reduces manual operations.
10.The dust-free sliding table saw has strong weighing ability and can easily bear more than 500 pounds. It can weigh large boards and move freely.
2.Dust free sliding table saw equipped with copper core motor, stable performance, high speed, and strong power.
3.The dust-free sliding table saw can cut the board at a 45 ° angle, making it easy to cut the board. It can be adjusted at a 45 ° angle, and the board will not collapse. The precise scale is accurate, and multiple angles can be positioned (left and right operation, optional).
4.The dust-free sliding table saw has reserved installation holes, making it convenient to make irregular boards.
5.The dust-free sliding table saw has a quick adjustment handle, and the saw head, sub saw, and saw blade adopt "quick adjustment" technology, which can be quickly adjusted through the handle.
6.The main frame of the dust-free sliding table saw is designed with thickened square tubes, professional folding design, and professional full welding treatment.
7.The dust-free sliding table saw has an independent switch and a multifunctional cutting machine. The switch is independent and easy to operate.
8.Dust free sliding table saw with external dust collection bag, easy to create a dust-free environment, safe and environmentally friendly, allowing carpenters to work dust-free.
9.The dust-free sliding table saw adopts a roller design for material cutting, making it more labor-saving to cut large boards. It is easy to move large boards, effortless, and reduces manual operations.
10.The dust-free sliding table saw has strong weighing ability and can easily bear more than 500 pounds. It can weigh large boards and move freely.
|
Name
|
Upgraded dust-free sliding table saw
|
|
Supply voltage
|
220V/50HZ
|
|
Total power
|
6.2KW
|
|
Blade size
|
9 inches and 4 inches
|
|
Tilt angle
|
0-45°
|
|
Applicable sheet thickness
|
＜40mm
|
|
Vacuum cleaner
|
550w
|
|
Cutting angle
|
0-180°
|
|
Mesa
|
stainless steel
|
|
Main saws
|
3000w
|
|
Scoring saws
|
2000w
|
|
Table size
|
1630*1000mm
|
|
Guide rail
|
1000*250*50mm
|
|
Unfold the dimensions
|
1820*1900mm
|
|
Folded size
|
2850*1630*800mm
|
|
Saw head size
|
500*300*340mm
|
|
Package size
|
The saw table is 1140*700*500mm/The saw head is 550*350*450mm
|
|
Package weight
|
Saw table: 69kg (Saw head: 22kg)
|
