Quick Details
-
T/W/H:
-
19.5*46*38
-
Rated Voltage:
-
250V
-
Rated Current:
-
16A
-
Section:
-
2.5 mm2
-
Rigid wire:
-
1.0-2.5 mm2
-
Soft wire:
-
1.0-2.5 mm2
-
Screw type:
-
M4
-
Torque:
-
1.2 Nm
-
Stripping Length:
-
10mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SIPUN
-
Model Number:
-
JF5-2.5RD
-
T/W/H:
-
19.5*46*38
-
Rated Voltage:
-
250V
-
Rated Current:
-
16A
-
Section:
-
2.5 mm2
-
Rigid wire:
-
1.0-2.5 mm2
-
Soft wire:
-
1.0-2.5 mm2
-
Screw type:
-
M4
-
Torque:
-
1.2 Nm
-
Stripping Length:
-
10mm

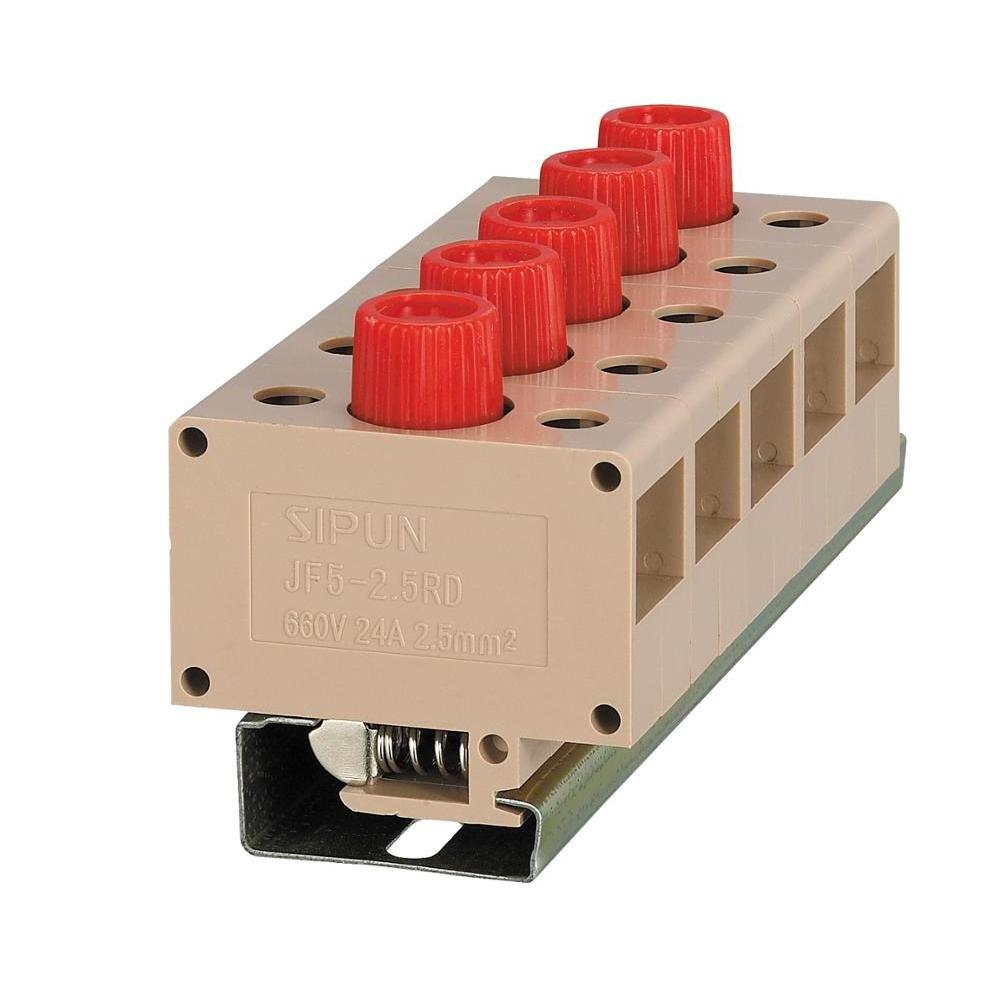

JF5 used the PC material, can pass the 960℃ glow wire experiment. can working in the 120℃ environment.
Wiring
JF5 series can use for TU/TO terminal cable.
Install
Install the dust cap, safety and beauty.
Factory
Workshop
Our Workshop
Office
Our Office
Warehouse
Our Warehouse
Delivery Details : 3-15 days after payment
Packing
Use the 47*31*28 cm carton.
1 carton will be about 15~20KG.
we also can send small box like the photo.
