- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Joneytech
-
Model Number:
-
JYD-8100HY-2.0MP/5.0MP
-
Lens:
-
2.8-12mm vari-focal
-
Resolution:
-
5mp/2mp optional
-
IR Range:
-
30m
-
Power:
-
DC12V
-
Supoort:
-
AHD/CVI/TVI/CVBS mode
-
Level of Protection:
-
IP66
-
Power Supply:
-
DC12V 1A
-
Video Output:
-
BNC 1.0 Vp-p75 Ohm
-
Camera Type:
-
Analog
Quick Details
-
Special Features:
-
NIGHT VISION, Vandal-proof, Motion Detection, Waterproof / Weatherproof
-
Function:
-
NIGHT VISION, Waterproof / Weatherproof, Wide Angle, Vandal-proof
-
Customized support:
-
Customized logo
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Joneytech
-
Model Number:
-
JYD-8100HY-2.0MP/5.0MP
-
Lens:
-
2.8-12mm vari-focal
-
Resolution:
-
5mp/2mp optional
-
IR Range:
-
30m
-
Power:
-
DC12V
-
Supoort:
-
AHD/CVI/TVI/CVBS mode
-
Level of Protection:
-
IP66
-
Power Supply:
-
DC12V 1A
-
Video Output:
-
BNC 1.0 Vp-p75 Ohm
-
Camera Type:
-
Analog
Product Description

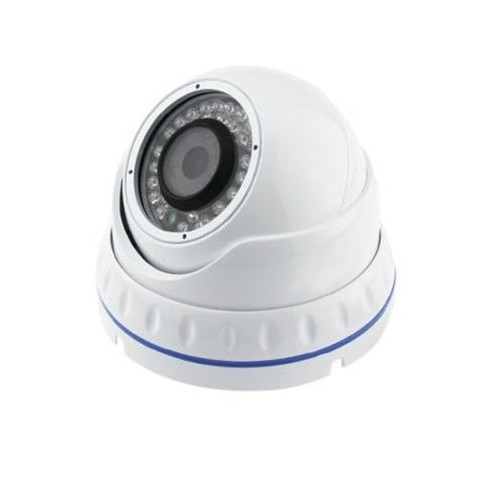

Vandalproof Metal Dome Camera(Fixed Lens)
- IP66 Waterproof Metal Dome Camera
- Lens: 2.8-12mm manual vari-focal lens
- IR LED: 36 x F5 IR LED
- IR Range: >3 0m
- Waterproof IP6 6
|
Model
|
JYD-8100HY-5.0MP
|
|
Image Sensor
|
IMX326+FH 8538M 1/3" OV 5.0 Megapixel CMOS Sensor
|
|
Effective Pixels
|
2592*1944
|
|
Video Frame Rate
|
PAL: 25fps NTSC: 30fps
|
|
Electronic Shutter
|
Auto: PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec
|
|
Synchronization
|
Internal
|
|
Mini. Illumination
|
0.001Lux/F1.2(AGC ON), 0Lux IR on
|
|
Video Output
|
1-channel BNC HD AHD high definition video output
|
|
Camera Features
|
|
|
Max. IR LED Length
|
30m, Smart IR
|
|
IR LED
|
36x F5 IR LED
|
|
Day/Night
|
Auto(ICR) / Color / B/W
|
|
Noise Reduction
|
2D
|
|
Lens
|
|
|
Focal Length
|
2.8-12mm /F2.0
|
|
Lens Type
|
Manual vari-focal lens
|
|
General
|
|
|
Transmission Distance
|
Over 500m via 75-3 coaxial cable
|
|
Power Supply
|
DC12V±10%
|
|
Ingress Protection
|
IP65
|
|
Power Consumption
|
Max 4W
|
|
Working Environment
|
-30°C~+60°C / Less than 95%RH
|
Kit Include
Our Service
.
Our Company
Factory
Our Factory
Workshop
Our Workshop
Packing & Delivery
Packing Details : Carefully packed
Delivery Details : 3-7 working days, 7-15 working days for bulk quantity
Our Certifications
About Joneytech
Our high quality products and prestige enjoy unanimous favorable comment of customers from all walks of life, they sell well in all countries and regions over the world
We won trust and favorable comment from the masses of users deeply
Favorable Comment
Product quality has got unanimous approval and favorable comment of the domestic and international customer
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: We accept Paypal, Western Union or T/T before production.
