Quick Details
-
Model Number:
-
TP03168
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
1200w
-
Cable Length:
-
1.2m
-
Power:
-
1200w
-
Usage:
-
Water
-
Pressure:
-
High Pressure
-
Theory:
-
Jet Pump
-
Quality System:
-
ISO9001:2000
-
Color:
-
Yellow,Red,Blue,Green
-
components:
-
motor,pump body
-
Warranty:
-
1 Year
-
Sample:
-
For free
-
Thermal Protector:
-
Yes
Quick Details
-
Application:
-
Irrigation and Agriculture, Water Distribution
-
Voltage:
-
110v-240v
-
Brand Name:
-
TRUPOW or OEM
-
Model Number:
-
TP03168
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
1200w
-
Cable Length:
-
1.2m
-
Power:
-
1200w
-
Usage:
-
Water
-
Pressure:
-
High Pressure
-
Theory:
-
Jet Pump
-
Quality System:
-
ISO9001:2000
-
Color:
-
Yellow,Red,Blue,Green
-
components:
-
motor,pump body
-
Warranty:
-
1 Year
-
Sample:
-
For free
-
Thermal Protector:
-
Yes

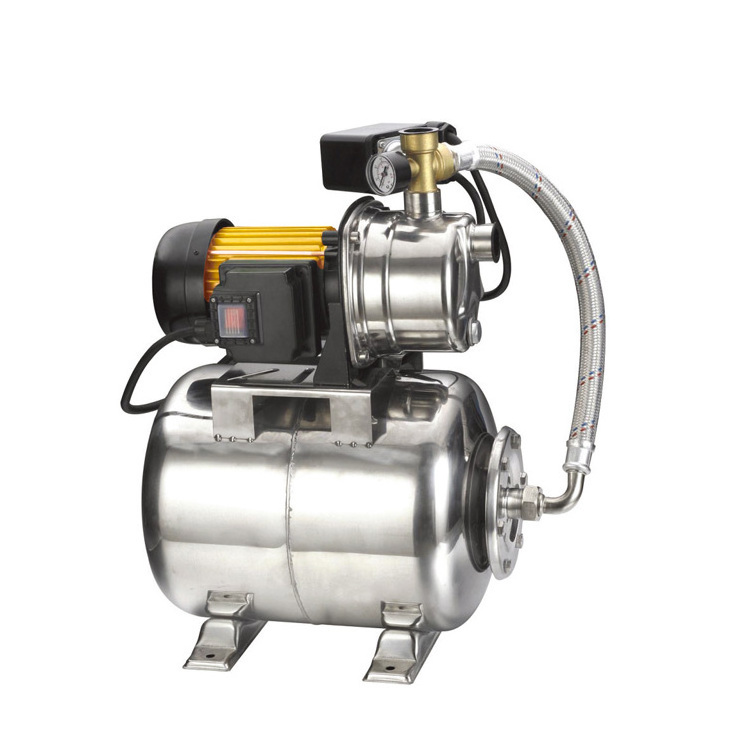

1200w 1.6hp stainless steel shallow well pump booster system with pressure tank
It is ideal for conveyance of clean water . They are very silent and reliable and particularly Suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups.
This pump shall not be used to convey abrasive materials, silt materials, slurry, or other viscous materials, and shall not be suitable for long time continuous operation (e.g. cyclic running in filter of swimming pond or act as industrial equipment).
Features
Build-in overload motor protector with automatic reset
Booster system with pressure tank
Protection IPX4
Pump Head: Stainless steel
Motor Housing: Aluminum
Impeller: PPO, brass if request
Shaft with rotor: 45# Carbon Steel, Stainless steel if request
Pressure Tank: Stainless steel
Liquid temperature: Up to 35 °C
Dry-running of pump shall be prohibited.
Specifications
|
MODEL
|
POWER
(W)
|
MAX HEAD
(M)
|
MAX FLOW
(L/H)
|
MAX SUC. DEPTH
(M)
|
MAX PRE.
(BAR)
|
CABLE AND LENGTH
(M)
|
QTY/20”CTN
(PC)
|
|
TP03165
|
600
|
35
|
2800
|
7
|
2/3
|
H07RN-F3G1.0mm2X1.2m
|
380
|
|
TP03166
|
800
|
40
|
3200
|
8
|
2/3
|
H07RN-F3G1.0mm2X1.2m
|
380
|
|
TP03167
|
1000
|
44
|
3500
|
8
|
2/3
|
H07RN-F3G1.0mm2X1.2m
|
380
|
|
TP03168
|
1200
|
48
|
3800
|
8
|
2.5/4
|
H07RN-F3G1.0mm2X1.2m
|
380
|
