Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Voltage::
-
450/750V
-
Certification::
-
ISO9001,CCC,CE,RoSH
-
Color::
-
Red
Quick Details
-
Application:
-
Heating
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Voltage::
-
450/750V
-
Certification::
-
ISO9001,CCC,CE,RoSH
-
Color::
-
Red

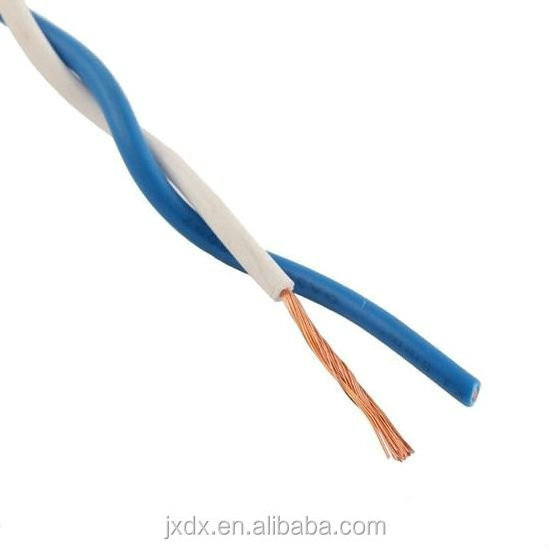

PVC insulated twin flat wire Twisted pair Electric cable wire
| Porduct name | PVC insulated twin flat wire Twisted pair Electric cable wire |
| size(mm²) | 0.5,0.75,1,1.5,2.5,4,6... |
| Insulation Material | PVC:EU RoHS environmental protection and low smoke halogen free material |
| Conductor Material | Anaerobic Copper Wire:Pure 99.99% Copper Conductor |
| Color | black,white,red,green,yellow,grey,blue etc |
| Rated Voltage(V) | 300/500 OR 450/750 |
| Pakege | 100 meter/roll |
| Certificate | CCC,CE,SGS,ISO9001,RoHS |
| Delivery period | 20-40 days,depending on your order quantity and destination |
| Sample service | support |
Twisted pair cabling is a type of wiring in which two conductors of a single circuit are twisted together for the purposes of canceling out electromagnetic interference (EMI) from external sources; for instance, electromagnetic radiation from unshielded twisted pair (UTP) cables, and crosstalk between neighboring pairs.
Model: RVS
Construction:
conductor: single solid copper wire or multi-core stranded copper wire
Insulation&sheath: PVC
Specification:
number of cores*section-area of each core(sq mm)
2×0.50, 2×0.75,2×1,2×1.5,2×2.5,2×4,2×6.
Service Conditions
Working temperature:Not more than 70 o C.
Technical data
PVC insulated PVC sheathed flat wire
|
Type |
Name |
Properties |
|
RVS |
RVS double color dual core PVC insulated Twisted Pair Cable |
In normal case, max. temperature of conductor shall be 70℃ |
T echnical data (RVS)
| Norminal Cross-section(mm²) | Number of wires | Average outer diameter(mm) | Condctor resistance at 20 ℃( ≤ Ω.km) | Ampacity(A) | Weight(kg/km) |
| 2*0.5 | 2*28 |
6 |
39 | 9.5 | 24 |
| 2*0.75 | 2*42 | 6.2 | 26 | 12.5 | 31 |
| 2*1 | 2*56 | 6.5 | 19.5 | 15 | 33.6 |
| 2*1.5 | 2*84 | 7.5 | 13.3 | 19 | 42.6 |
| 2*2.5 | 2*133 | 8.5 | 7.98 | 26 | 68 |
| 2*4 | 2*140 | 10.1 | 4.95 | 36 | 100 |
| 2*6 | 2*210 | 12.4 | 3.3 | 47 | 144 |
If you are not sure where it is what you need,you need our support.
package 1:2+4+5
package 2:1+5
package 3:3+5
package 4:6 (this package is use for big size cable.)
Which package as you wish.
| Model specification | Weight (kg / 100 meters) | Packing box size(mm) |
| 1.5mm² | 9.1 | 270*270*100 |
| 2.5mm² | 11.25 | 280*280*100 |
| 4mm² | 15.85 | 300*300*100 |
| 6mm² | 22 | 340*340*100 |
Similar Products
Application
The products is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.
