Quick Details
-
Key words:
-
decorative ceiling air conditioning duct diffusers
-
Material:
-
Aluminum / Plastic
-
Material thickness:
-
1.0mm thick
-
Surface finish:
-
Surface finish
-
Standard color:
-
Ral9016 / 9010
-
Any color:
-
Available
-
OEM & ODM:
-
Welcome
-
Sample:
-
Freely provided
-
characteristic:
-
Stamping cope
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vairtech
-
Model Number:
-
RD-A1
-
Key words:
-
decorative ceiling air conditioning duct diffusers
-
Material:
-
Aluminum / Plastic
-
Material thickness:
-
1.0mm thick
-
Surface finish:
-
Surface finish
-
Standard color:
-
Ral9016 / 9010
-
Any color:
-
Available
-
OEM & ODM:
-
Welcome
-
Sample:
-
Freely provided
-
characteristic:
-
Stamping cope

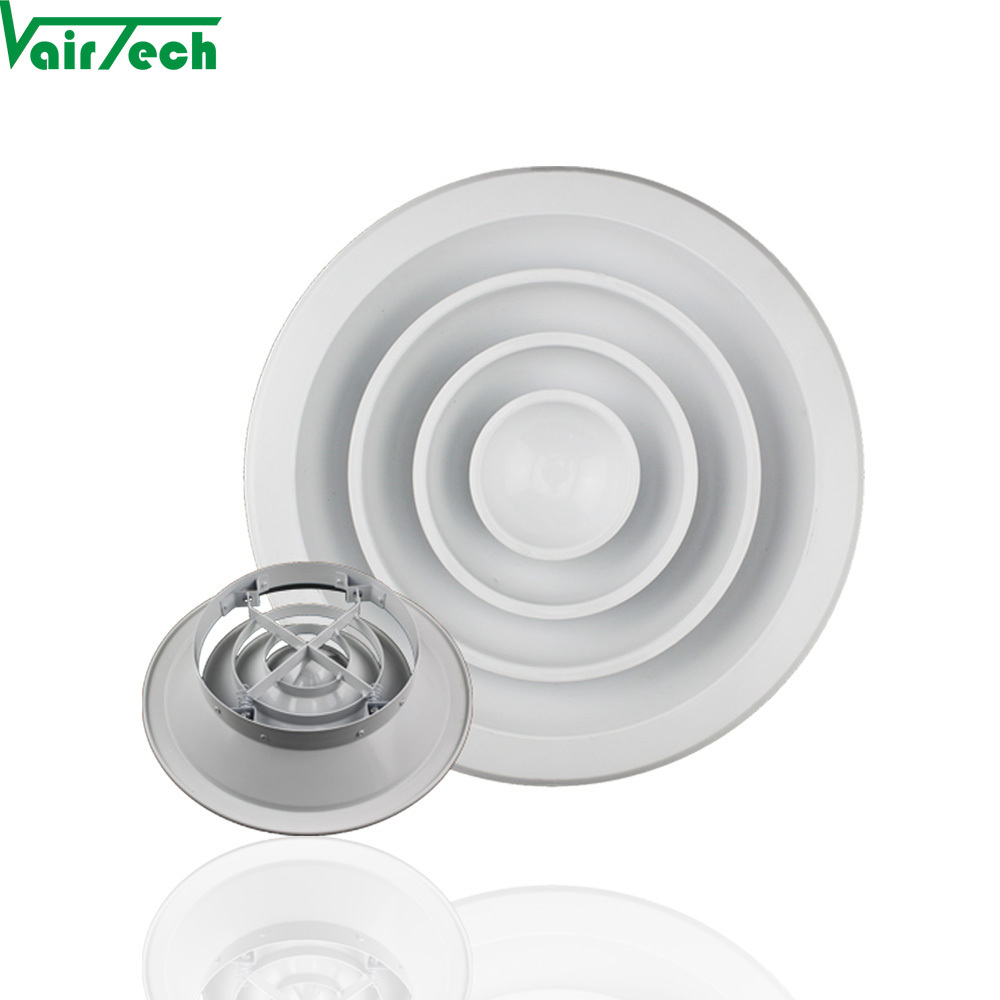

factory production decorative ceiling air conditioning duct round diffusers
Vairtech air diffuser is a device that is designed to provide uniform air flow throughout a room. It works to increase the efficiency of air conditioning units by dividing and distributing cooled air. When an even airflow is maintained, drafts and hotspots in a room are eliminated, providing greater comfort to occupants, while increasing energy efficiency.
Construction:
- Frame & Inner Core:: High quality extruded aluminum alloy(A6063) sheet.
Description:
- The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
- The inner core fixed centrally to the frame. Inner core can be easily removed and fixed by one side with aluminum pin and the other with steel spring. This removable structure provides easy installation, maintenance and access to the duct.
- Discharge pattern can be adjusted for horizontal flow by extending the cones and for vertical flow by retracting the cones.
- It can be used for ceiling or exposed duct mounting especially in installation when an adjustable pattern is required.
Surface Finish:
- Powder coated color finish as per RAL color---- standard color: RAL9016, 9010
- Natural anodized aluminum finish
Material thickness:
- 1.2mm
Accessory:
-
OBD-R (Radial damper)
-
OBD-B (Butterfly damper)
Size:
- Any size available
- Over face size= Neck size +150mm
|
Item code |
Neck Size=A(mm) |
Face Size=C(mm) |
M (mm) |
|
RD-A1-80 |
80 |
230 |
170 |
|
RD-A1-100 |
100 |
250 |
190 |
|
RD-A1-150 |
150 |
300 |
240 |
|
RD-A1-230 |
230 |
380 |
320 |
|
RD-A1-250 |
250 |
400 |
340 |
|
RD-A1-300 |
300 |
450 |
390 |
|
RD-A1-350 |
350 |
500 |
440 |
|
RD-A1-380 |
380 |
530 |
470 |
|
RD-A1-450 |
450 |
600 |
540 |
|
RD-A1-500 |
500 |
650 |
590 |
