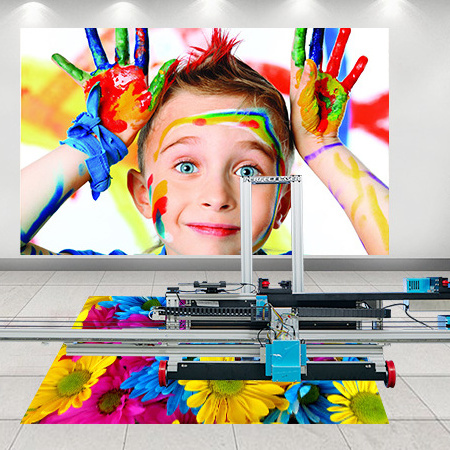

Perfect Laser - 3D Floor Printer New Arrivals Business 9600 dpi UV Parking Space Floor Painting Machine for Floor Graffiti

Product Name

Floor Ground Painting Machine

Model

PE-S20

PE-S20-UV

PE-S30

Data Transmission Method

Usb2.0/3.0/Bluetooth/Wireless Control (Optional)

Ultrasonic Sensor

Double

Host Size

2820mm*535mm*390mm

Highest Painting Accuracy

9600dpi

Ink Consumption Per Square

6-10ML

Print Head Model

Epson Print Head (Industrial Grade)

X Axis Folding

Optional

Print Head Guard

Have

Head Ink Tank

Can Be Split And Transported Separately

Painting Direction

Horizontal

X Axis Guide

2820mm

Y Axis Guide

Wheeled

Z Axis Guide

170mm

Display Screen

11.6-Inch Touch Panel

X Axis Effective Stroke

2500mm

Print Head Cleaning

One-Key Automatic

Ink Tank Capacity

400Ml

The Fastest Painting Speed

32㎡/h

32㎡/h

64㎡/h

Motherboard Configuration

6-Core CPU, 2Gbddr Memory

6-Core CPU, 2Gbddr Memory

8-Core CPU, 4Gbddr Memory

Total Body Weight

35kg

35kg

38kg

Power-Off Endurance Time

10 Hours

10 Hours

12hours

Uv Curing Lamp

No

Have

Have

White Ink painting

No

No

Have

Certification

Green Environmental Protection Certification, National Standard Testing Qualified (Gb18582-2001, Gbt9756-2001), Ce Certification

Power Supply

Ac110V (90-132V)/Ac220V (Ac180-264V) , 47-63Hz

Power Consumption

No Load 20W, Generally 75W, Up To 250W

Noise

Standby <20dba, Drawing <50dba

Construction Temperature

-10°C-60°C (14°F-140°F) 10%-80% Relative Humidity, Non-Condensing

Storage Temperature

-30℃-60℃（-22°F-140°F) 10%-80% Relative Humidity, Non-Condensing

Language Switch

Chinese And English (Customizable)

System Platform

Windows XP / Win7 / Win8 / Win10

Flash Spray Test

Touch

Inkjet Test

Touch

Automatic Nozzle Avoidance

Have

Turn Left And Right

Have

Print White

Optional

Painted Mode

Two-Way

Gallery Type

Beautifully Printed Gallery Book + Mobile Hard Disk

Picture Processing

AI Intelligent Image Processing

Automatically Block Large Images

Unlimited Height/Width Size Of Painted Pictures

Interrupt Automatic Marking

Have

Auto-Complement

Have

Quiet Zone Calibration

Have

Step Calibration

Have

Nozzle Buffer

Have

Spray Distance

0.5-2.0cm

Ink Supply Method

Negative Pressure Automatic Ink Supply

Color Processing

Automatic Color Matching

Painted Medium

All Floor

Integrated Voltage Regulator

Have

Laser Positioning

Have

Magnetic Limit

Have

Automatic White Jump

Have

Battery Life

Have

Picture On Demand

Have

Water-Based Ink (Single Head)
Fabrication Processing

1. Ground surface must be able to capture ink and be processed into white.
2. A bottle of white base coat will be leaving the factory together with the machine. Ink printing cannot be implemented before
the white base coat dries up.
3. Finish-coat printing should be made after the whole picture is finished. It will take around one hour to dry up. When the work
dries up after four hours,the process is completed. This machine represents a highly cost effective choice.

UV Ink (Single Head)
Fabrication Processing

1. The ground must be processed into white. The UV curing light of the machine can assure the picture to dry up upon printing, so
there is no need to wait.
2. A bottle of white base coat will be leaving the factory together with the machine. Ink printing cannot be implemented before
the white base coat dries up.
3. Finish-coat printing should be made after the whole picture is finished.

White Color+UV (Double Head)
Fabrication Processing

There is no need to process the ground surface into white, a layer of transparent paint should be printed instead. This machine is
able to print white and color pictures at the same time. The UV curing light of the machine can assure the picture to dry up upon
printing, so there is no need to wait. Finish-coat printing should be made after the whole picture is finished.
