160mm swivel nylon castor European type industrial caster 200kgs heavy duty nylon plastic wheel castors
160mm swivel nylon castor European type industrial caster 200kgs heavy duty nylon plastic wheel castors
160mm swivel nylon castor European type industrial caster 200kgs heavy duty nylon plastic wheel castors
160mm swivel nylon castor European type industrial caster 200kgs heavy duty nylon plastic wheel castors
160mm swivel nylon castor European type industrial caster 200kgs heavy duty nylon plastic wheel castors
160mm swivel nylon castor European type industrial caster 200kgs heavy duty nylon plastic wheel castors
160mm swivel nylon castor European type industrial caster 200kgs heavy duty nylon plastic wheel castors
160mm swivel nylon castor European type industrial caster 200kgs heavy duty nylon plastic wheel castors

160mm swivel nylon castor European type industrial caster 200kgs heavy duty nylon plastic wheel castors

FOB Reference Price: Get Latest Price
≥500 Pieces
US $6.46
≥1000 Pieces
US $5.98
≥3000 Pieces
US $5.7
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Hubei, China
Color:
White
Bearing:
Roller bearing
Wheel diameter:
80-200mm
Usage:
Industrial Machinery
Application:
Industrial Equipment
Load Capacity:
100-310kgs
Surface treatment:
white zinc plating

Quick Details

Material:
Nylon, Steel
Type:
Plate Casters
Model Number:
P102-20D160x40
Place of Origin:
Hubei, China
Color:
White
Bearing:
Roller bearing
Wheel diameter:
80-200mm
Usage:
Industrial Machinery
Application:
Industrial Equipment
Load Capacity:
100-310kgs
Surface treatment:
white zinc plating
Products Descriptipon

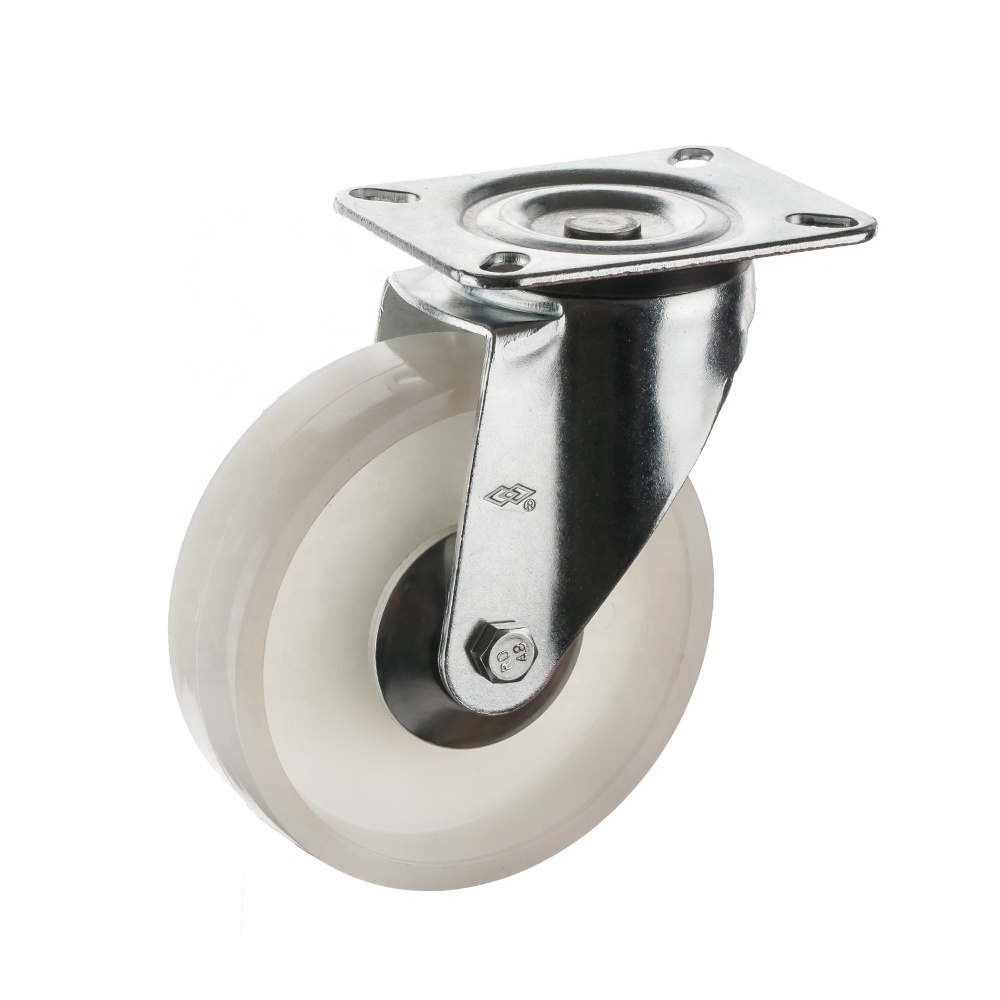

160mm swivel nylon castor European type industrial caster 200kgs heavy duty nylon plastic wheel castors
Brand
Double Rhombus
Series
Industrial Caster
Model No.
P102-20D160x40
Load Capacity(kgs)
200kgs
Wheel diameter(mm)
160mm
Width of Tread(mm)
40mm
Offset(mm)
68mm
Hole size(mm)
11mm
Overall height(mm)
197mm
Size of plate(mm)
135x105x3mm
Bearing
roller bearing
Bolt hole spacing(mm)
105x80mm

Walking Performance Test

Test standard according to EN12532, the rubber industrial caster sample with 120kg load, 2.5mm barriers, walking 3 minutes, stop 1 minute, with 4km/h speed,
go over the barriers for 500 times, then remove the barriers, continue to walking 3.962km, the nylon wheel need to walk total 4.712kms,
after testing, sample no abrasive wear, the wheel is qualified.



The brake version pass 5000 times Brake Fatigue Test
Long service life period

Test standard according to EN12532, the rubber industrial castor Pa ss 5000 times Fatigue Test for Locking Device.

Up to 5000 brake applications
High cost performance



Impact Test
the test sample with s pecified weight pressure,from 150mm height to impact 1 time,request the test sample no deformation of parts, flexible rotation,brake is valid.
Thickened presed steel fork Caster wheel , 80-200mm size,100-310kgs load range
Various wheel styles available, 3 different bearing modes for choose
High quality nylon caster , Multiple configurations are optional
Fork optional: Rigid, swivel, brake, top plate, top bolt hole type, 2/2.5/3/mm fork thickness for different size, wheel material can choose Rubber, Nylon/PP, PU,TPR wheel
Application- widely use 80-200mm white nylon wheel industrial caster
