Quick Details
-
Voltage:
-
220/380V
-
Power:
-
14.5KW
-
Dimension(L*W*H):
-
6700*4100*2350mm
-
Weight:
-
19000 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-

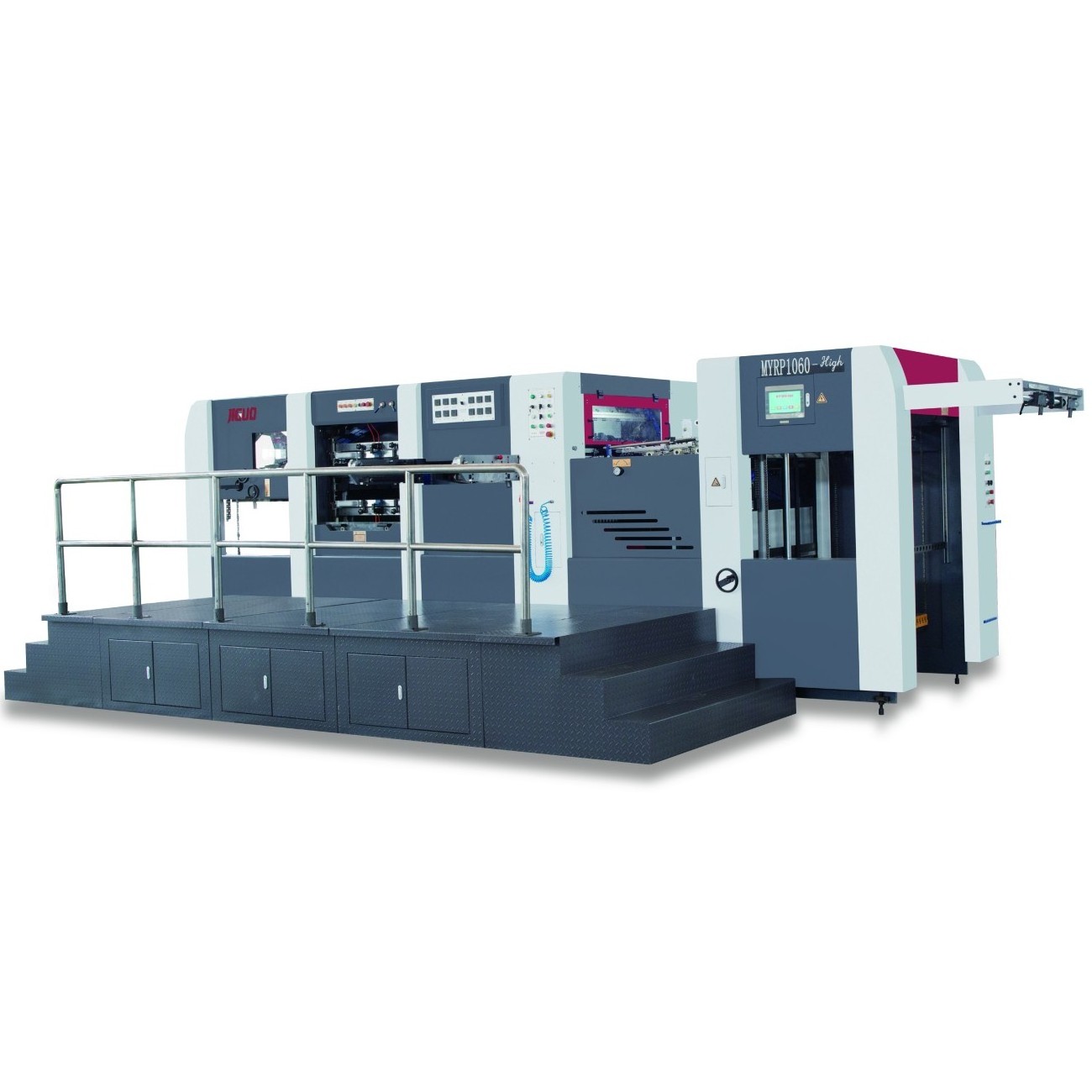

MYR-1060 Deep Plate Automatic Die Cutting Hot Embossing Machine
-
Max Paper size:
-
1070*770mm
-
Max Die cutting size:
-
1040*750 mm
-
Min Paper size:
-
400*360 mm
-
Speed:
-
6500s/h
-
Function:
-
Die cutting with embossing function
-
Machine type:
-
Automatic die cutting and embossing machine
-
After Warranty Service:
-
1 Year
-
Sheet Thickness:
-
0.1-4 mm
-
Model:
-
jigsaw puzzle die cutting machine
Quick Details
-
Production Capacity:
-
100 pcs/min
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIGUO
-
Voltage:
-
220/380V
-
Power:
-
14.5KW
-
Dimension(L*W*H):
-
6700*4100*2350mm
-
Weight:
-
19000 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
MYR-1060 Deep Plate Automatic Die Cutting Hot Embossing Machine
-
Max Paper size:
-
1070*770mm
-
Max Die cutting size:
-
1040*750 mm
-
Min Paper size:
-
400*360 mm
-
Speed:
-
6500s/h
-
Function:
-
Die cutting with embossing function
-
Machine type:
-
Automatic die cutting and embossing machine
-
After Warranty Service:
-
1 Year
-
Sheet Thickness:
-
0.1-4 mm
-
Model:
-
jigsaw puzzle die cutting machine
Product Description
Automatic die-cutting & creasing machine is the key device for the production of cartons, paper boxes and high standard paper products, etc. It is especially applicable to the automatic die-cutting and stripping of complicated paper boxes and cigarette cases to rationalize the production of paper boxes. This machine is integrally assembled, transported and mounted, it can be put into operated in one day, and thus the cost is reduced.
In order to meet customer high end packaging demand. we developed embossing machine with 600 tons 900 tons pressure. For luxury packaging,wine packaging,
jigsaw puzzle process etc.
Products
Finished products by automatic die cutting and embossing machine .
Specification
|
Model
|
MYR-1060High
|
|
Max.paper size
|
1070×770mm
|
|
Min.paper size
|
380×340mm
|
|
Max.cutting size
|
1040×750mm
|
|
Max.die cutting speed
|
7000s/h
|
|
Max. Hot embossing speed
|
5500s/h
|
|
Min. Gripper Edge
|
8mm
|
|
Sheet thickness
|
Cardboard:0.1-4mm(80-2000gsm);
Corrugated board: ≤4mm |
|
Accurate
|
±0.12mm
|
|
Max.pressure
|
600 Tons
|
|
Stamping Tempreture
|
20-199℃
|
|
Heating Plate Zone Number
|
12
|
|
Max. Feeding Pile
|
1600mm
|
|
Max. Delivery Pile
|
1400mm
|
|
Total power
|
48Kw
|
|
Net weight
|
19.8 Tons
|
|
Air requirement
|
0.8Mpa,＞0.36m³/min
|
|
Overall dimension
|
6700×4100×2350mm
|
