Quick Details
-
Voltage:
-
220V or 380V
-
Dimension(L*W*H):
-
2355*960*2090mm
-
Motor Power (kW):
-
7.5
-
Weight (T):
-
4.5
-
Machine Type:
-
Punching Machine
-
Max cutting thickness(mm):
-
25
-
Plate strength(N/mm2):
-
≤450
-
Cutting angle:
-
8°
-
Cuttings size of one stroke:
-
25*330,16*600
-
Number of strokes/min:
-
6
-
Throat depth(mm):
-
400
-
Punching thickness(mm):
-
25
-
Max punching diameter(mm):
-
35
-
Item:
-
punching q35-16 40 ton q35y-40 cnc hydraulic ironworker machine
Quick Details
-
Nominal Force (kN):
-
110
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BLMA
-
Voltage:
-
220V or 380V
-
Dimension(L*W*H):
-
2355*960*2090mm
-
Motor Power (kW):
-
7.5
-
Weight (T):
-
4.5
-
Machine Type:
-
Punching Machine
-
Max cutting thickness(mm):
-
25
-
Plate strength(N/mm2):
-
≤450
-
Cutting angle:
-
8°
-
Cuttings size of one stroke:
-
25*330,16*600
-
Number of strokes/min:
-
6
-
Throat depth(mm):
-
400
-
Punching thickness(mm):
-
25
-
Max punching diameter(mm):
-
35
-
Item:
-
punching q35-16 40 ton q35y-40 cnc hydraulic ironworker machine

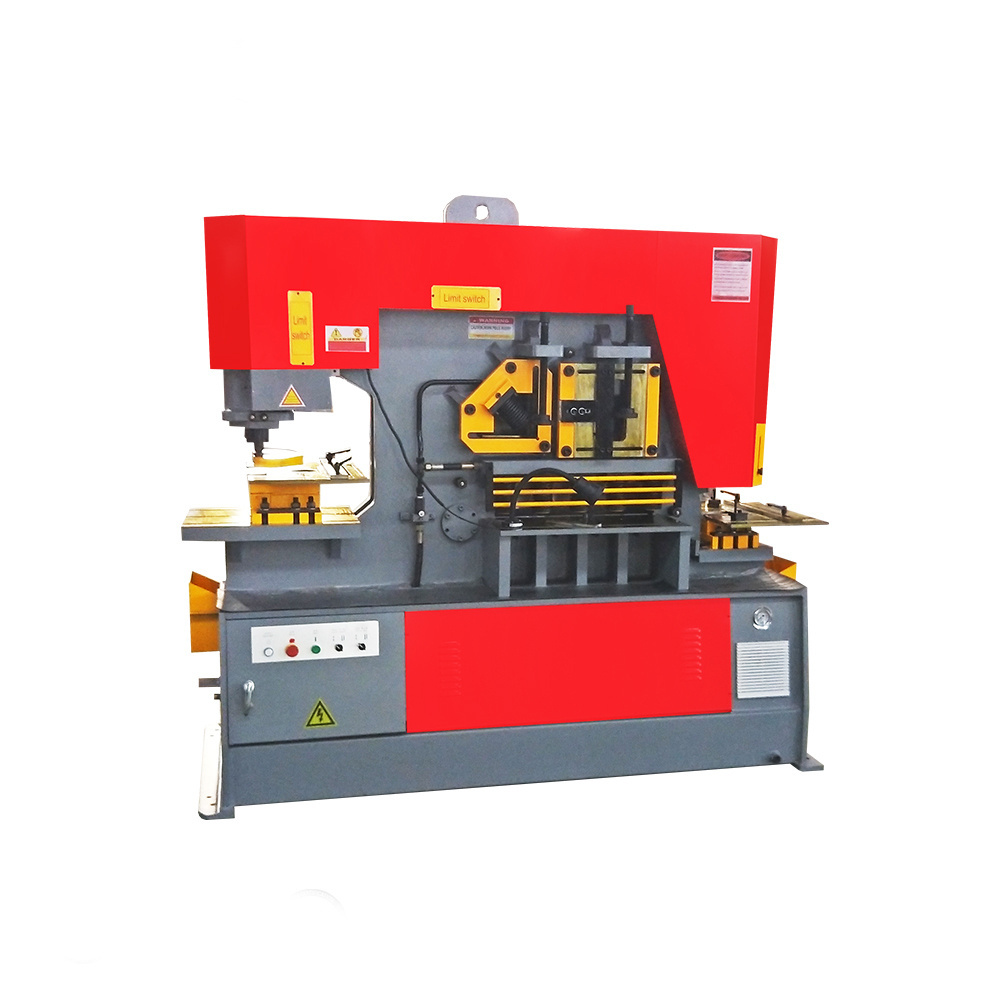

Iron worker shearing and punching q35-16 40 ton q35y-40 cnc hydraulic ironworker machine
Q35Y Series hydraulic combined punching&shearing machine can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on.
Specification
|
Model
|
|
Q35Y-25
|
|
|
Pressure
|
Ton
|
120
|
|
|
Max.cutting thickness
|
mm
|
25
|
|
|
Plate strength
|
N/mm
|
450
|
|
|
Cutting angle
|
degree
|
8
|
|
|
Cutting size of one stroke
|
mm
|
25x330 16x600
|
|
|
Ram stroks
|
mm
|
80
|
|
|
Number of strokes
|
cpm
|
6
|
|
|
Throat depth
|
mm
|
400
|
|
|
Punching thickness
|
mm
|
25
|
|
|
Max. Punching diameter
|
mm
|
35
|
|
|
Power of main motor
|
kw
|
7.5
|
|
|
Overall dimensions LxWxH
|
mm
|
2355x1040x2090
|
|
|
Weight of machine
|
kg
|
4800
|
|
Product Description
Punching
BLMA can provide different size of punched and dies are available, operator can also choose different types
Notching
Position ruler on the worktable can help operator to get different sizes slots.
Bending (Optional)
Bending function shares the same position with punching function. It can bend same work pieces into different angles or shapes. It can be used as a small press brake machine.
Angle cutting
The ironworker can cut any size of angle steel which length is within the max capacity.The hydraulic angle steel fixing device is optional.
Flat cutting
Positioning ruler on the worktable can control the cutting shape and cutting length with higher accuracy. The ironworker can cut small flat sheets. This function is same with shearing machine.
