Quick Details
-
Application:
-
Metal tube and pipe
-
Keyword:
-
Tube shrinking-end machine
-
Die nos:
-
6 dies
-
Machine power:
-
15kw-4N
-
Dimension:
-
1800*1200*2000
-
Weight:
-
2500kg
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Fangrong
-
Product name:
-

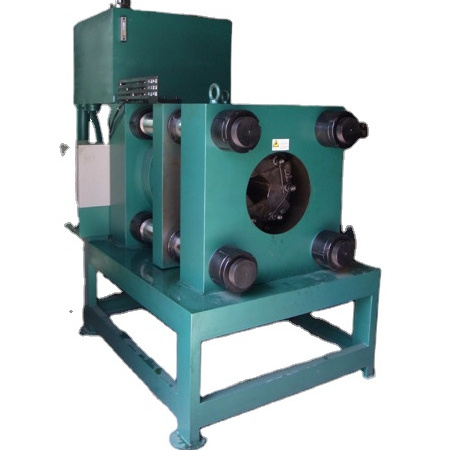

Metal steel pipe swaging machine
-
Application:
-
Metal tube and pipe
-
Keyword:
-
Tube shrinking-end machine
-
Die nos:
-
6 dies
-
Machine power:
-
15kw-4N
-
Dimension:
-
1800*1200*2000
-
Weight:
-
2500kg
Products Description
Cold Drawing Machine
High Speed drawing machine is suitable for aluminum bar,copper bar and iron bar,which is the professional equipment for drawing-based steel mills, steel plants, the standard factory and other machinery industries.
Right elevation
Sample elevation
Front elevation
|
Model
|
FR-40
|
FR-80
|
FR-120
|
|
Shrinking diameter
|
6-40mm*T2.0mm
|
10-80mm*T2.0mm
|
20-120mm*T4.0mm
|
|
Die nos
|
6 dies
|
6 dies
|
6 dies
|
|
Nominal pressure
|
1000KN
|
1500KN
|
3000KN
|
|
Mould Length
|
100mm
|
150mm
|
230mm
|
|
Motor
|
5.5kw
|
7.5KW
|
15KW
|
|
System pressure
|
21mpa
|
21mpa
|
21mpa
|
|
Weight(reference)
|
1200kg
|
2000kg
|
3000kg
|
|
Dimension(L*W*H)
|
1200*600*900mm
|
1200*800*1350mm
|
1800*1200*2000mm
|
