Quick Details
-
Brand Name:
-
SZSSTH
-
Model Number:
-
60A
-
Work Time (h):
-
24 hours
-
Max PV Power:
-
13800W
-
Max PV Voltage:
-
230V
-
Certificate:
-
CE ROHS
-
Warranty:
-
1 Year
-
Prodct name:
-
MPPT Solar Charge Controller Module MPPT Charge Controller 48V
-
Battery type:
-
Lead Acid,Gel,Lifepo4,Li-ion,USER
-
Charge Method:
-
MPPT tracks maximum power,fast charge,balanced charge,and float charge
-
Charge mode:
-
MPPT automatic maximum power tracking
-
PV maximum open circuit input voltage:
-
0-230V
-
DC Voltage:
-
12V/24V/36V/48V/60V/72V/84V/96V automatic
-
Protection Level:
-
IP 21
-
Charge Current:
-
30A 40A 50A 60A for your choose
-
Altitude:
-
0~3000m
-
Working Temperature( C):
-
-20- 40
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZSSTH
-
Model Number:
-
60A
-
Work Time (h):
-
24 hours
-
Max PV Power:
-
13800W
-
Max PV Voltage:
-
230V
-
Certificate:
-
CE ROHS
-
Warranty:
-
1 Year
-
Prodct name:
-
MPPT Solar Charge Controller Module MPPT Charge Controller 48V
-
Battery type:
-
Lead Acid,Gel,Lifepo4,Li-ion,USER
-
Charge Method:
-
MPPT tracks maximum power,fast charge,balanced charge,and float charge
-
Charge mode:
-
MPPT automatic maximum power tracking
-
PV maximum open circuit input voltage:
-
0-230V
-
DC Voltage:
-
12V/24V/36V/48V/60V/72V/84V/96V automatic
-
Protection Level:
-
IP 21
-
Charge Current:
-
30A 40A 50A 60A for your choose
-
Altitude:
-
0~3000m
-
Working Temperature( C):
-
-20- 40
Product Description

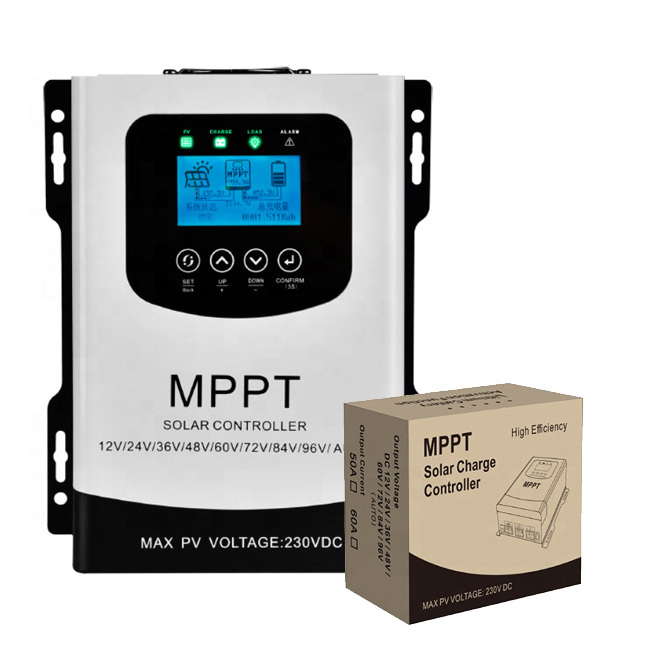

12V-96V Voltage Regulator 30A 40A 50a 60A MPPT Solar Charge Controller Module MPPT Charge Controller 48V
Thank you for choosing the new generation of MPPT controller produced by our company. It is a product developed according to the latest technology, representing the latest level of photovoltaic technology development, and has many excellent performances.
Basic function:
1.Innovative maximum power point tracking technology can significantly improve the energy utilization rate of the solar system,with a conversion efficiency of up to 97%;
2.Quickly scan the entire I-V curve, and efficiently track the maximum power point; Three types of lead-acid batteries, sealed,colloidal, and open type, and lithium battery series are optional;
3.With automatic protection of overcharge, overdischarge, overload and short circuit;
RS485 communication interface, multi-machine communication communication is possible, which is convenient for viewing the operating parameters of the controller;
Feature of our MPPT solar charge controller:
This controller is used in solar off-grid power generation systems to automatically adjust battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery; at the same time, its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage. The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance. Its comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures. Although the controller is easy to operate and use, in order to enable you to better use all the functions of the controller and improve your photovoltaic system, please read the instructions and instructions in this manual carefully.
Basic function:
1.Innovative maximum power point tracking technology can significantly improve the energy utilization rate of the solar system,with a conversion efficiency of up to 97%;
2.Quickly scan the entire I-V curve, and efficiently track the maximum power point; Three types of lead-acid batteries, sealed,colloidal, and open type, and lithium battery series are optional;
3.With automatic protection of overcharge, overdischarge, overload and short circuit;
RS485 communication interface, multi-machine communication communication is possible, which is convenient for viewing the operating parameters of the controller;
Feature of our MPPT solar charge controller:
This controller is used in solar off-grid power generation systems to automatically adjust battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery; at the same time, its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage. The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance. Its comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures. Although the controller is easy to operate and use, in order to enable you to better use all the functions of the controller and improve your photovoltaic system, please read the instructions and instructions in this manual carefully.
Advantage:
1. Automatically adjust battery charging and discharging, battery voltage from 12V to 96V,
2. Own advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery;
3. Its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage. The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance.
4. MPPT solar charge controller have comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures.
2. Own advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery;
3. Its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage. The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance.
4. MPPT solar charge controller have comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures.
Details Images
Specification
|
Brand Name
|
SZSSTH
|
|
Model Number
|
60A
|
|
Type
|
MPPT
|
|
Application
|
Charger Controller, Solar Working Station, Solar System Controller
|
|
Work Time (h)
|
24 hours
|
|
Max PV Power
|
13800W
|
|
Certificate
|
CE ROHS
|
|
Warranty
|
1 Year
|
|
Battery type
|
Lead Acid,Gel,Lifepo4,Li-ion,USER
|
|
Charge Method
|
MPPT tracks maximum power,fast charge,balanced charge,and float charge
|
|
Charge mode
|
MPPT automatic maximum power tracking
|
|
PV maximum open circuit input voltage
|
0-230V
|
|
DC Voltage
|
12V/24V/36V/48V/60V/72V/84V/96V automatic
|
|
Protection Level
|
IP 21
|
|
Charge Current
|
30A 40A 50A 60A for your choose
|
|
Altitude
|
0~3000m
|
|
Working Temperature( C)
|
-20- 40
|
