Quick Details
-
Brand Name:
-
Mac
-
Model Number:
-
M12500-2/M12500-3
-
Voltage(V):
-
24/36/48V
-
Output Power:
-
200-1000W
-
Torque:
-
1.5-5N.m
-
Features:
-
High efficiency, Small and light with higher power, Low noise
Quick Details
-
Speed(RPM):
-
2000-4000rpm
-
Continuous Current(A):
-
10-35A
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Mac
-
Model Number:
-
M12500-2/M12500-3
-
Voltage(V):
-
24/36/48V
-
Output Power:
-
200-1000W
-
Torque:
-
1.5-5N.m
-
Features:
-
High efficiency, Small and light with higher power, Low noise
Brief
Keyword: Mac 2hp dc electric motor , 2hp brushless dc motor 3000rpm

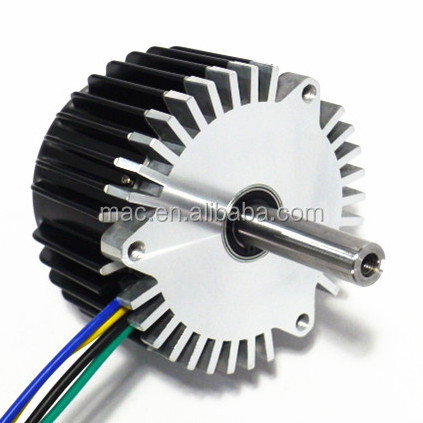

This motor has high efficiency and high speed. It can be used for pump, industrial equipment, electirc lawn mower, e-bike, scooter and electric motorcycle. It is a High Performance Brushless DC Motor with patent.
Motor Spec.:
|
Modle |
M12500-2 |
M12500-3 |
|
Rated Power(W) |
300/450/600 |
600/750/1000 |
|
Rated Voltage(V) |
24/36/48 |
24/36/48 |
|
Speed Range(rpm) |
2000-3500 |
2000-3500 |
|
Effeciency(%) |
>80 |
>80 |
|
Noise(dB) |
<65 |
<65 |
|
Weight(kg) |
1.6 |
2.5 |
|
Usage |
e-bike,e-scooter, textile machinery and medical equipment etc |
e-bike,e-scooter, textile machinery and medical equipment etc |
Features
(1). High efficiency
(2). Smaller size with higher power
(3). Cordless means convenience
(4). Low noise
(5). Green products, Environmental protection.
(6). Long life, Free maintenance
The outline of this product:
(If you download this picture, it will be clear.)
The performance data of this product:
(If you download this picture, it will be clear.)
The performance curve of this product:
(If you download this picture, it will be clear.)
MAC offers the best price-to-performance ratio in the market. We take pride in our products and back them up with good customer service. Our Engineering team is constantly working on developing and improving our products and we have a Western Sales Manager so there are absolutely no problems with communications in English. The Management team and Key Engineering members also have a good level of English, so doing with Business with us will be easy. We are located in Pudong, only about 45mins taxi from Pudong International Airport.
We are now seeking International Distributors for our Products. If you require good quality and high performance at a reasonable price I’m sure we can meet/exceed your requirements. If you want the cheapest and barely adequate products, we may not be the right choice for you.
Thank you!
