Quick Details
-
Dimension(L*W*H):
-
10600x3200x4230mm
-
Year:
-
2023
-
Power (kW):
-
33000 kW
-
Weight (KG):
-
15 KG
-
Total Pressure (MN):
-
74.6
-
Platen Size(mm):
-
2200x10600
-
Daylight (mm):
-
350
-
Working Layer:
-
1
-
Piston Stroke (mm):
-
350
-
Heating way:
-
Steam or oil
-
Platen Unit Area Pressure (kg/cm2):
-
32
-
Control Way:
-
PLC
-
Keywords:
-
Conveyor belt vulcanizing press
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Everfine
-
Voltage:
-
220v, 380v, 415v, 440v, 460v, 480v, ect.
-
Dimension(L*W*H):
-
10600x3200x4230mm
-
Year:
-
2023
-
Power (kW):
-
33000 kW
-
Weight (KG):
-
15 KG
-
Total Pressure (MN):
-
74.6
-
Platen Size(mm):
-
2200x10600
-
Daylight (mm):
-
350
-
Working Layer:
-
1
-
Piston Stroke (mm):
-
350
-
Heating way:
-
Steam or oil
-
Platen Unit Area Pressure (kg/cm2):
-
32
-
Control Way:
-
PLC
-
Keywords:
-
Conveyor belt vulcanizing press
Conveyor belt producing equipment rubber conveyor belts making machine

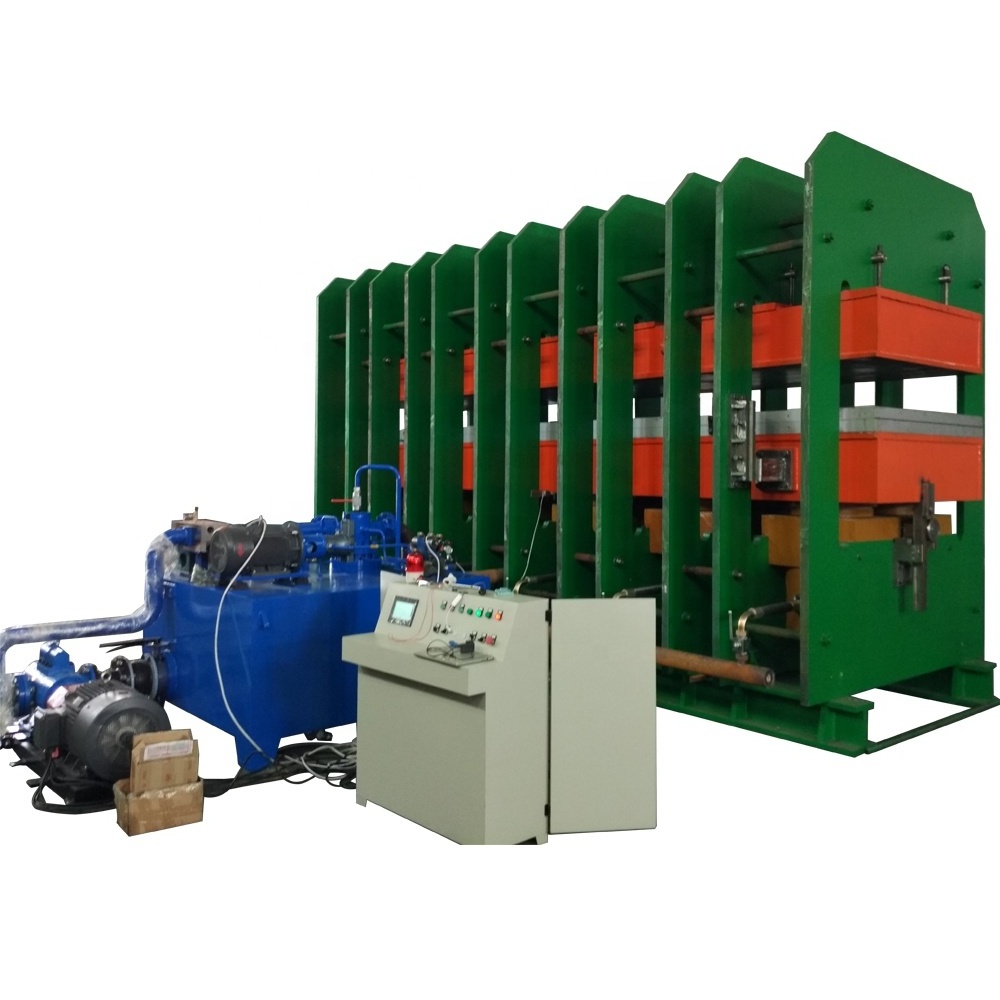

Conveyor belt vulcanizing press machine is mainly used for vulcanizing ordinary rubber belt, such as nylon belt, PVG belt and other belts with textile core structure. It also can produce rubber sheet continuously.
Main product parameters
|
Model |
XLB-Q1400X5700 |
XLB-Q1400X10000 |
XLB-Q1600X10000 |
XLB-Q1800X12600 |
XLB-Q2000X10000 |
XLB-Q2200X10600 |
XLB-Q2400X10000 |
|
Total Pressure |
28mn |
49mn |
56mn |
68mn |
60mn |
74.6mn |
76.8mn |
|
Platen Size (mm) |
1400x5700 |
1400x10000 |
1600X10000 |
1800x12600 |
2000x10000 |
2200x10600 |
2400x10000 |
|
Daylight |
300mm |
300mm |
300mm |
300mm |
350mm |
350mm |
350mm |
|
Working Layer |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Piston Stroke |
300mm |
300mm |
300mm |
300mm |
350mm |
350mm |
350mm |
|
Heating way |
Steam or oil |
Steam or oil |
Steam or oil |
Steam or oil |
Steam or oil |
Steam or oil |
Steam or oil |
|
Platen Unit Area Pressure |
35kg/cm² |
35kg/cm² |
35kg/cm² |
30kg/cm² |
30kg/cm² |
32kg/cm² |
32kg/cm² |
