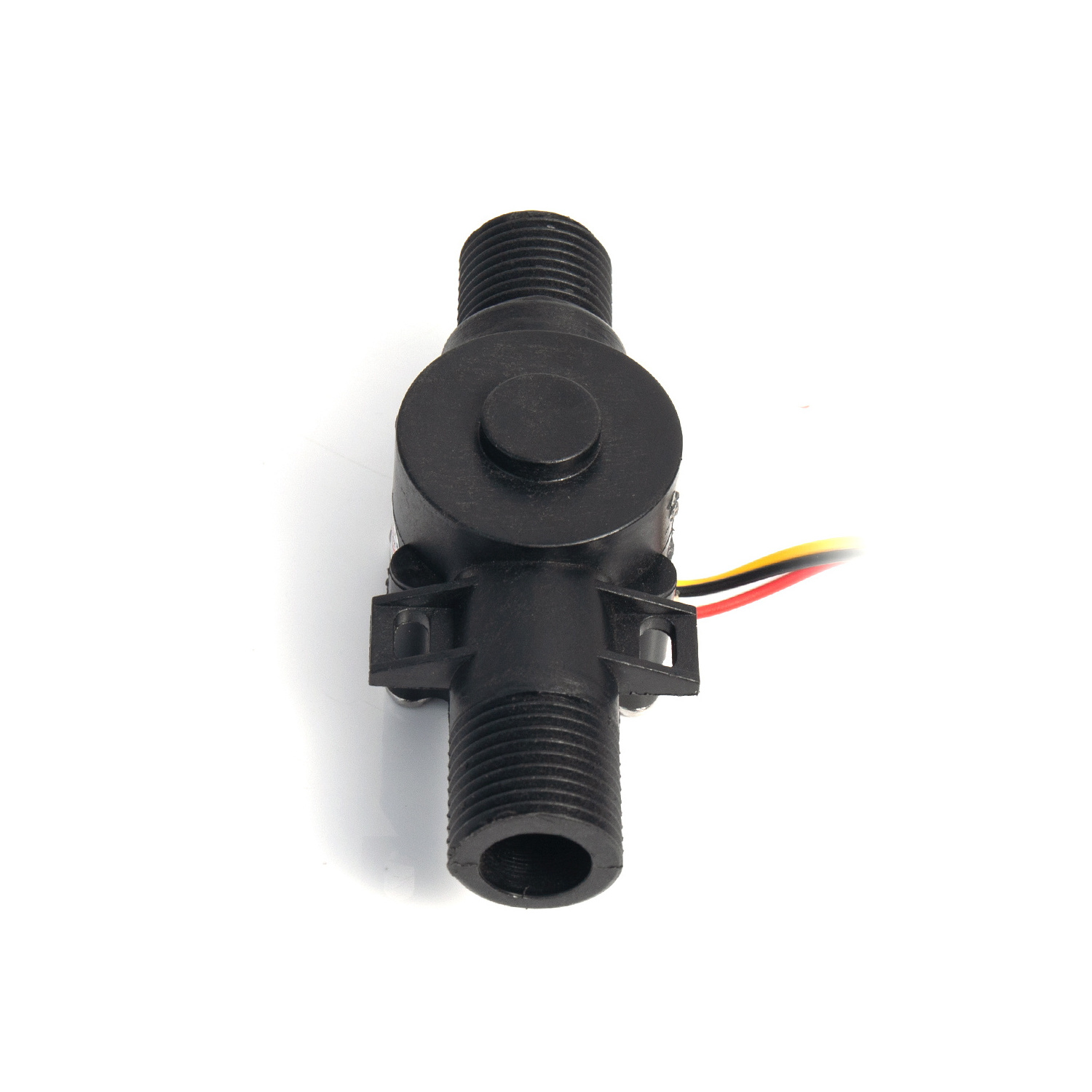

BTL-B28 liquid water flow meter 0.5-20L/MIN water heater measure flow machine water sensor

BTL-B28 liquid water flow meter 0.5-20L/MIN water heater measure flow machine water sensor

FOB Reference Price: Get Latest Price

≥5 Pieces

US $2.26

≥500 Pieces

US $2.16

≥1000 Pieces

US $2.06

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Bestla

Model Number:: BTL-B28

Product Name:: Water Flow Sensor

Material:: Nylon

Flow Range:: 0.5-20L/MIN

Medium:: Drinking Water Standard Liquid

Color:: Black

Water Pressure:: 1.75Mpa

Rated Voltage / Electric Current:: DC2.5 V-24V

Quick Details

Type:: Flow Sensors

Warranty:: 1 years

Place of Origin:: Guangdong, China

Brand Name:: Bestla

Model Number:: BTL-B28

Product Name:: Water Flow Sensor

Material:: Nylon

Flow Range:: 0.5-20L/MIN

Medium:: Drinking Water Standard Liquid

Color:: Black

Water Pressure:: 1.75Mpa

Rated Voltage / Electric Current:: DC2.5 V-24V

Product Description

Product Name	Miniature nylon flowmeter, turbine flow sensor
Material	Nylon PA 66 material
Flow Range	0.3-20L/MIN
Contact Capacity	DC2.5-24V
Temperature	less than 60 degree
Function	Measure water flow, It is installed in various coffee machines, water dispensers, and water inlets of electrolyzers to detect the influent flow.
Features	The product is light and flexible in appearance, small in size, plug and play, easy to install. The impeller is equipped with a stainless steel shaft, which is more powerful and prolongs the service life. The sealing ring adopts the upper and lower force structure and never leaks. The Hall element is imported and isolated from water to prevent water ingress and never age. All raw materials are in compliance with ROHS testing standards.

Product Performance Description

The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly and a Hall sensor.

It is installed in various coffee machines, water dispensers, and water inlets of electrolyzers to detect the influent flow. When
the water passes through the water flow rotor assembly, the magnetic rotor rotates and the rotational speed changes with the flow ate. The Hall sensor outputs the corresponding pulse. The signal is fed back to the controller, and the controller determines the agnitude of the water flow and performs regulation.

Specification

item	value
Warranty	1 years
Type	Flow Sensors
Customized support	OEM, ODM
Place of Origin	China
	Guangdong
Brand Name	Bestla
Model Number	BTL-B28
Product Name	Water Flow Sensor
Material	Nylon
Flow Range	1-30L/min
Medium	Drinking Water Standard Liquid
Color	Black
Water Pressure	1.75Mpa
Rated Voltage / Electric Current	DC4.5 V-24V
