Quick Details
-
Model Number:
-
TCL
-
Product name:
-
low temperature limit switch and controller for cold liquid/air
-
Application:
-
Low Temperature control
-
Type:
-
HVAC/BMS Systems
-
Material:
-
cover fire retardant PC(UL94V-0), body fire retardant ABS(UL94V-0)
-
Accuracy:
-
typical ±2°C
-
Sensing element operating temp. limits:
-
-30~80°C
-
Weight:
-
1.5m:305g; 3m:335g; 6m:395g
-
Sensor:
-
PT1000, class A
-
Approval:
-
CE certificate
-
Protection:
-
IP54
Quick Details
-
Warranty:
-
18 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TEREN
-
Model Number:
-
TCL
-
Product name:
-
low temperature limit switch and controller for cold liquid/air
-
Application:
-
Low Temperature control
-
Type:
-
HVAC/BMS Systems
-
Material:
-
cover fire retardant PC(UL94V-0), body fire retardant ABS(UL94V-0)
-
Accuracy:
-
typical ±2°C
-
Sensing element operating temp. limits:
-
-30~80°C
-
Weight:
-
1.5m:305g; 3m:335g; 6m:395g
-
Sensor:
-
PT1000, class A
-
Approval:
-
CE certificate
-
Protection:
-
IP54

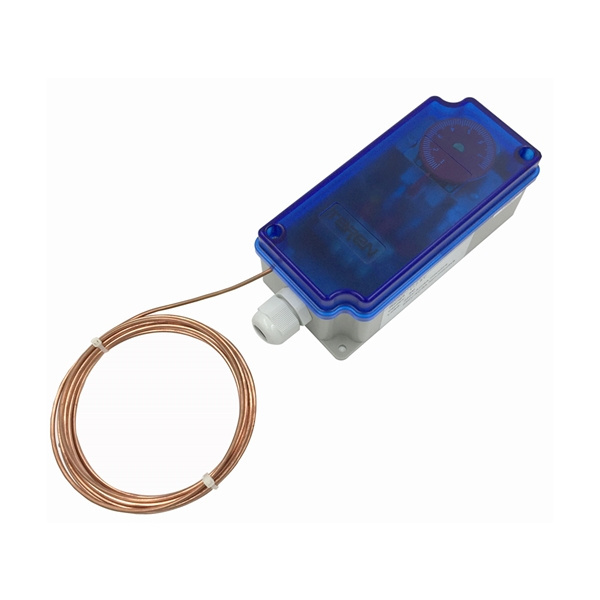

TEREN low temperature limit switch and controller for cold liquid/air
Applications & Features
l It has a long sensing capillary filled with vapor. When the temperature of any part of the component is below the set point, the contact will actuate
l TCL-xA can set the temperature range of 0 ~ 7°C, and TCL-xA-W is -14~12 °C. Both have different length to meet various applications
l It is applicable to cold water coil or other surface temperature alarm for liquid pipe or air in duct
l Contact actuates at the set point and can reset automatically
l Readable scale , easy to operate the set point
Specifications
Sensing element: copper capillary, Φ 2mm, 1.5/3/6m long
Models and parameters: See Models
Controller working environment: -10~70°C, <95%RH, non cond.
Sensing element operating temp. limits: -30~80°C
Accuracy: typical ±2°C
Switch output: SPDT, with temperature decreasing open
Contact load: no inductive 250V/5A, inductive 250VAC/4A
Contact life: ≥ 10 5
Electrical connection: screw terminal, 1.5mm² wire, PG9
Electric strength: AC1500V/1min (AC1800V/1s)
Insulation: ≥100MΩ in normal status, ≥10MΩ in moisture status
Housing: cover fire retardant PC (UL94V-0) , body fire retardant ABS(UL94V-0)
Protection: IP54
Weight: 1.5m : 305g ; 3m: 335g ; 6m:395g
Approval: CE
Models
|
Model |
Capillary Length |
Temp. Range °C |
Dead Band °C |
|
TCL-1A |
1.5m |
0~7 |
2~4 |
|
TCL-3A |
3m |
0~7 |
2~4 |
|
TCL-6A |
6m |
0~7 |
2~4 |
|
TCL-1A-W |
1.5m |
-14~12 |
2~5 |
|
TCL-3A-W |
3m |
-14~12 |
2~5 |
|
TCL-6A-W |
6m |
-14~12 |
2~5 |
Q1: How to get the latest price?
Tell me the models, quantity, and other special requirement.
Q2: Payment terms?
100% T/T in advance.
Q3: Delivery time?
One week.
Q4: Shippment?
DHL, UPS, TNT etc.
Q5: Is OEM/ODM available?
Yes, it's available.
Q6: Warranty?
18 months.
