Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 400*150*200 mm, 240*115*90 mm, 400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YUAN LIAN
-
Voltage:
-
220V/380V etc.
-
Dimension(L*W*H):
-
5600*1650*2450mm
-
Weight (KG):
-
2800 kg
-
Product Name:
-
low price high press U shape brick machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Blue
-
Weight:
-
2800KG
-
Pallet size:
-
850*550mm
-
Raw material:
-
Conrete
-
Block Type:
-
Paver
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
4000-8000pcs/8 hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 400*150*200 mm, 240*115*90 mm, 400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YUAN LIAN
-
Voltage:
-
220V/380V etc.
-
Dimension(L*W*H):
-
5600*1650*2450mm
-
Weight (KG):
-
2800 kg
-
Product Name:
-
low price high press U shape brick machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Blue
-
Weight:
-
2800KG
-
Pallet size:
-
850*550mm
-
Raw material:
-
Conrete
-
Block Type:
-
Paver
Products Description

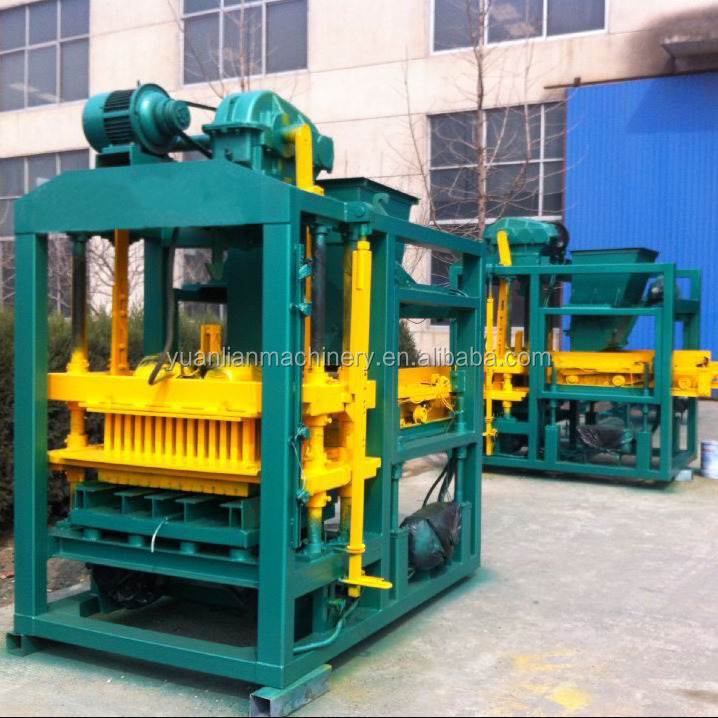

low price high press brick machine QTJ4-25 small interlocking brick machine automatic hollow brick machine price
1)QTJ4-25 block machine is one of our newly designed block making machines.With less power,it achieves super strong vibration.It adopts full automatic spiral material laying method,so the material in the mould is well-distributed.With simple operation and high productivity,when producing hollow blocks,it has an advantage over the large hydraulic block machines.
2)It uses 350 type speed reducer to raise and lower the mold,so it greatly increased the usage life of the speed reducer.It combines pressure and super vibration.The lower vibration adopts two 3kw vibrators and the upper vibration adopts two 1.5kw vibrators,so the blocks made by this machine has high strength and nice shape.Its performance and product quality are comparable to the large equipment.
low price high press brick machine QTJ4-25 small interlocking brick machine automatic hollow brick machine price
!!!
Product Paramenters
|
Overall Dimension
|
5600×1650×2450mm
|
|
Rated Pressure
|
15MPa
|
|
Main Vibration Form
|
Platform vibration
|
|
Acceleration of vibration
|
15-20g
|
|
Cycle Time
|
25 seconds
|
|
Vibrating Frequency
|
50-70HZ
|
|
Overall Weight
|
2800kg
|
|
Motors Power
|
20.75kw
|
|
Pallet Size
|
850*550(mm)
|
|
Raw Materials
|
crushed stone,sand,cement,dust and coal fly ash,cinder,slag,gangue,gravel,expanded perlite,and other industrial wastes.
|
|
Applied Products
|
concrete blocks,solid/hollow/cellular masonry products,paving stones with or without face mix,garden and landscaping
products,slabs,edgers,kerbstones,grass blocks,slope blocks,interlocking blocks,etc. |
low price high press brick machine QTJ4-25 small interlocking brick machine automatic hollow brick machine price
!!!
Productivity
|
Item
|
Block Size
|
Cycle Time
|
QTY/Mould
|
QTY/Hour
|
|
Hollow Block
|
400*200*200mm
|
25s
|
4pcs
|
576pcs
|
|
Porous Block
|
240*115*90mm
|
25s
|
12pcs
|
1728pcs
|
|
Solid Block
|
240*115*53mm
|
25s
|
24pcs
|
3456pcs
|
