Quick Details
-
Filling Accuracy:
-
±0.5%
-
Driven Type:
-
Electirc & Pneumatic
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Atpack
-
Dimension(L*W*H):
-
2200*1100*2350mm
-
Weight:
-
200 KG
-
Processing Types:
-
piston filling
-
Certification:
-
ISO CE
Quick Details
-
Machinery Capacity:
-
4000BPH, Other, 2000BPH, 1000BPH
-
Packaging Material:
-
Glass, Metal, Plastic, Wood, Other
-
Filling Material:
-
Other, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
±0.5%
-
Driven Type:
-
Electirc & Pneumatic
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Atpack
-
Dimension(L*W*H):
-
2200*1100*2350mm
-
Weight:
-
200 KG
-
Processing Types:
-
piston filling
-
Certification:
-
ISO CE
Product Description
Product Application
The machine is suitable for various bottled coffee , wipes and other products of the production, can be automatically completed automatically into the
barrel (assignment at the waterline), (filling), heat sealing, automatic core shear and membrane waste recycling and other
functions. The machine adopts OMRON Programmable logic controller, Taiwan gas dynamic control element, intelligent digital display
temperature control system and has the sealing high strength, good sealing performance, low failure rate, is the product of choice
for enterprise automation production.
Can be customized for packing ice cream, yogurt, milk, soymilk, chilli sauce, juice, honey, ketchup, mineral water and so on.
|
Mode
|
KIS-900
|
KIS-9-2
|
|
|
Capacity
|
800-1000 cups / H
|
1600-2000 cups / H
|
|
|
filling range
|
50-500ml(Can be customize)
|
±0.5%
|
|
|
filling accuracy
|
≤±0.5％
|
±0.5%
|
|
|
Vessel
|
cup, tray, bottle, box, can, container, tub, bucket, pot, etc.
|
±0.5%
|
|
|
Power
|
3N 380V/ single phase 220V, 50/60Hz
|
±0.5%
|
|
|
Power
|
1KW
|
1.5KW
|
|
Main Features
· Approximate Speed: 5 - 38 pcs/min(depending on filling volume, operator speed, product density, draw length, a fill speed, among others)
· All Parts in Contact with Product are Food Grade(SUS316/SUS316L)
· Stainless Steel Construction(SS 304, 1.5mm thickness)
· Electrical-pneumatic Operation
· Fluoropolymer elastomer O-ring System
· Adjustable Volumetric Piston System with Numeric Reference Display
· Piston Feed Speed Adjustment
· No-drip Option Included and Installed
· Extremely Accurate(±0.5％)
·
Extremely Easy to Clean and Maintain
· Sanitary Stainless Steel Quick Disconnect Fittings
· Extremely Easy to Operate
· Quick Connect/Disconnect Pneumatic Fittings.
1. MAIN FUNCTION

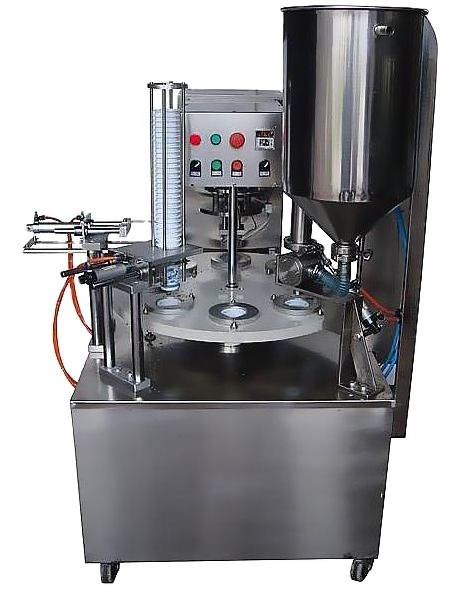

001 KIS-900 Rotary Type Automatic Cup Filling Sealing Machine--- pre-cut foil
1. automatic cup dropping (cups can be stacked, but can’t stick together)
2. automatic filling
3. automatic foil suck
4. automatic sealing
5. auto cup exiting
002 KIS-900 Rotary Type Automatic Cup Filling Sealing Machine--- roll film
1. auto cup dropping (cups can be stacked, but can’t stick together)
2. auto filling
3. automatic sealing
4. auto film cutting
5. wasted film recycling
6. auto cup exiting
7. photocell
8. date printing
Certifications
Detailed Images
Different filling devices
Penumatic tye piston filler, according to your filling volume, we offer personal filling solution to deal with liquid or paste.
Vacuum Suck head
Fully automatic operation, adjustable production speed, easy operation, safety, improve work efficiency, reduce labor costs;
Automatic film sucking
Put the sealing film in the preset place, and one film will be automatically sucked for sealing every time
Automatic sealing
Sealing head are made of aluminum,
with the help of heaters.
Sealing temperature can be adjusted
between 0°-400°
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 24 hours Hotline: 86-13917505479 (English speaking engineer)
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
120(L) * 50 (W) * 95 (D)
|
|
|
Weight
|
100KG
|
|
|
Packaging Details
|
The package adopts outside package (standard export wooden case) and inner package (stretch film), it is suitable for long distance transport, damp proofing, rust prevention, and shockproof etc, and also suitable for sea, land transport and entirety lifting.
|
|
