400kg/h Sawdust Drying System Biomass Wood Dryer Machine with Best Price

400kg/h Sawdust Drying System Biomass Wood Dryer Machine with Best Price

FOB Reference Price: Get Latest Price

≥1 Sets

US $3680

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380v, 220-380V

Power:: Accroding to model

Dimension(L*W*H):: Accroding to model

Weight (KG):: 960

Evaporation Capacity(kg/h):: 500

Name:: Sawdust Drying System Biomass Wood Dryer Machine with Best Price

Keywords:: Wood Dryer Machine

Advantage:: High Working Effiency

Color:: Customized Color

Raw material:: wood chips,sawdust

Heating source:: Hot Air

Quick Details

Type:: Hot Air Furnace

Place of Origin:: Henan, China

Brand Name:: leabon

Voltage:: 380v, 220-380V

Power:: Accroding to model

Dimension(L*W*H):: Accroding to model

Weight (KG):: 960

Evaporation Capacity(kg/h):: 500

Name:: Sawdust Drying System Biomass Wood Dryer Machine with Best Price

Keywords:: Wood Dryer Machine

Advantage:: High Working Effiency

Color:: Customized Color

Raw material:: wood chips,sawdust

Heating source:: Hot Air

Products Description

Wood dryer is suitable for drying materials like wood shavings, sawdust, rice hull, milling wheat straw, and corn stalks and so on. Raw materials diameter: <1mm&<5mm

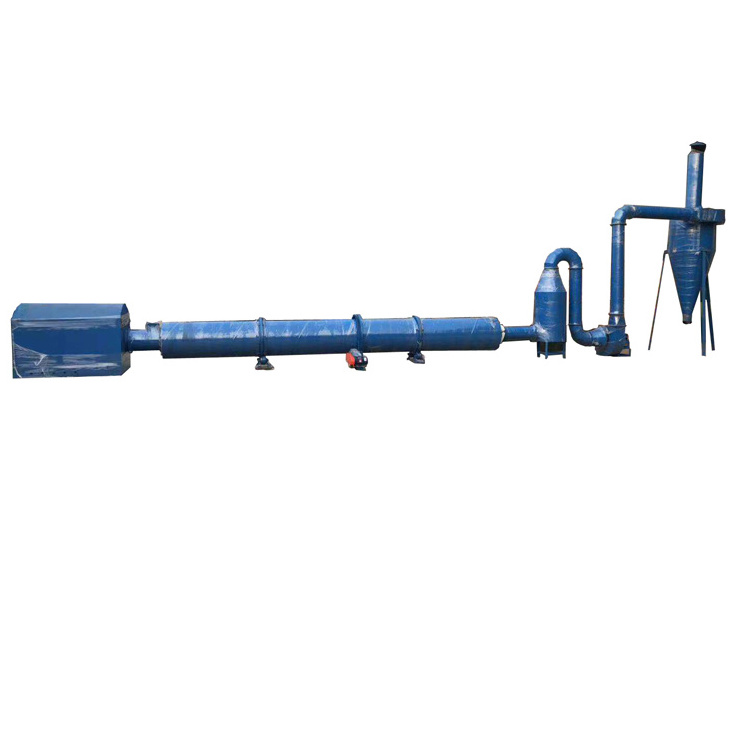

Working principle: The whole system consists of fan blower, motor engine, fuel boiler, steel pipe, cyclone and air lock. In this system, wet material is input into hopper by screw feeder.

Fuel furnace produces large volume of hot air. The hot air is driven into steel pipes, mixed with wet sawdust and moved through curving pipes and drying chamber by the power of fan blower. Fast moving hot air sustains and is mixed with raw material sent by spiral feeder in the suspending state through the steel pipe; moisture evaporates as the material traverses along the steel pipe and is rendered dry at the discharge end. Humid air is continuously exhausted, thus the material is dried.

Detailed Images

Specification

1). Single Stove Sawdust dryer: The Moisture reducing rate of the wood shavings dryer is 8-12%. This dryer is equipped with one hot air boiler, it is suitable for drying raw material with moisture content less than 20-35%.If the moisture content of the raw material is higher than that, it will need several times of drying to achieve the requested moisture content . 2). Double-Stove Sawdust dryer: This double stove sawdust dryer is a newly developed dryer with two hot air boilers, it is suitable for drying raw material with moisture content of 20% -50%, it can reduce moisture from 20%-50% to 8-12% via only one passage.

	Model	Stove No.	Power (kw)	Capacity (kg/h) (for wet wood sawdust )	Dimension (m)	Weight (kg)
35-40% humidity	HGJ-I	One stove	4	300-400	2.441.721.91	960
		HGJ-II	One stove	7.5+1.5+0.75	600-700	2.451.721.91 1.451.421.41	2280
		HGJ-III	One stove	11+1.5+0.75	800-900	2.451.721.91 1.451.421.41	2300
40-55% humidity	HGJ-IV	Two stoves	5.5+1.5	300-400	2.441.231.9 1.41.31.4	1190
		HGJ-V	Two stoves	7.5+1.5	400-500	2.441.231.9 1.41.31.4	1600
		HGJ-VI	Two stoves	11+1.5+0.75	1000-1200	2.451.721.91 1.421.421.41 1.231.241.73	3080
		HGJ-VII	Two stoves	15+1.5+0.75	1100-1300	2.451.721.91 1.421.421.41 1.231.241.73	3090
