Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Holry
-
Model Number:
-
42BLDC21230B-01
-
Torque:
-
0.382Nm
-
Product Name:
-
Brushless Motor
-
Application:
-
Automatic Product
-
Power:
-
100W
-
Rated Voltage:
-
24DC
-
Rated Current:
-
7.6A
-
Rated Speed:
-
3000 Rpm
-
Rated torque:
-
0.382Nm
-
Weight:
-
0.53KG
-
Size:
-
42mm
-
Certification:
-
ce
Quick Details
-
Speed(RPM):
-
3000rpm
-
Continuous Current(A):
-
7.6A
-
Efficiency:
-
IE 4
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Holry
-
Model Number:
-
42BLDC21230B-01
-
Torque:
-
0.382Nm
-
Product Name:
-
Brushless Motor
-
Application:
-
Automatic Product
-
Power:
-
100W
-
Rated Voltage:
-
24DC
-
Rated Current:
-
7.6A
-
Rated Speed:
-
3000 Rpm
-
Rated torque:
-
0.382Nm
-
Weight:
-
0.53KG
-
Size:
-
42mm
-
Certification:
-
ce
Why Choose Us

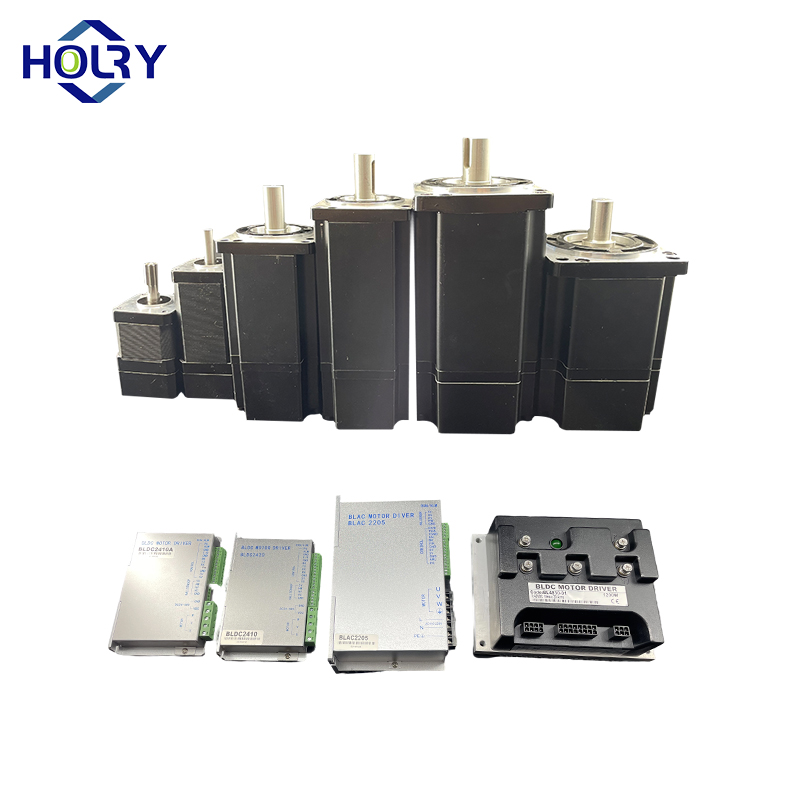

Products Description
Product Paramenters
|
motor model
|
|
42BLDC2330B-01
|
42BLDC2530B-01
|
42BLDC2830B-01
|
42BLDC21030B-01
|
42BLDC21230B-01
|
|||||
|
Phase
|
|
3
|
|
|
|
|
|||||
|
Number of poles
|
|
8
|
|
|
|
|
|||||
|
Winding connection
|
|
Y
|
|
|
|
|
|||||
|
Hall electrical angle
|
|
120
|
|
|
|
|
|||||
|
Rated voltage DC（V）
|
|
24
|
24
|
|
24
|
24
|
|||||
|
Rated power Pn (W)
|
|
36
|
66
|
|
100
|
130
|
|||||
|
Rated torque Tn (N.m)
|
|
0.12
|
0.159
|
|
0.318
|
0.382
|
|||||
|
Rated speed n (rpm)
|
|
3000
|
3000
|
|
3000
|
3000
|
|||||
|
Rated current In (A)
|
|
2.4
|
4.2
|
|
6.4
|
7.6
|
|||||
|
Maximum instantaneous torque Tm (N.m)
|
|
0.36
|
0.63
|
|
0.96
|
1.14
|
|||||
|
Instantaneous maximum current Im (A)
|
|
7.2
|
12.6
|
|
19.2
|
22.8
|
|||||
|
Back EMF constant e (V/kr pm)
|
|
4.3
|
4.3
|
|
4.3
|
4.3
|
|||||
|
Torque constant Tt (N.m/A)
|
|
0.05
|
0.05
|
|
0.05
|
0.05
|
|||||
|
Line resistance RL(Ω)
|
|
1.95
|
0.97
|
|
0.55
|
0.55
|
|||||
|
Line inductance LL(Mh)
|
|
0.87
|
0.49
|
|
0.72
|
0.55
|
|||||
|
Moment of inertia Jm (Kgcm)
|
|
44
|
72
|
|
116
|
143
|
|||||
|
Insulation class
|
|
B
|
|
|
|
|
|||||
|
Bearing radial force Fr (N)
|
|
180
|
180
|
|
180
|
180
|
|||||
|
Bearing radial force Fr (N)
|
|
90
|
90
|
|
90
|
90
|
|||||
|
Weight (Kg)
|
|
0.23
|
0.33
|
0.43
|
0.53
|
0.53
|
|||||
|
cooling method
|
|
Fully enclosed, self-cooling
|
|
|
|
|
|||||
|
Protection level
|
|
IP54
|
|
|
|
|
|||||
|
Use environment
|
temperature
|
-25~+40℃ (no freezing)
|
|
|
|
|
|||||
|
|
humidity
|
Below 95%RH (no condensation)
|
|
|
|
|
|||||
|
|
surroundings
|
Keep away from corrosive, flammable gas, oil drop, dust
|
|
|
|
|
|||||
|
|
altitude
|
The highest altitude is 4000 meters, and the altitude is more than 1000 meters. For every additional 100 meters, the power is
reduced by 1.5%
|
|
|
|
|
|||||
|
Rated condition
|
Temperature rise
|
When the ambient temperature is 40℃, the surface temperature of the case rises by 60K
|
|
|
|
|
|||||
