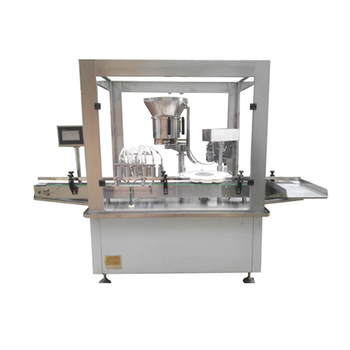

This machine is the main parts in the liquid production line, mainly used for 10~1000ml filling, feeder caps, capping. Straight line conveying, 4/6/8/16-pump linear filling, touch screen interface, frequency control. And it has the functions of lack of bottle, no bottle, no cover, etc., high degree of automation. Filling does not leak liquid, electromagnetic vibration to feed cover, equipped with dust cover. The machine is reasonable in design and easy to operate. SUS304 machine body, GMP standard and CE certificate approved.
|
Model
|
RL-80YL oral syrup filling machine
|
|
Bottles filling speed
|
15~120 bottles/min
|
|
Filling nozzle
|
4/6/8/12/16
|
|
Capping nozzle
|
1/2/4/8/10
|
|
Filling accuracy
|
+/- 1%
|
|
Power
|
Customized
|
|
Machine Size
|
Customized
|
|
Machine body material
|
SUS304
|
|
Machine weight
|
Customized
|
|
Power supply
|
220V/380V accept customization
|
Machine is suitable for automatic bottle filling, feeding caps and capping of vairous medicine, food, beverage, chemical liquid, like syrup, oral liquid, milk, juice, alcohol, wine, sauce oil, iink, solvent. etc.
Name:
touch screen
Our machine touch screen is very good and mature brand.
Can adjust the speed on the touch screen
Optional function: adjust filling volume on touch screen
Name:
filling nozzle
No bottles, no filling. filling nozzle with automatic suck-back function, do dirt the bottles
Optional 8 nozzle high speed bottle filling.
We also have 6 nozzle filling, 12 nozzle, 16 nozzle filling can customize
For caps or covers, we adopts vibrations types caps feeder. It is much more conveninet and economy.
Optionals caps elevator
Different caps need changes different caps feeder
Name : capping nozzle
Crimping nozzle for metal caps sealing.
Different caps may need change capping nozzle
We can do 1/2/4/6/8 different number capping nozzle
Name:
capping nozzle
Different caps need change different capping nozzle.
Highe r speed clamshell machine also available.
Automatic 50ml Maple Vial Bottle And Capping Cough Oral Syrup Filling Machine is CE certificate approved.
Your reliable and fist choose machine supplier
* Inquiry and consulting support.
* Free samples testing
* View our Factory.
* Full sets spare parts
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 7*24 hours online free services
|
Packaging
|
|
|
|
Size
|
2600 (L) * 1500 (W) * 2200 (D)
|
|
|
Weight
|
500kg
|
|
|
Packaging Details
|
The normal package is packed by standard export ply wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
We have machine can automatic feeding plastic/glass bottless to filling machine.
Machine can finish automatic air/water washing in this machine. Effective cleaning before filling
Labeling machine is suitable for various bottles and adjustable. We also have one side or two side labeling machine for choose
We adopts peristaltic pump for small 1~30ml small bottle filling and capping.
We adopts plunger pump for high density paste filling. Also equiped with mixture and heating devices for some special paste.
For bigger size bottles or higher speed demands, we can customize more filling nozzle and capping nozzle machine as demands.
Q1. How to customize
oral syrup filling machine
A: Firstly, Show us all your bottles and caps size and shape, and the filling speed you need. Secondly, we offer you suitable solutions for choose. Thridly, Make decisions and begin machine production.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and after machine finished and machine checking TT70% before delivery.
Q3. Do I need send samples bottles for testing?
A: Certainly, it is necessary for machine customiztion.
Q4. How about your delivery time?
A: Generally, it will take 30-45 days after receiving your deposit payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or drawings.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery, we will also show you video before shipment.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit; All machines is well tested before delivery. Full videos and manual book teaching using machine.
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
