Quick Details
-
Filling Accuracy:
-
99%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Better Origin
-
Dimension(L*W*H):
-
1100*590*1560mm
-
Weight:
-
150 KG
-
Product name:
-
aerosol spray paint filling machine
-
Max Gas volume(ml):
-
20ml, 50ml, 100ml, 200ml, 400ml, 500ml(can be customized)
-
Gas filling accuracy:
-
≤±1%
-
Air consumption:
-
0.5(m3/min)
-
Applicable aerosol can diameter:
-
20-100mm
-
Applicable aerosol can height:
-
60-330mm
-
Available valve:
-
1" (25.4mm)
-
aerosol spray paint filling machine:
-
aerosol spray paint filling machine
-
spray paint can filling machine:
-
spray paint can filling machine
-
spray paint filling machine:
-
spray paint filling machine
Quick Details
-
Machinery Capacity:
-
Max 1000-3000cans/shift(8 hours)
-
Packaging Material:
-
Metal
-
Filling Material:
-
Gas
-
Filling Accuracy:
-
99%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Better Origin
-
Dimension(L*W*H):
-
1100*590*1560mm
-
Weight:
-
150 KG
-
Product name:
-
aerosol spray paint filling machine
-
Max Gas volume(ml):
-
20ml, 50ml, 100ml, 200ml, 400ml, 500ml(can be customized)
-
Gas filling accuracy:
-
≤±1%
-
Air consumption:
-
0.5(m3/min)
-
Applicable aerosol can diameter:
-
20-100mm
-
Applicable aerosol can height:
-
60-330mm
-
Available valve:
-
1" (25.4mm)
-
aerosol spray paint filling machine:
-
aerosol spray paint filling machine
-
spray paint can filling machine:
-
spray paint can filling machine
-
spray paint filling machine:
-
spray paint filling machine
Aerosol Spray Paint Filling Machine Spray Paint Can Filling Machine For Sale
Features:
1. It is coming with crimping part and gas filling part, no liquid part, the liquid materials should be manually filled before crimping.
2. Crimping head and gas filling head are separately designed at one working table, which ensure your different sizes cans will fit this machine.
3. It is sealing with high quality for adopting oriented-sealing; The way of the oriented inflation in the charging end is accurate and efficient with minimal gas consumption.
4. With the original technical design, it is easy to operate saving time and effort.
5. The whole system is pneumatic, very safe and reliable. It has small-occupied area, just 0.5m³ and simple operation, belongs to an economical aerosol production equipment.
6. The propellants can be freon, LPG, DME, CO2, N2, oxygen, compressed air and so on. This will depands on your aerosol product.
7. The machine will be debugged and installed well according to your can’s size. And will be packed into strong wooden case then shipped as a whole machine.
Specifications :
|
Model |
CJXH-800A “2 in 1” aerosol filling machine |
|
Production capacity |
Max 1000-3000cans/shift(8 hours) |
|
Max Gas volume(ml) |
20ml, 50ml, 100ml, 200ml, 400ml, 500ml(can be customized ) |
|
Gas filling accuracy |
≤±1% |
|
Working Pressure |
0.6-1.0Mpa |
|
Air consumption |
0.5(m3/min) |
|
Applicable aerosol can diameter |
20-100mm |
|
Applicable aerosol can height |
60-330mm |
|
Machine dimension |
1100*590*1560mm |
|
Weight |
150kg |
|
Available valve |
1 ” (25.4mm) |

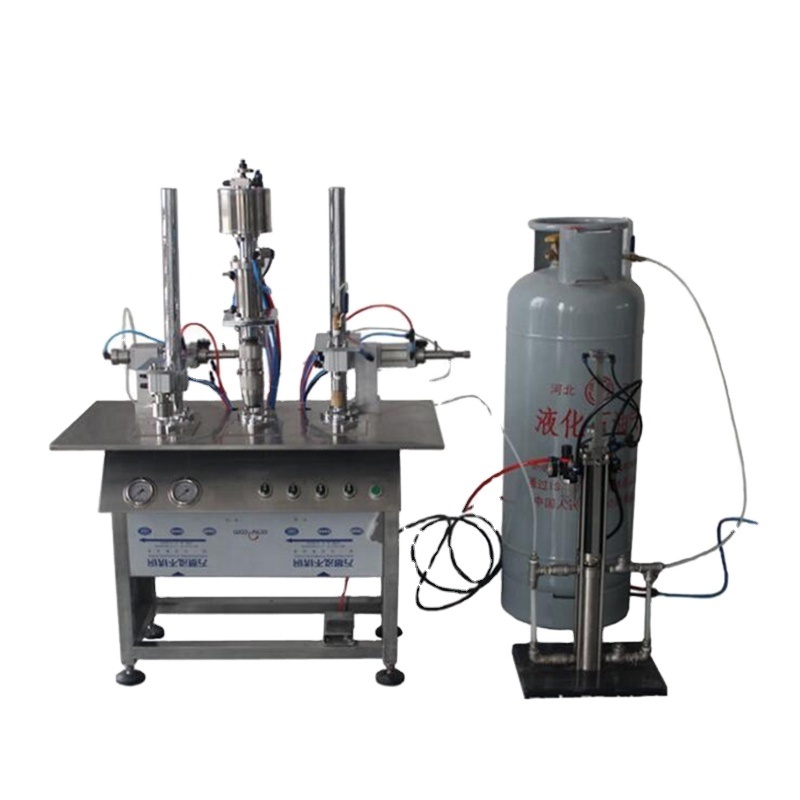

Photos of Aerosol Spray Paint Filling Machine Spray Paint Can Filling Machine For Sale :
