The EG-22A is a smart control panel that an easy to connect, simple to set up, and a feature-rich control box vast amount of
features as listed below.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Villa
-
Type:
-
Heavy duty Swing gate opener
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Giant
-
Model Number:
-
JJ-PKM-C03
-
Motor voltage:
-
24VDC
-
Gear type:
-
Worm gear
-
Max absorbed power:
-
144W (72W per Arm)
-
Maximum weight:
-
350KGS
-
Arm Stroke:
-
350 mm
-
Single Max. length:
-
3 meters
-
Nominal input power:
-
2A
-
Environment temperature:
-
-20°C~+50°C
-
Duty cycle:
-
50%
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Villa
-
Type:
-
Heavy duty Swing gate opener
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Giant
-
Model Number:
-
JJ-PKM-C03
-
Motor voltage:
-
24VDC
-
Gear type:
-
Worm gear
-
Max absorbed power:
-
144W (72W per Arm)
-
Maximum weight:
-
350KGS
-
Arm Stroke:
-
350 mm
-
Single Max. length:
-
3 meters
-
Nominal input power:
-
2A
-
Environment temperature:
-
-20°C~+50°C
-
Duty cycle:
-
50%
Product Description
Heavy duty 771LBS Swing Auto 350KGS Automatic
Door Operators Solar Gate Opener
Heavy-Duty 24V Motor.
Heavy gates up to 350kgs maximum weight each or up to 3 metres maximum lengths each.
Powerful and quiet operation.
Modern design with a compact and neat appearance.
Easy to use manual override via the supplied keys in an emergency.
Easy to adjust top limit switches ensure precise setting of the open and closed positions along with a less strenuous life for the actuator.
Specification
|
Brand Name
|
Giant
|
|
Model Number
|
Hercules-350
|
|
Type
|
Heavy duty Swing gate opener
|
|
Motor voltage
|
24VDC
|
|
Gear type
|
Worm gear
|
|
Max absorbed power
|
144W （72W per Arm）
|
|
Maximum weight
|
350KGS
|
|
Arm Stroke
|
350MM
|
|
Single Max. length
|
3 meters
|
|
Nominal input power
|
2A
|
|
Environment temperature
|
-20°C~+50°C
|
|
Duty cycle
|
50%
|
Control System
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates Automatic Feature Learning will learn all features of the remote with a simple pairing process
Adjustable Automatic Close time up to 2 minutes this can be toggled by remote, keypad, or push button Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.
Adjustable Automatic Close time up to 2 minutes this can be toggled by remote, keypad, or push button Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.
Safety Features
Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output
Safety Sensor connection input
Automatic Courtesy Light Output
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Weather proof with a seal
Normally Used Equipments
Solar Powered System
1pcs*Solar Panel 2pcs*battery 12v 9AH 1pcs*battery charger
The back up battery system will allow that continued use of the gate system for up to three days
of regular use and will automatically recharge upon power restoration.
GIANT Photoelectric Safety Sensor Set HW-07
1 Pair in 2 pcs
If the gate with the infrared begins to close and the sensor path is interrupted then the gate will stop and return to the open position. And it will close again.
* Up to 15 Metres Infrared beam operating distance
* Only powers on when the command is given to close the gates
Electric Locks DS-02
Whole including 2 meters wires
The gate lock is ideal for improving your gate safety
The DS-02 electric gate lock automatically locks and unlocks the gate when the gate opener is activated. It is a perfect solution
to provide stability and additional protection for damaging forces, prevent breakages
at a strong wind, and improve animals’ safety.
to provide stability and additional protection for damaging forces, prevent breakages
at a strong wind, and improve animals’ safety.
Electric lock is strongly
recommended
when your gate is longer than 7 feet (1.5 meters).
Installation Geometry
Pull to Open Fixing Example
Push to Open Fixing Example
Special Noted when installing
Rubber Gate Stop
The supplied rubber gate stop with steel base is necessary used to for the gate alignment and tension whilst they are in the closed position,
Emergency override
Simple to use manual override in case of an emergency.
Simply insert the supplied key to unlock then turn the override knob.

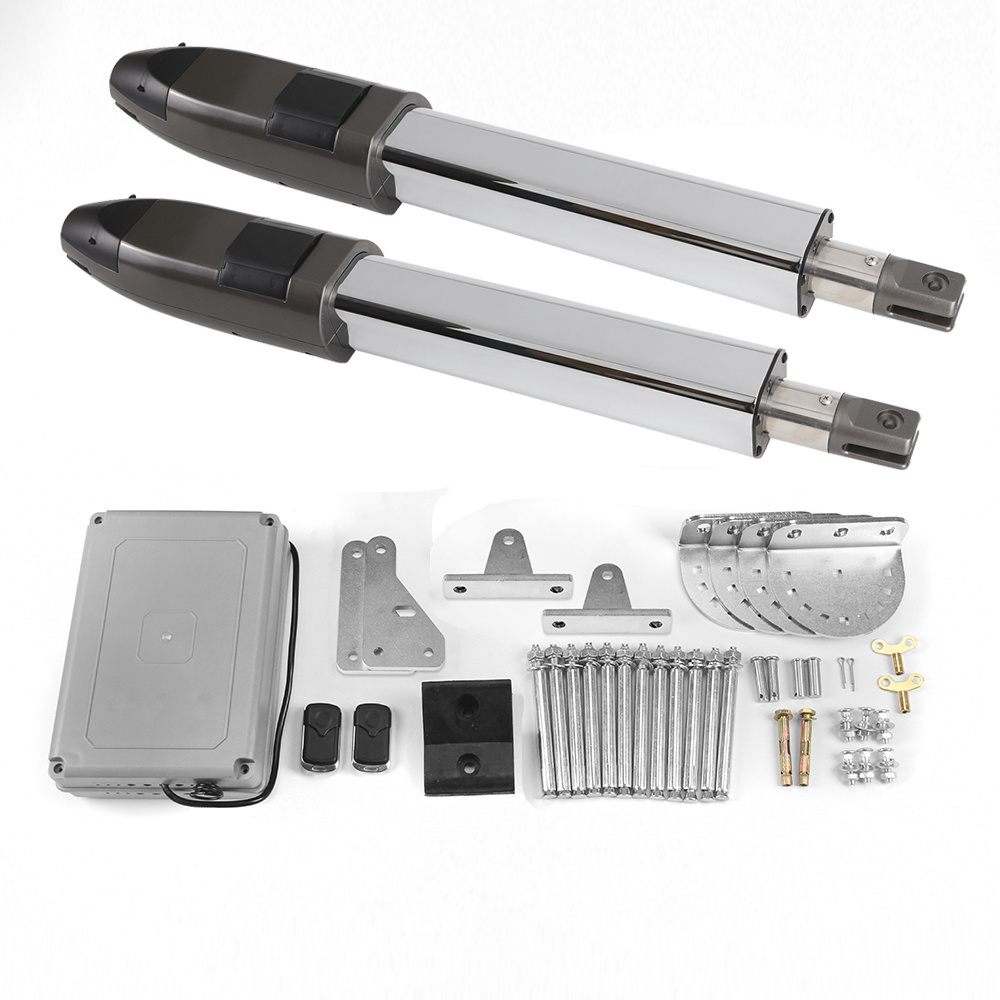

Standard Kit
