Quick Details
-
Voltage:
-
380V
-
Power:
-
1.75-6.05kw
-
Weight:
-
different
-
Dimension(L*W*H):
-
3000-5000m
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Material:
-
304 Stainless Steel
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GY
-
Type:
-
belt juice extractor/belt filter
-
Voltage:
-
380V
-
Power:
-
1.75-6.05kw
-
Weight:
-
different
-
Dimension(L*W*H):
-
3000-5000m
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Material:
-
304 Stainless Steel
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
ISO9001

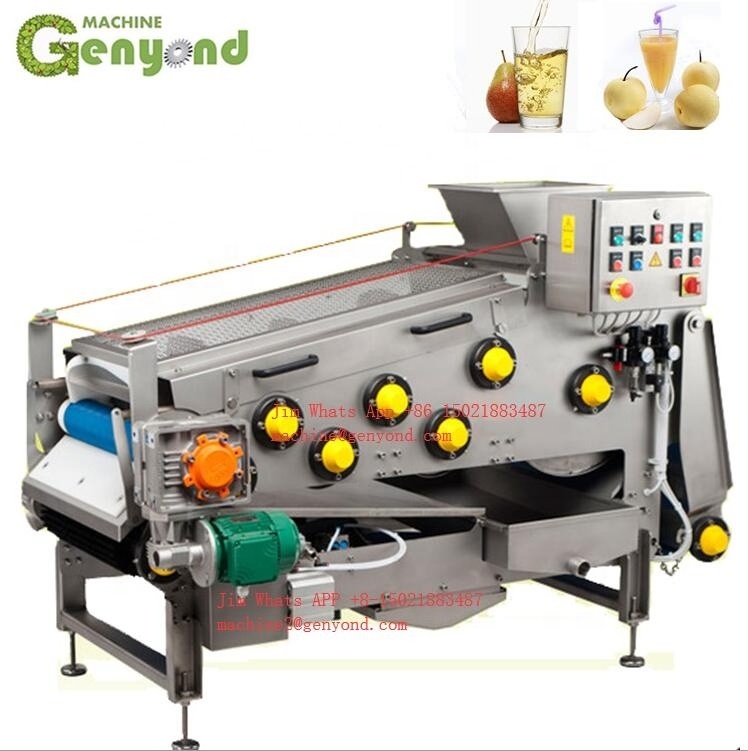

Small capacity apple juice belt pressure
Carefully developed and become, is a highly efficient extrusion equipment, in the fruit juice and vegetable juice production is a key equipment to the juice yield high and low.Can be widely used in berries, kernel fruit and vegetables juice industry.The equipment adopts the multistage fold to stick pressure and multistage pneumatic roller pressure, crushing strength, high rate of juice.At the same time also has the discharged, energy saving, high degree of automation, continuous working, strong commonality, filter, filter cake water filter low, operation and maintenance is convenient wait for a characteristic, is a higher rate of juice, juice equipment.Use of such a juicing equipment can make juice juice yield increased by 20 to 35%, the juice rate is as high as 75 ~ 80% (depending on the raw material), can greatly reduce the production cost, improve the economic benefits of enterprises.
This equipment can also be used for food, chemical industry, environmental protection, light industry and so on some of the powder and the slurry pressure filtration dehydration of the object.
Parameter ( Industrial Belt pressure filter for sale)
|
Parameter |
Model |
||||
|
|
G-2500H |
G-2500L |
G-1750 |
G-1200 |
G-800 |
|
Capacity t/h |
18-22 |
18-22 |
8-12 |
4-6 |
1-3 |
|
Belt Width mm |
2500 |
2500 |
1750 |
1200 |
800 |
|
Belt length mm |
17000 |
14320 |
14320 |
14000 |
9000 |
|
Belt speed m/s |
3.5-8 |
3.5-8 |
3.5-8 |
3.5-8 |
3.5-8 |
|
Main motor power kw |
5.5 |
4 |
3 |
2.2 |
1.5 |
|
Fabric motor kw |
0.55 |
0.55 |
0.37 |
0.37 |
0.25 |
|
Single squeeze juice rate |
78% |
75% |
75% |
75% |
75% |
|
Press roll number |
24 |
20 |
20 |
20 |
20 |
|
Air bag pressure mp |
0.4-0.55 |
0.4-0.55 |
0.4-0.55 |
0.4 |
0.4 |
Feature ( Industrial Belt pressure filter for sale ):
Structure design of heavy load, high rate of juice; All stainless steel manufacturing, in line with food hygiene standards;Filter belt, airbag, reducer adopts foreign famous quality products, stable and reliable;Perfect automatic CIP cleaning system, without manual intervention;Inverter control walking speed belt, upper and lower filter with interchangeable;Touch screen operation control system, intuitive and friendly interface.
