Marine Pantograph Arm Wiper

Product Description

Product Characteristic

Pantograph-arm wiper has a parallel sweep, providing a clear view area. Load sharing twin drive shaft mechanism provides long life. Simple harmonic motion is naturally produced as the wiper accelerates and decelerates at the end of each stroke, which avoids irregular motion. Depth of rubber and shape that are designed to provide good quality of wipe over the glass maximizing the quality on an uneven glass surface. High quality powder coated finish provides long-term protection against corrosion.

Product Detail

Voltage: AC220V, DC24V

Power supply frequency:50HZ/60HZ

Wiping angle: 35-105degree

Wiping speed:45-55times/min

Arm length:300-800mm

Blade length: 300-1300mm

Detailed Images

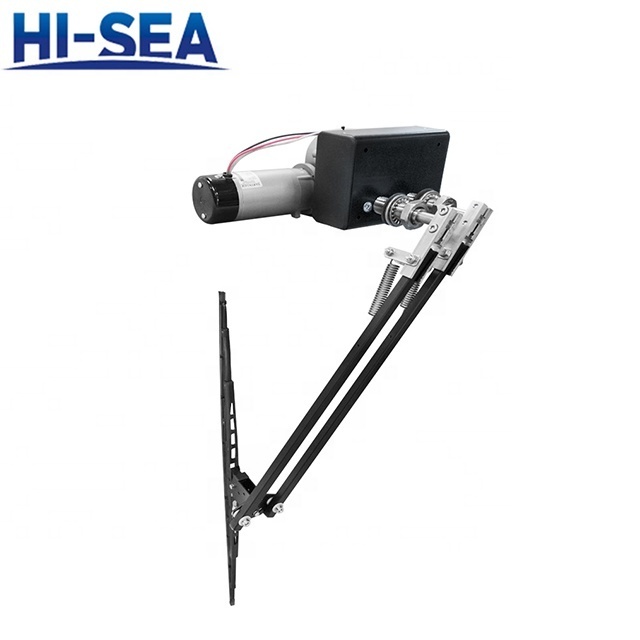

Photo One of  Marine Pantograph-arm Wiper

Photo Two of  Marine Pantograph-arm Wiper

Drawing of Marine Pantograph-arm

Our Service

1. Quality Assurance

All of our products are strictly manufactured in accordance with the production standards. Before being issued the product quality certification, all products are inspected and accepted by the technical inspection department of the manufacturing plant.

2. Product Customization Service

Our company can supply both standard and non-standard products to meet your various needs. We can customize products according to your drawings.

3. Providing Classification Society Certificates

We can supply various certificates of Classification Societies: CCS, ABS, BV, DNV, GL, LR, NK, KR, RINA, RS etc.

4. Excellent Pre-sale and After-sale Service
Our salesmen are adhering to the trading principles of being honest and trustworthy, fair and equitable to provide excellent and satisfactory service for our customers.
