Quick Details
-
Warranty(Year):
-
7-YEAR
-
Input Voltage(V):
-
100-240VAC, 277VAC
-
Lamp Luminous Flux(lm):
-
32000
-
Working Temperature(℃):
-
-30 - 65
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YOUWIN
-
Model Number:
-
YWHBFN-200W
-
Luminous Efficiency:
-
160LM/W
-
LED Chip Q'ty:
-
460PCS
-
Color Temperature:
-
3000-6500K
-
Driver Brand:
-
Meanwell HBG-200-48A
-
Power Factor:
-
>0.97
-
Support Dimmable Function:
-
Yes
-
Support Motion/Daylight Function:
-
Yes
-
Cover:
-
Tempered Glass / Frosted Glass
-
N.W.:
-
4.9KG
-
Installation Method:
-
Hook Hanging / Bracket
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
160
-
Lamp Body Material:
-
Die-cast aluminum
-
Application:
-
Indoor / Outdoor
-
Warranty(Year):
-
7-YEAR
-
Input Voltage(V):
-
100-240VAC, 277VAC
-
Lamp Luminous Flux(lm):
-
32000
-
Working Temperature(℃):
-
-30 - 65
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YOUWIN
-
Model Number:
-
YWHBFN-200W
-
Luminous Efficiency:
-
160LM/W
-
LED Chip Q'ty:
-
460PCS
-
Color Temperature:
-
3000-6500K
-
Driver Brand:
-
Meanwell HBG-200-48A
-
Power Factor:
-
>0.97
-
Support Dimmable Function:
-
Yes
-
Support Motion/Daylight Function:
-
Yes
-
Cover:
-
Tempered Glass / Frosted Glass
-
N.W.:
-
4.9KG
-
Installation Method:
-
Hook Hanging / Bracket

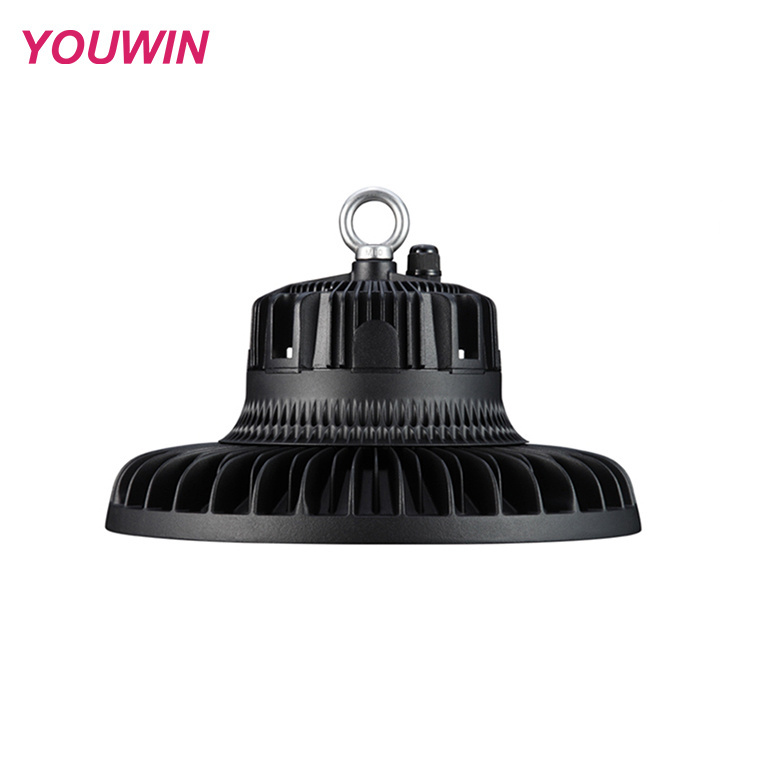

YOUWIN 200W UFO hibay lights LED high bay light industrial commercial lighting gas station warehouse lamp
| Model No. | YWHBFN-100 | YWHBFN-150 | YWHBFN -200 |
| Power | 100W | 150W | 200W |
| SMD2835 LED Q'ty | 230PCS 1W | 320PCS 1W | 460PCS 1W |
| Luminous Flux | 16000LM | 24000LM | 32000LM |
| Installation Height | 5-7m | 8-10m | 11-13m |
| Reflector |
AL90 ° PC90°/120° Optional |
||
| CCT | 3000-3500K/4000-4500K/5000-5500K/6000-6500K Optional | ||
| LED Chip Brand |
NICHIA/CREE/LUMILEDS/ EPISTAR/ NATIONSTAR/SAMSUNG Optional |
||
| Other Function |
Dimming/Sensor/Zigbee Optional |
||
|
If you have any requirements please send inquiry to us or contact us
by Wechat /Whatsapp/Mob 0086 (0)13728750050, thank you! |
|||
Our engineering team can provide free lighting designs to help you know the exact wattage and quantity of your projects.
