Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ruixin
-
Model Number:
-
GBDE-700
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
3.2X1.1X1.6M
-
Weight:
-
1500 KG
-
Marketing Type:
-
Hot Product 2022
-
Speed:
-
400-600 pcs/mins
-
Application:
-
Tshirt bag /Vest bag/Shopping bag
-
Processing Type::
-
Hot Sealing & Cold Cutting
-
Lines:
-
Four Lines
-
Bag Width (Max):
-
100-600mm
-
PLC:
-
Yes
-
Servo motor:
-
Yes
-
Bag length:
-
400-1000mm
-
Usage:
-
T-shirt Bag Making
-
Product name:
-
Bag Making Machine
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
T-shirt Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ruixin
-
Model Number:
-
GBDE-700
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
3.2X1.1X1.6M
-
Weight:
-
1500 KG
-
Marketing Type:
-
Hot Product 2022
-
Speed:
-
400-600 pcs/mins
-
Application:
-
Tshirt bag /Vest bag/Shopping bag
-
Processing Type::
-
Hot Sealing & Cold Cutting
-
Lines:
-
Four Lines
-
Bag Width (Max):
-
100-600mm
-
PLC:
-
Yes
-
Servo motor:
-
Yes
-
Bag length:
-
400-1000mm
-
Usage:
-
T-shirt Bag Making
-
Product name:
-
Bag Making Machine
High Speed (400-600 pcs/mins) Automatic Four Lines Plastic Shopping Bag T-shirt Bag Making Machine :
This Plastic T-shirt Shopping Bag Making Machine is suitable for producing HDPE and LDPE plastic bag . It adopts the step motor (servomotor) discharge the in high speed and photocell to track the cutting, punch the "U"shape bag in one tine. And with such features, such as casy operation, high effciencyand high finished products. .
Siemens motor
Delta inverter
Touch screen changer
Yaskawa servo motor
Panasonic Photocell
Omron electric parts
Technical Parameters:
|
Type |
GBDE-700 |
GBDE-900 |
|
Sealing and Cutting Width |
150-600mm |
180-800mm |
|
Sealing and Cutting Length |
300-650mm |
300-650mm |
|
Sealing and Cutting Thickness |
0.001-0.04mm |
0.015-0.04mm |
|
Bag Making Speed |
(5-150)×4pcs/min |
(5-150)×4pcs/min |
|
Motor Power |
1.5kw |
2kw |
|
Machine Weight |
≈1500kg |
≈2000kg |
|
Overall Dimensions(L×W×H)mm |
3200×1100×1600mm |
5200×1300×1800mm |
|
Air Compress |
5kg/Cm2 |
5kg/Cm2 |
1) it adopts computer to control, inverter motor to adjust the speed, and it has many advantages of top position stopping, steady function, accurate positioning etc.
2) It has 1 automatic photo electric feeding system, and one tracking photocell. automatic temperature control system, electric static eliminating system, automatic counting system and alarm system.
3) It has automatic conveyor system, which conveys the sealed and cut bags.
4) It is hot sealing and cold cutting. The hot sealing has too sides. One is for making flat bag sealing and another is for making T-shirt bag sealing.
Plastic T-shirt Bag Making Machine Pictures:
Bag Sealing Knife:
Cutting Knifes :

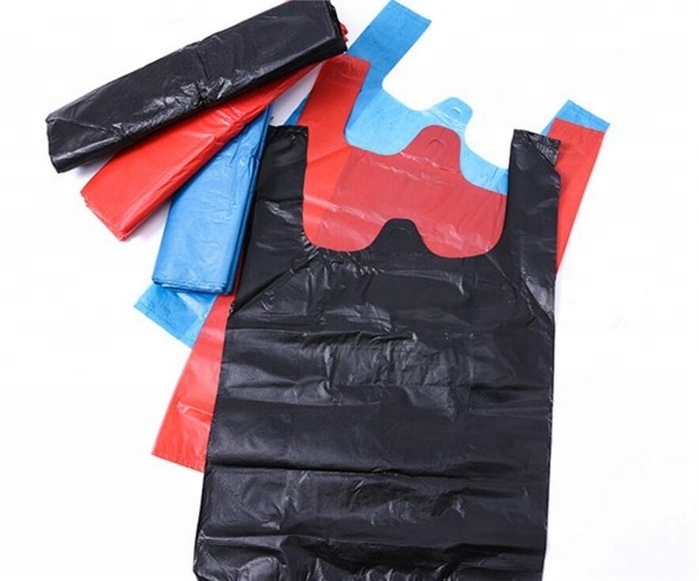

Product Samples :
Our Factory:
Our Customers:
Packing And Deilvery :
Our Service:
Welcome Contact Us Freely :
