Quick Details
-
Brand Name:
-
GONSIN
-
Model Number:
-
TL-VB4200
-
Key Features:
-
conference room audio systems
-
Interpretation:
-
6 chanels interpretation
-
Design:
-
Elegant Streamline Design
-
Quality:
-
Exquisite Manufacturing Process
-
Speaker:
-
Built-in Loudspeaker
-
International Standard:
-
IEC 60914
-
Microphones Modes:
-
Auto / FIFO / OPERATOR
-
Frequency Response:
-
30Hz~20KHz
-
VOX Sensitivity:
-
High/Middle/Low(77dB/80dB/82dB)
-
Microphone stem length:
-
410mm (standard)
Quick Details
-
Type:
-
Audio Conference System, Network Conference System
-
Function:
-
Discussion, Voting And Interpretation
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GONSIN
-
Model Number:
-
TL-VB4200
-
Key Features:
-
conference room audio systems
-
Interpretation:
-
6 chanels interpretation
-
Design:
-
Elegant Streamline Design
-
Quality:
-
Exquisite Manufacturing Process
-
Speaker:
-
Built-in Loudspeaker
-
International Standard:
-
IEC 60914
-
Microphones Modes:
-
Auto / FIFO / OPERATOR
-
Frequency Response:
-
30Hz~20KHz
-
VOX Sensitivity:
-
High/Middle/Low(77dB/80dB/82dB)
-
Microphone stem length:
-
410mm (standard)
quality stuff auto tracking video translation conference room audio systems
| * Elegant Streamline Design | * Exquisite Manufacturing Process |
| * Voice-activated Function | * Built-in Loudspeaker |
| * Support multiple chairman units and vice chairman units | |
| * Support 6 channel wired simultaneous interpretation | |
| * Support auto camera tracking function (SD and HD) | |
| * Highly resistant to mobile phone interference | |
| * Electret cardioid pickup pattern microphone, rich timbre | |
| * White-on-blue backlit LCD to display the unit status | |
| * Pluggable gooseneck microphone stem, red ring luminant to indicate active mic | |

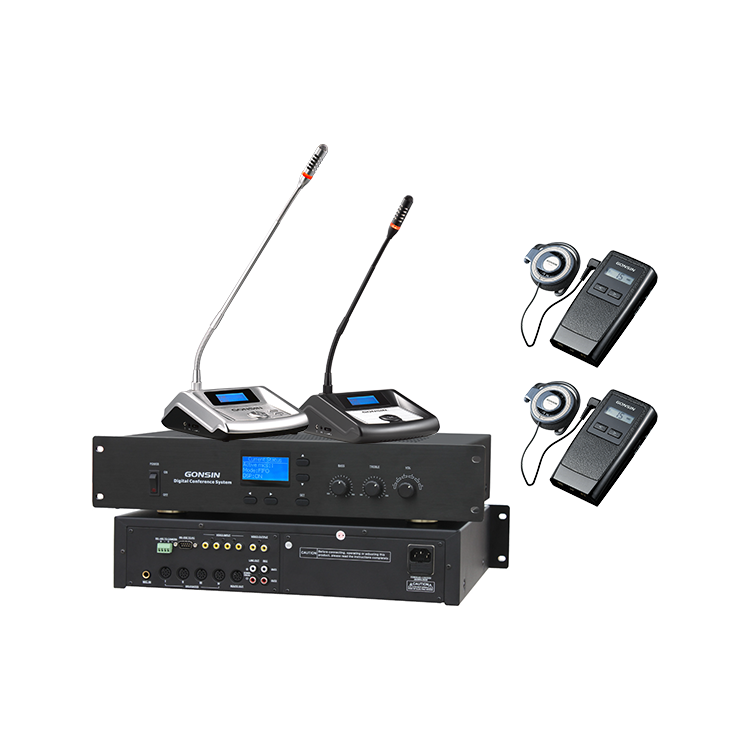

Centrol Control Unit
| Discussion Management | |
| Interactive Voting | |
| Simultaneous Interpretation & L anguage Distribution | |
| Video Tracking | |
| Software Control | |
|
Features:
* Confirm to IEC 60914 international standard
|
|
Chairman Unit / Delegate Unit
| Mounting type | Desktop | |
| Frequency Response | 30Hz~20KHz | |
| Sensitivity | -46dB±4dB | |
| SNR | ≥95dB | |
| Max SPL | 125 dB (THD<3%) | |
| Dynamic range | >85dB | |
| VOX Sensitivity | High/Middle/Low(77dB/80dB/82dB) | |
| VOX auto mic time-out | 6-180 seconds | |
| Microphone stem length | 410mm(standard)(310mm/510mm optional) | |
|
* Voice-activated function
* Voting: delegate can vote for Yes, No, Abstain . Vote counting and result display are enabled
|
||
Interpreter Console / Unit
| Channel | 6 | |
| Frequency response | 30Hz to 20KHz | |
| Channel separation | > 85 dB | |
| Distortion at 1 Khz | < 0.1% | |
| Operating voltage | 24V DC | |
| Power consumption | 2.5W | |
| Maximum input power level | 7.5V | |
| Built-in loudspeaker | 8Ω/2W | |
| Audio input/output | 2× MIC / 2× REC/2 × Headphone | |
| Standard mic stem length | 410 mm | |
| Operating temperature | 0℃to 45 | |
| Storage temperature | -20℃ to 50℃ | |
| LCD screen |
Dimensions: 65mm*32mm
128×64 dot-matrix display Blue backlit, white letter |
|
| Dimensions | 247×145×95 mm(W×D×H) | |
| Weight | 1.2kg | |
|
Features: Digitally-controlled workstation designed for 6 or 16-channel interpretation system * LCD screen to display various information * Support direct interpretation and relay interpretation * Support dual mic relay interpretation * Mic selection function * L/M/H selectable output volume level * 3pre-select incoming channels * Automatic channel interlocking function * Speaking speed remind function * Pluggable microphone stem |
||
HD Video Camera Tracking System
| HD Dome Camera | Speed: Maximum:3Gbps |
| Full HD video, super clear image | Compatible bitstream: 143Mbps~3Gbps |
| Low noise, high SNR | Balance ability: 100m @3G(Belden 1694A) |
| Wide range, high speed, low noise motion | Clock recovery: Optional |
| HD multiple video output formats | Serial control interface: RS232,9- pins female D-type interface |
| Transparent transmission function of remote controller | |
| Support H.265/H.264 encoding | baud rate and protocol baud rate: 9600 |
| Support multiple control protocols | Power supply: 100VAC ~ 240VAC, 50/60 Hz |
|
GONSIN HD auto camera tracking system utilizes advanced technology and cowork with conference system. It can automatically track the speaker by the
|
|
