- Product Details
- {{item.text}}
Quick Details
-
Placement:
-
Portable
-
OS:
-
Single Chip Computer
-
Screen Type:
-
None
-
Combination:
-
Other
-
Warranty:
-
3 Year
-
Place of Origin:
-
China
-
Brand Name:
-
fifotrack
-
Model Number:
-
Q2
-
Size:
-
65*46*17mm
-
GSM Module:
-
SIMCOM7500, Cat 1 Type
-
Frequency Band:
-
4G+3G E/SA/A 3 Versions for Global Bands Coverage
-
GPS Module:
-
U-blox EVA-M8Q
-
Internal Battery:
-
1000mAh/3.7V Lithium ion battery
-
Working Time:
-
Standby 16 Days, 5 Minutes Interval 3 Days 11 Hours
-
Motion Sensor:
-
6-axis Built-in Motion Sensor for Tilt/Man down/Fall down Detection
-
Two-way call:
-
Built-in Speaker and Micophone with Loud Voice
-
Waterproof:
-
IP67
-
Certificate:
-
CE/FCC/RoHS
Quick Details
-
Car Fitment:
-
Universal
-
Resolution:
-
None
-
Function:
-
GPS+WiFi+LBS Tracking with SOS Button
-
Placement:
-
Portable
-
OS:
-
Single Chip Computer
-
Screen Type:
-
None
-
Combination:
-
Other
-
Warranty:
-
3 Year
-
Place of Origin:
-
China
-
Brand Name:
-
fifotrack
-
Model Number:
-
Q2
-
Size:
-
65*46*17mm
-
GSM Module:
-
SIMCOM7500, Cat 1 Type
-
Frequency Band:
-
4G+3G E/SA/A 3 Versions for Global Bands Coverage
-
GPS Module:
-
U-blox EVA-M8Q
-
Internal Battery:
-
1000mAh/3.7V Lithium ion battery
-
Working Time:
-
Standby 16 Days, 5 Minutes Interval 3 Days 11 Hours
-
Motion Sensor:
-
6-axis Built-in Motion Sensor for Tilt/Man down/Fall down Detection
-
Two-way call:
-
Built-in Speaker and Micophone with Loud Voice
-
Waterproof:
-
IP67
-
Certificate:
-
CE/FCC/RoHS
Product Description

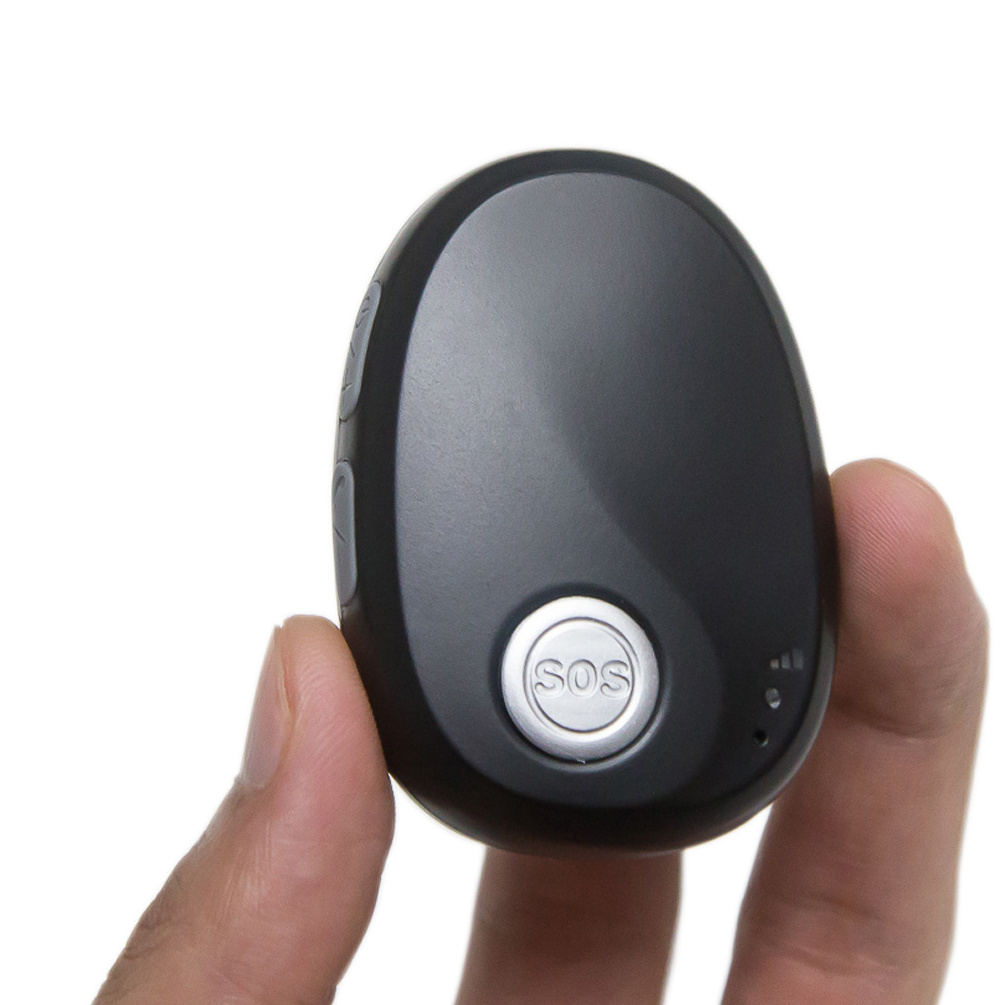

Q2 is a latest generation new portable GPS tracker designed for kids, elders, employees, lone workers, pets, animals, and valuable asset tracking. It keeps a good balance between size and battery working life, the working time is up to 3.4 days at every 5 minutes tracking time interval. Q2 has passed IP67 waterproof standard, which is suitable for outdoor activities. With built-in microphone and speaker, Q2 supports two-way communication between the user and the preset SOS phone guardian.
Powered by the built-in 6-axis motion sensor and excellent firmware algorithm, the Q2 device is able to detect the Tilt/Man down/Fall down events accurately.
Q2 uses original simple and professional FIFOTRACK A03 GPRS PROTOCOL, the
programmers
can integrate this protocol in their own platform and develop APP efficiently.
Global Band Coverage
Original Design
Specifications
|
Items
|
Descriptions
|
|
Dimension
|
65*46*17mm
|
|
Weight
|
48g
|
|
GSM Module
|
SIMCOM7500
|
|
GPS Module
|
U-blox EVA-M8Q
|
|
Charging Voltage
|
DC 5V/1A
|
|
Internal Battery
|
1000mAh/3.7V Lithium ion battery
|
|
Full charging time
|
<2 hours 10 minutes
|
|
Power Consumption
|
Average 2.4mA standby current
|
|
Working hours
|
5 minutes time interval 3 days 11 hours
|
|
Microphone
|
Built-in microphone
|
|
Speaker
|
Built-in speaker
|
|
Operating Temperature
|
-20℃~70℃
|
|
Humidity
|
5%~95%
|
|
Waterproof
|
IP67 (Testing condition: Immersed in 20cm depth water for 30 minutes)
|
|
LED Light
|
2 LED lights indicate GPS/GSM/Power status
|
|
Button/Switch
|
1 SOS button, 1 power button, 1 call button
|
|
Flash Memory
|
4MB (Buffer storage: GPRS 8000 units, SMS 400 units)
|
|
Motion Sensor
|
6-axis motion sensor
|
|
Vibration motor
|
Built-in, vibration reminder incoming call/button press
|
|
WiFi
|
802.11 n (2.4 GHz)
|
|
Frequency Band
E version:
for Asia, Europe, Middle East, Africa countries
|
2G
GSM: 900/1800 MHz
|
|
|
3G
WCDMA: B1/B8 (2100/900MHz)
|
|
|
4G
FDD-LTE: B1/B3/B7/B8/B20
|
|
Frequency Band
SA version
: for Latin America and Australia countries
|
2G
GSM: Don’t support
|
|
|
3G
WCDMA: B1/B5(2100/850MHz)
|
|
|
4G
FDD-LTE: B1/B3/B5/B7/B8/B28
|
|
Frequency Band
A version
: for USA and Canada
|
2G
GSM: Don’t support
|
|
|
3G
WCDMA: B2/B5 (1900/850 MHz)
|
|
|
4G
FDD-LTE: B2/B4/B12
|
|
GPS Sensitivity
|
-167dBm
|
|
GPS Start Speed
|
Cold start 30s
Hot start 1s
|
|
Position Accuracy
|
2.5m
|
|
Charging Port
|
1 charging/ configuring magnetic contact port
|
