- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
27 KG
-
Drilling Diameter:
-
28-42mm
-
Drilling Depth:
-
6 m
-
Mobility:
-
Flexible mobile
-
Rotation speed of engine:
-
≥2450rpm
-
Displacement of engine piston:
-
185cm3
-
Type of carburetor:
-
hand needle valve, float-less type
-
Fuel consumption:
-
≤0.12 L/m
-
Tank capacity:
-
≥1.5 liter
-
Rotating speed of drill rod:
-
≥200 rounds/min
-
Certification:
-
ISO CE
Quick Details
-
Place of Origin:
-
Shandong,China(Mainland)
-
Brand Name:
-
ENWEI
-
Dimension(L*W*H):
-
746*315*229mm
-
Weight:
-
27 KG
-
Drilling Diameter:
-
28-42mm
-
Drilling Depth:
-
6 m
-
Mobility:
-
Flexible mobile
-
Rotation speed of engine:
-
≥2450rpm
-
Displacement of engine piston:
-
185cm3
-
Type of carburetor:
-
hand needle valve, float-less type
-
Fuel consumption:
-
≤0.12 L/m
-
Tank capacity:
-
≥1.5 liter
-
Rotating speed of drill rod:
-
≥200 rounds/min
-
Certification:
-
ISO CE
Products Description

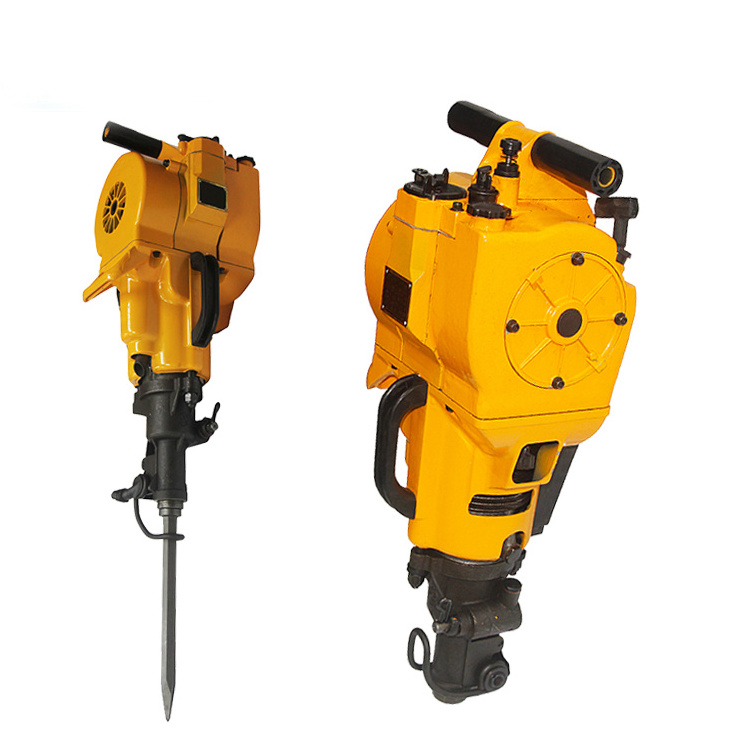

Gasoline Rock Drill Jack Hammer for Construction (YN27C)
The internal combustion drill is a tool used to directly extract stone. It drills holes in the rock formations so that they can be put into explosives to blow up the rock to complete the excavation of stone or other stonework. In addition, the rock drilling machine can be changed into a breaker, used to break the hard layer of concrete.
YN27C Gas Powered Jack Hammer Rock Drill for Mining
Equipment Introduction
The internal combustion rock drill is a drilling machine with fuel combustion as its driving force, and is a hand-held rock-drilling tool composed of small gasoline engine, compressor and rock drilling machine. Mainly used for drilling down, horizontal and up to less than 45 ° hole, replace a few parts, can be changed to crusher or tamping machine, used for a variety of shovel chisel, crushing, digging, splitting and ramming work. Since the machine has its own power, the production of compressed air to blow the hole, it is particularly suitable for high mountains, no power, no pressure gas equipment areas and large
liquidity of temporary works. Widely used in Open-pit mining, excavation of frozen soil, road construction, cable laying and water conservancy.
Application of YN27C Gas Powered Jack Hammer Rock Drill
YN27C Inter Combustion Rock Drill suited to work on high mountains, plains, hot and cold area with no power and no water supply and air compressing equipment, and especially suits the projects that the machine has to be carried at any time and in any area. Main Characteristics of YN27C Gas Powered Jack Hammer Rock Drill
1. Easy to operate, just turn the handle to make it work.
2.Time and labor saving, drilling fast and high efficiency.
3. First-class level drilling tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain and plain, extreme temperature (40 to -40).
4.Used to drill vertical downward hole(max depth 6) and and <45° upward hole.
5.Light drilling tools, only 27kg, easy to carry.
The internal combustion drill is a tool used to directly extract stone. It drills holes in the rock formations so that they can be put into explosives to blow up the rock to complete the excavation of stone or other stonework. In addition, the rock drilling machine can be changed into a breaker, used to break the hard layer of concrete.
YN27C Gas Powered Jack Hammer Rock Drill for Mining
Equipment Introduction
The internal combustion rock drill is a drilling machine with fuel combustion as its driving force, and is a hand-held rock-drilling tool composed of small gasoline engine, compressor and rock drilling machine. Mainly used for drilling down, horizontal and up to less than 45 ° hole, replace a few parts, can be changed to crusher or tamping machine, used for a variety of shovel chisel, crushing, digging, splitting and ramming work. Since the machine has its own power, the production of compressed air to blow the hole, it is particularly suitable for high mountains, no power, no pressure gas equipment areas and large
liquidity of temporary works. Widely used in Open-pit mining, excavation of frozen soil, road construction, cable laying and water conservancy.
Application of YN27C Gas Powered Jack Hammer Rock Drill
YN27C Inter Combustion Rock Drill suited to work on high mountains, plains, hot and cold area with no power and no water supply and air compressing equipment, and especially suits the projects that the machine has to be carried at any time and in any area. Main Characteristics of YN27C Gas Powered Jack Hammer Rock Drill
1. Easy to operate, just turn the handle to make it work.
2.Time and labor saving, drilling fast and high efficiency.
3. First-class level drilling tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain and plain, extreme temperature (40 to -40).
4.Used to drill vertical downward hole(max depth 6) and and <45° upward hole.
5.Light drilling tools, only 27kg, easy to carry.
|
Weight of main machine
|
27kg
|
|
Overall dimensions(L*W*H)
|
746*315*229mm
|
|
Cylinder diameter*stroke of piston
|
Φ58*70mm
|
|
Rotation speed of engine
|
≥2450rpm
|
|
Displacement of engine piston
|
185cm³
|
|
Type of carburetor
|
hand needle valve, float-less type
|
|
Ignition system
|
controllable silicon, contact-less system
|
|
Drilling speed (mean value of five holes)
|
≥250mm/min
|
|
Drilling hole diameter
|
Φ28-42mm
|
|
Max drilling depth
|
6m
|
|
Fuel consumption
|
≤0.12L/m
|
|
Tank capacity
|
≥1.5liter
|
|
Drill rod and breaker shank
|
Hex22*108mm
|
|
Rotating speed of drill rod
|
≥200rounds/min
|
|
Clearance of spark plug
|
0.5-0.7mm
|
