Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
huanghe tieniu
-
Model Number:
-
M6
-
Place of Origin:
-
SHG
-
Horsepower:
-
82
-
Cable Length:
-
null
-
Outlet Size:
-
150mm
-
Power:
-
54KW
-
motor:
-
DIESEL ENGINE
-
Max Flow:
-
650m3/h
-
head:
-
25m
-
Material:
-
Cast Iron
-
suction depth:
-
9.5m
-
Advantage:
-
Can perform idle operation
Quick Details
-
Application:
-
Developing World Water Solutions, Irrigation and Agriculture, Marine, Mining industry, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
24v
-
Warranty:
-
2 years
-
Brand Name:
-
huanghe tieniu
-
Model Number:
-
M6
-
Place of Origin:
-
SHG
-
Horsepower:
-
82
-
Cable Length:
-
null
-
Outlet Size:
-
150mm
-
Power:
-
54KW
-
motor:
-
DIESEL ENGINE
-
Max Flow:
-
650m3/h
-
head:
-
25m
-
Material:
-
Cast Iron
-
suction depth:
-
9.5m
-
Advantage:
-
Can perform idle operation
Certifications
Product description

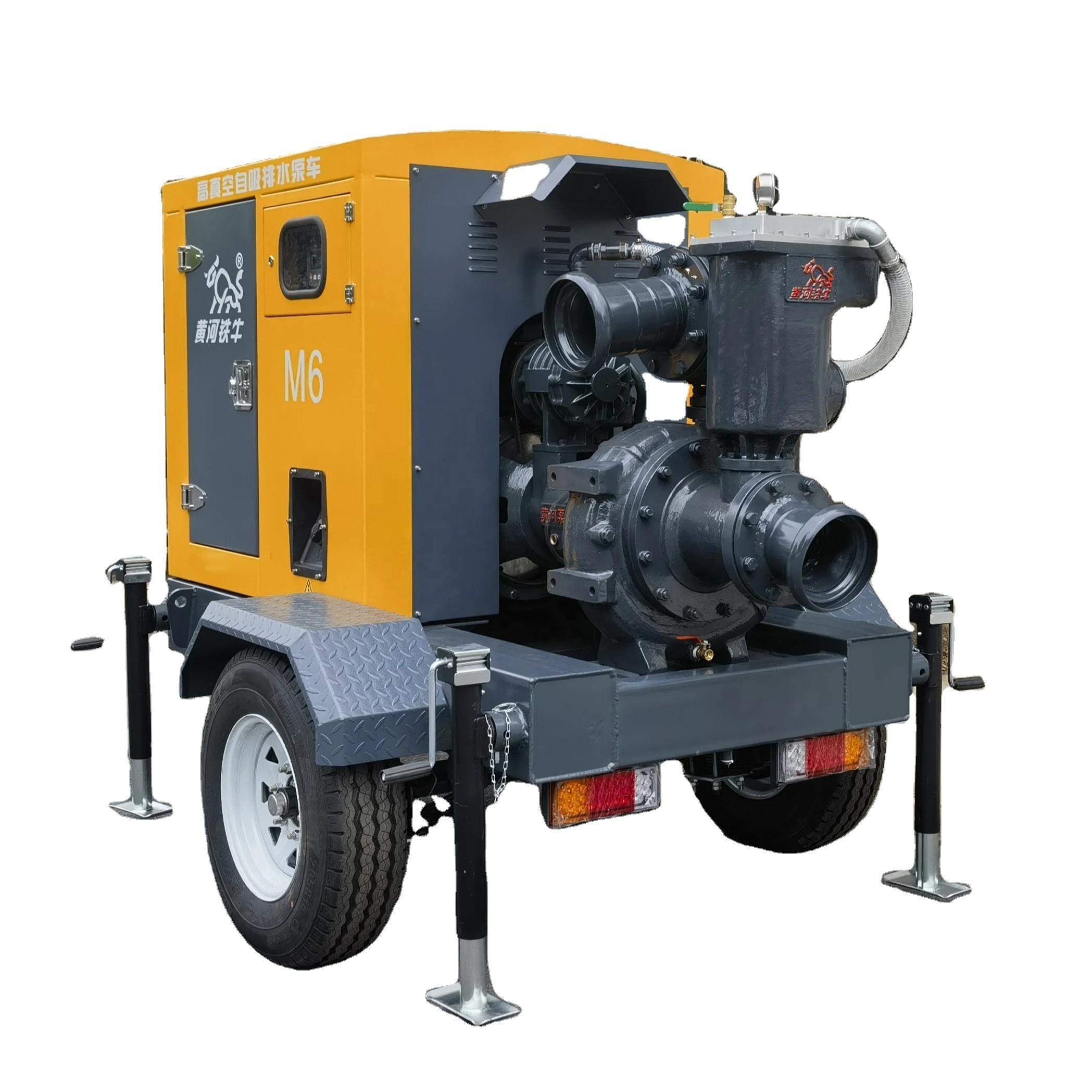

M6 series high vacuum diesel engine self suction pump
The M6 series diesel engine water pump is one of our company's popular products. Although the diameter of the pump is small, it has the characteristics of high suction head and high flow rate. And the operation is relatively simple, with excellent sealing performance. This series of pumps can solve problems such as urban waterlogging and agricultural drain
age
.
Product photos
Product vid
eo
Product specifications
Model
|
Flow
(m³/h)
|
Lift
(m)
|
Suction height
(m)
|
Speed
(RPM)
|
Power
(kw)
|
M6-20
|
160
|
20
|
9
|
2900
|
15
|
M6-32
|
160
|
32
|
9
|
2900
|
22
|
M6-20
|
200
|
20
|
9
|
1450
|
18.5
|
M6-32
|
200
|
32
|
9
|
1450
|
30
|
M6-50
|
200
|
50
|
9
|
1450
|
45
|
M6-44
|
187
|
44
|
9
|
1450
|
37
|
M6-32
|
160
|
32
|
9
|
1450
|
22
|
M6-80
|
200
|
80
|
9
|
1450
|
90
|
M6-70.5
|
182
|
70.5
|
9
|
1450
|
75
|
M6-150
|
160
|
150
|
9
|
2900
|
110
|
M6-142
|
150
|
142
|
9
|
2900
|
90
|
M6-50
|
200
|
50
|
9
|
2900
|
45
|
M6-44
|
187
|
44
|
9
|
2900
|
37
|
M6-80
|
200
|
80
|
9
|
2900
|
75
|
M6-70
|
187
|
70
|
9
|
2900
|
55
|
M6-125
|
200
|
125
|
9
|
2900
|
110
|
M6-110
|
187
|
110
|
9
|
2900
|
90
|
M6-180
|
200
|
180
|
9
|
2900
|
250
|
On site homework photos
Factory realistic photos
Operation guide
Method of application
1. connect suction pipe
2. connect hose
3. open the power switch to connect battery power
4. press start button(the green button on controller panel)
5. waiting and the machine will work automatically
2. connect hose
3. open the power switch to connect battery power
4. press start button(the green button on controller panel)
5. waiting and the machine will work automatically
Points for attention
1. the sealing O-ring should be smeared by butter before used, or it will be broken soon
2. make sure every joint is sealed well before start the engine
3. make sure the fuel, oil and coolant is enough in the engine
4. check if the power circuit is connected w ell
2. make sure every joint is sealed well before start the engine
3. make sure the fuel, oil and coolant is enough in the engine
4. check if the power circuit is connected w ell
Similar products
FAQ
Q:
Are you manufacturer or trading company?
A:
Our company is a manufacturer with rich experience and has its own technical team. These pumps are designed by our own team.
Q:
How can I make order online?
A:Send email or message (whatsApp/ wechat) us.you can ask any questions after we confirm the detail,we can make order.
Q:When will the delivery be made?
A:The delivery time is usually 10-15 working days after confirming payment.
A:The delivery time is usually 10-15 working days after confirming payment.
Q: Can I purchase parts separately?
A: Yes, all pump spare parts can be purchased separately.
