Quick Details
-
Application:
-
CONSTRUCTION
-
Rated Lifting Moment:
-
3150KN.M
-
Span:
-
3.2-70M
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAISHAN
-
Model Number:
-
QTZ315
-
Warranty:
-
one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Standard mast:
-
2x2x3 m
-
colour:
-
according to customer's needs
-
Working environment:
-
-20℃ - +40 ℃
-
Certification:
-
CE and GOST certification
Quick Details
-
Rated Loading Capacity:
-
16T
-
Max. Lifting Load:
-
16T
-
Max. Lifting Height:
-
180M
-
Application:
-
CONSTRUCTION
-
Rated Lifting Moment:
-
3150KN.M
-
Span:
-
3.2-70M
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAISHAN
-
Model Number:
-
QTZ315
-
Warranty:
-
one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Standard mast:
-
2x2x3 m
-
colour:
-
according to customer's needs
-
Working environment:
-
-20℃ - +40 ℃
-
Certification:
-
CE and GOST certification

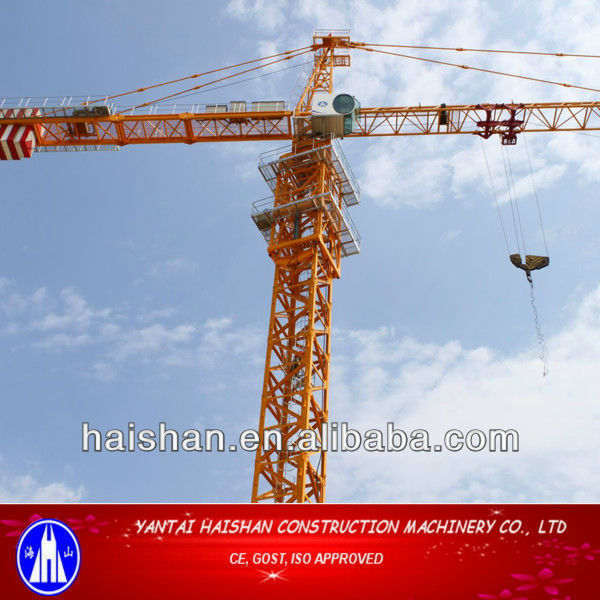

16T Tower Crane for Sales
We are a tower crane manufacture has more than 20 years history and have exported products to more than 30 countries. Our products has passed ISO9001 quality management system, get CE and GOST certificates, so you could believe our qualit and our service.
QTZ315-HS7040 construction tower crane is one of the main products of HAISHAN brand, which has good quality and competitive price. The max. lifting capacity is 16ton, max. lifting height is 180m, boom length is 70m.
This kind of tower crane adopts French potain technology, the standard section could be split while delivery and save much freight.
The machine has complete set of safety device, which can guarantee the safe and high efficient operation of the equipment.
|
Technical Parameters |
QTZ315 |
||
|
HS7040A |
HS7040 |
||
|
Nominal Lifting Moment (KN.m) |
3150 |
||
|
Working Range (m) |
3.2-70 |
||
|
Max. Lifting Capacity (t) |
2 fall |
8 |
|
|
4 fall |
16 |
||
|
Free Standing Height (m) |
51.5 |
||
|
Attached Standing Height (m) |
183 |
||
|
Hoisting Speed (m/min) |
2 fall |
0-66 |
5-66 |
|
4 fall |
0-33 |
2.5-33 |
|
|
Slewing Speed (r/min) |
0-0.7 |
||
|
Radius Changing Speed (m/min) |
0-65 |
||
Our Photo Gallery
1. Three kinds of foundations
2. Lifting Mechanism
3. Luffing mechanism
4. Slewing mechanism
