Quick Details
-
Model Number:
-
SG-ZCM2050N
-
Technology:
-
NetWork
-
Megapixel:
-
1920*1080
-
Image Sensor:
-
1/1.8" CMOS
-
Lens:
-
6-300mm
-
Optical Zoom:
-
50x
-
Compression:
-
H.265/H.264H/H.264B
-
Protocol:
-
Onvif,GB28181,HTTP,RTSP,RTP,TCP,UDP
Quick Details
-
Special Features:
-
module
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Savgood
-
Model Number:
-
SG-ZCM2050N
-
Technology:
-
NetWork
-
Megapixel:
-
1920*1080
-
Image Sensor:
-
1/1.8" CMOS
-
Lens:
-
6-300mm
-
Optical Zoom:
-
50x
-
Compression:
-
H.265/H.264H/H.264B
-
Protocol:
-
Onvif,GB28181,HTTP,RTSP,RTP,TCP,UDP
|
|
|
|
Model:

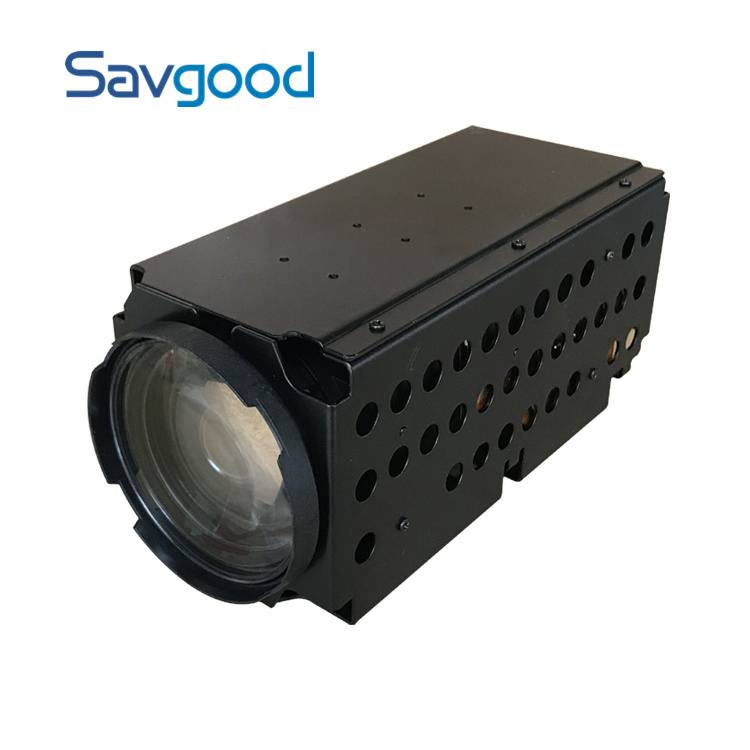

SG-ZCM2050N: 2MP 50x Zoom Network Block Camera
Features:
> 1/1.9” Sony Exmor CMOS Sensor.
> Powerful 50x optical zoom (6-300mm).
> Max. 2Mp(1920x1080) Resolution
> Support EIS and Defog(Optical Defog for optional)
> Support video output from the network port.
> Support various OSD information overlay.
> Accurate focus, high speed, great image effects, precise color reproduction, excellent night vision with low light effects.
Specification:
|
Model |
SG-ZCM2050N |
|
|
Sensor |
Image Sensor |
1/1.9" Sony Exmor CMOS |
|
Effective Pixels |
Approx. 2.38 Megapixel |
|
|
Max. Resolution |
1920(H)x1080(V) |
|
|
Lens |
Focal Length |
6mm~300mm, 50x Optical Zoom |
|
Aperture |
F1.4~F4.5 |
|
|
Close Focus Distance |
1m~1.5m (Wide~Tale) |
|
|
Angle of View |
58.4°~1.4° |
|
|
Video Network |
Compression |
H.265/H.264/H.264H/MJPEG |
|
Storage Capabilities |
TF card, up to 128G |
|
|
Network Protocol |
Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP |
|
|
Resolution |
50Hz: 50fps/25fps@2Mp(1920×1080), 25fps@1Mp(1280×720) 60Hz: 60fps/30fps@2Mp(1920×1080), 30fps@1Mp(1280×720) |
|
|
S/N Ratio |
≥55dB (AGC Off, Weight ON) |
|
|
Minimum Illumination |
Color: 0.001Lux/F1.4; B/W: 0.0001Lux/F1.4 |
|
|
EIS |
Electronic Image Stabilization (ON/OFF) |
|
|
Exposure Compensation |
ON/OFF |
|
|
Strong Light Suppression |
ON/OFF |
|
|
Day/Night |
Auto/Manual |
|
|
Zoom Speed |
Approx 6.5s(Optical Wide-Tele) |
|
|
Electronic Defog |
ON/OFF |
|
|
Optical Defog(Optional) |
Night Mode, 750nm~1100nm channel is Optical Defog |
|
|
White Balance |
Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium lamp Auto / Sodium lamp |
|
|
Electronic Shutter Speed |
Auto Shutter (1/3s~1/30000s) Manual Shutter (1/3s~1/30000s) |
|
|
Exposure |
Auto/Manual |
|
|
2D Noise Reduction |
Support |
|
|
3D Noise Reduction |
Support |
|
|
Flip |
Support |
|
|
External Control |
RS232 |
|
|
Communication Interface |
Compatible with the SONY VISCA Protocol |
|
|
Focus Mode |
Auto/Manual/Semi-automatic |
|
|
Digital Zoom |
4x |
|
|
Operating Conditions |
(-30°C~+60°C/20% to 80%RH) |
|
|
Storage Conditions |
(-40°C~+70°C/20% to 95%RH) |
|
|
Power Supply |
DC 12V±15% (Recommend: 12V) |
|
|
Power Consumption |
Static power: 4.5W, Sports power: 5.5W |
|
|
Dimensions(L*W*H) |
Approx. 175mm*72mm*77mm |
|
|
Weight |
Approx. 900g |
|
|
Type |
PIN Number |
PIN Name |
Description |
|
(1) 4PIN Internet Interface |
1 |
ETHRX- |
Internet RX- |
|
2 |
ETHRX+ |
Internet RX+ |
|
|
3 |
ETHTX- |
Internet TX- |
|
|
4 |
ETHTX+ |
Internet TX+ |
|
|
(2) 6PIN Power & UART Interface |
1 |
DC_IN |
DC12V±10% |
|
2 |
GND |
GND |
|
|
3 |
RXD1 |
RS232-RXD(TTL3.3V), Pelco Protocol |
|
|
4 |
TXD1 |
RS232-TXD(TTL3.3V), Pelco Protocol |
|
|
5 |
RXD0 |
RS232-RXD(TTL3.3V), Visca Protocol |
|
|
6 |
TXD0 |
RS232-TXD(TTL3.3V), Visca Protocol |
|
|
(3) Audio & Video Interface |
1 |
AUDIO_OUT |
Audio Out(Line Out) |
|
2 |
GND |
GND |
|
|
3 |
AUDIO_IN |
Audio In(Line In) |
|
|
4 |
GND |
GND |
|
|
5 |
VIDEO_OUT |
Video Out(CVBS) |
