Quick Details
-
Max Sewing Speed:
-
1500RPM
-
Max Sewing Thickness:
-
80MM
-
Voltage:
-
380V 50HZ
-
Power:
-
7-11KW
-
Dimension(L*W*H):
-
5400*1600*2000MM
-
Weight:
-
5000
-
Name:
-
Computer Quilting Machine
-
Style:
-
Chain Stitch
-
Function:
-
Mattress Quilting
-
Needle Bar Space:
-
5" and 6"
-
Quilting Width:
-
2450MM
-
Motor:
-
Full Servo
-
Computer Language:
-
English,Spanish,Russian......
-
Feature:
-
Tack & Jump Quilting
-
Needle Space:
-
0.5 Inch or 1 Inch
-
Experience:
-
Manufacturer Since 2003
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Seanoel
-
Max Sewing Speed:
-
1500RPM
-
Max Sewing Thickness:
-
80MM
-
Voltage:
-
380V 50HZ
-
Power:
-
7-11KW
-
Dimension(L*W*H):
-
5400*1600*2000MM
-
Weight:
-
5000
-
Name:
-
Computer Quilting Machine
-
Style:
-
Chain Stitch
-
Function:
-
Mattress Quilting
-
Needle Bar Space:
-
5" and 6"
-
Quilting Width:
-
2450MM
-
Motor:
-
Full Servo
-
Computer Language:
-
English,Spanish,Russian......
-
Feature:
-
Tack & Jump Quilting
-
Needle Space:
-
0.5 Inch or 1 Inch
-
Experience:
-
Manufacturer Since 2003

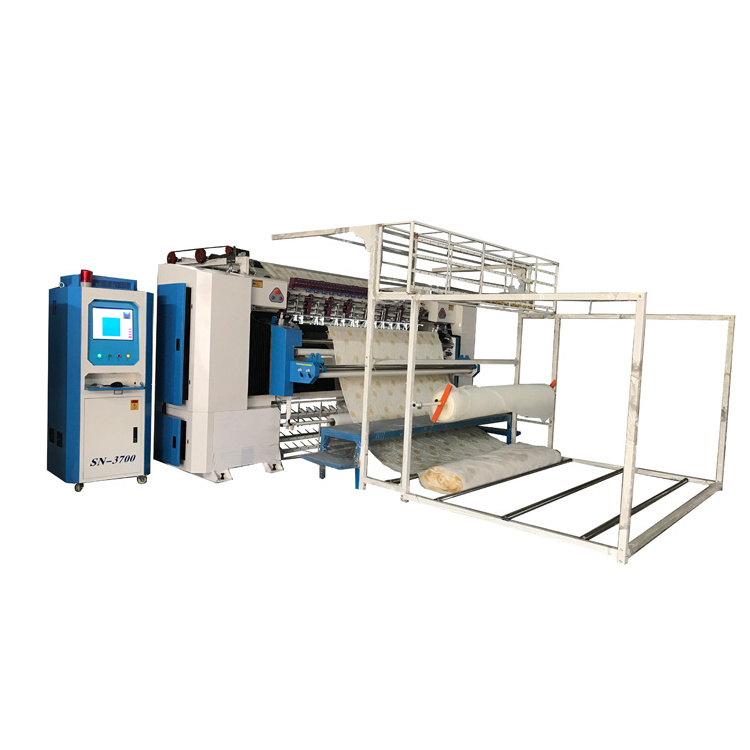

Computer Multi Head Chain Stitch Quilting Machine
SN-2700
SN-3200
SN-3700
- 1.Computer Chain Stitch Multi Needle Quilting Machine For Mattress
- 2. Adopting chain stitch quilting mechanism, avoiding frequently replacing bottom thread, and making the quilting stitches much firmer.
- 3.Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
- 4.Automatic stop motion control in case the top thread or the bottom thread breaks，automatic needle-lifting and CNC speed adjustment
- 5.CNC precision control system, no need to adjust the press plate's position when the thickness of quilting material varies
- 6.Strong functions of pattern-combining and Tack & Jump quilting to enable you to quilt different patterns in same row of the mattresses
- 7.Fault detection function for ease of determining the running state of the machine at any given time
- 8.Easy preparation of CAD drawings extremely precise
- 9.Multi span and independent patterns(360°and 180°patterns are available)
- 10.Language can be customized, All kinds of language
Warranty
- 1.All parts are guaranteed one year for non-human-made damage
- 2.After one year, all parts was provide without profit
- 3.Before buying, our businessman online 12 hours every working day to answer your questions
- 4.In production,production pictures and videos are available any time
- 5.After buying,our engineer online 10 hours every working day to help you use machine correctly
- 6.We provide details machine installation & user’s guide and maintenance manual
|
Model
|
SN-2700
|
SN-3200
|
SN-3700
|
||
|
Dimension(L×W×H)
|
5400×1650×2050mm
|
|
|
||
|
Quilting width
|
2400mm
|
|
|
||
|
Space between needle rows
|
50.8,76.2,127(5”) 76.2,76.2,152.4（6” ）
|
|
|
||
|
Space between needles
|
25.4
|
|
|
||
|
X-axis movement displacement
|
308.4
|
|
|
||
|
Max Thickness of quilting
|
60MM
|
80MM
|
80MM
|
||
|
Stitch length
|
3-8
|
|
|
||
|
Speed of operation
|
60-230
|
60-300
|
680-330
|
||
|
Model of needle
|
24/180 23/160 22/140 21/130
|
|
|
||
|
Quilting speed
|
1000RPM
|
1200RPM
|
1200RPM
|
||
|
Total power
|
7KW
|
8KW
|
9KW
|
||
|
Voltage
|
220V 60HZ 380V 50HZ
|
|
|
||
|
Gross weight
|
4000KG
|
5000KG
|
5500KG
|
||
FAQ
Q1:
Warranty,Quality and Service
A:We provide one year warranty,within one year,If machine damaged,we provide parts free;
And we provide online guidance within 12 hours,lifetime service
Q2: Experience,Professional and Engineer
A:We are a home textile manufacturer with almost 20 years experience,Our engineer online eight hours every day,we will give best
guide before buying and after buying
Q3: Trust and Safety
A:We are a family business group,all of us working in this market and can only working in this field,we must do our best because
there is no way of escape,no matter when you have troubles,you can find us always
Q4: Advantage and Why choose us
A:We have are rich experience, professional team, never absent after-sales service
we helped many many customers in the world,we are growing up together with all of our customers
A:We provide one year warranty,within one year,If machine damaged,we provide parts free;
And we provide online guidance within 12 hours,lifetime service
Q2: Experience,Professional and Engineer
A:We are a home textile manufacturer with almost 20 years experience,Our engineer online eight hours every day,we will give best
guide before buying and after buying
Q3: Trust and Safety
A:We are a family business group,all of us working in this market and can only working in this field,we must do our best because
there is no way of escape,no matter when you have troubles,you can find us always
Q4: Advantage and Why choose us
A:We have are rich experience, professional team, never absent after-sales service
we helped many many customers in the world,we are growing up together with all of our customers
