Quick Details
-
Model Number:
-
MS316B
-
Max. Current:
-
25A
-
Produact Name:
-
MS316B Timer Switch
-
Switching capacity:
-
25A 250VAC
-
Number of operation:
-
68 ON/OFF
-
Min setting time:
-
1 minute
-
Power consuption:
-
≤2w
-
Bell time:
-
1-99s
-
Display:
-
LCD
-
Product Certifications:
-
VOV Certificate of Conformity,CE
-
Battery life:
-
3 years
-
Ambient temperature:
-
-10℃~40℃
-
Certification:
-
ce
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Manhua
-
Model Number:
-
MS316B
-
Max. Current:
-
25A
-
Produact Name:
-
MS316B Timer Switch
-
Switching capacity:
-
25A 250VAC
-
Number of operation:
-
68 ON/OFF
-
Min setting time:
-
1 minute
-
Power consuption:
-
≤2w
-
Bell time:
-
1-99s
-
Display:
-
LCD
-
Product Certifications:
-
VOV Certificate of Conformity,CE
-
Battery life:
-
3 years
-
Ambient temperature:
-
-10℃~40℃
-
Certification:
-
ce

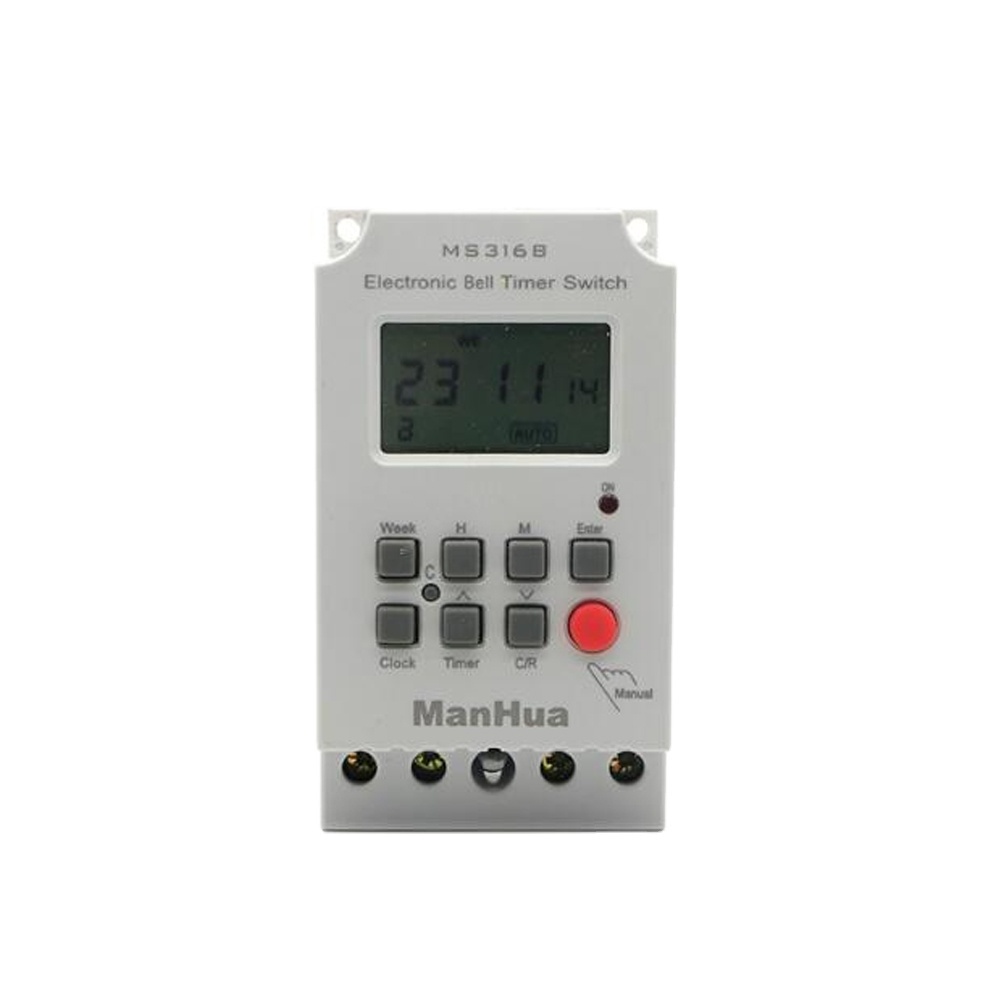

Muslim School Bell Time Timer Controller MS316B Programmable Timer Switch
| MUSLIM DATE SETTING | |
| 1- | MO TU WE TH SU |
| 2- | FR SA |
| 3- | SU |
| 4- | MO |
| 5- | TU |
| 6- | WE |
| 7- | TH |
| 8- | FR |
| 9- | SA |
Dimensions
♦Features
1- It widely applies to the time control of the equipments, streetlight, warehouse,
farming, heating and TV.
2- The battery inside, of the industrial clall chips, is precisely control, highly against disturb.
♦Opertion ways
1- Press the buttom of clock,meanwhile press"date,hour, min" to adjust the time
2- Set on/off time
♦Attention
1- It should tighten the screw, to against the contact heating when the big current.
2- Control input wires is 220VAC 50/60HZ,it could not work with the voltage of 380VAC.
3- The voltage 12V,24V,AC110V,380V, could be made.
4- The control is on red light when the electricty is on.Red light and green light is on the same time when the load has the eletricity output.
5- The time set, it could not be mixed to set.It should follow the time sequence.
If you are interested in our products , please feel free to contact with us ,we will try our best to meet your demand.
