Quick Details
-
Jacket:
-
Polyolefin
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WUCAI
-
Model Number:
-
CJPF96/SC
-
Product name:
-
marine power cable unarmored 600/1000v
-
Conductor:
-
stranded tinned annealed copper
-
Insulation:
-
XLPE Insulation
-
Inner Sheath:
-
Polyolefin
-
Outer Sheath:
-
Polyolefin
-
Armour:
-
Tinned steel wire braids
-
Core:
-
1~37
-
Voltage:
-
0.6/1kV
-
Certificate:
-
ABS CCA BV GL
-
Applications:
-
Marine
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Marine
-
Conductor Material:
-
Copper
-
Jacket:
-
Polyolefin
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WUCAI
-
Model Number:
-
CJPF96/SC
-
Product name:
-
marine power cable unarmored 600/1000v
-
Conductor:
-
stranded tinned annealed copper
-
Insulation:
-
XLPE Insulation
-
Inner Sheath:
-
Polyolefin
-
Outer Sheath:
-
Polyolefin
-
Armour:
-
Tinned steel wire braids
-
Core:
-
1~37
-
Voltage:
-
0.6/1kV
-
Certificate:
-
ABS CCA BV GL
-
Applications:
-
Marine
Products Description

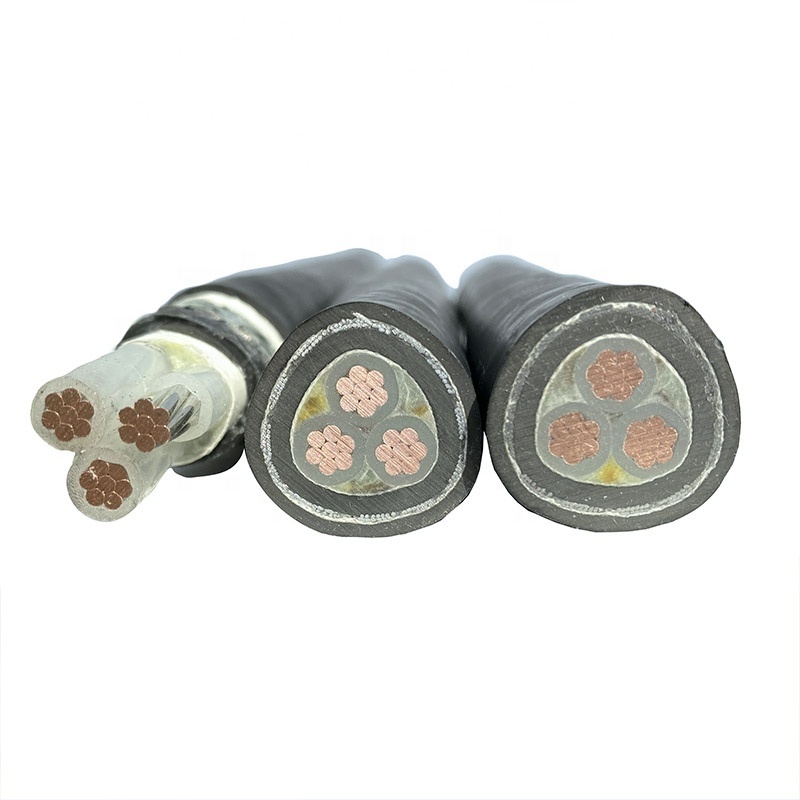

shipboard cables 3 core marine steering cable
Specifications:
Cable Type: CJ85/SC,CJ86/SC,CJPF86/SC,CJPJ95/SC,CJPF96/SC. Rated Voltage:0.6/1kV ;
1. Product execution standard:
IEC 60092-350, IEC 60092-353.
2, product application scope:
Marine power cables can be used for electric lighting and general control devices of various ships and offshore oil platforms. It is also applicable to metallurgical, chemical, electric power and other industrial and mining enterprises.
3. Product usage characteristics:
3.1. Rated voltage: 0.6/1kV
3.2. The maximum allowable operating temperature of the conductor is 90℃, and the maximum short-circuit temperature of the conductor (short circuit time not exceeding 5s) is 250℃.
3.3. Minimum bending radius during cable installation: 6D
3.4. Cable installation environment temperature: ≥0℃; Ambient temperature: -15 ° C to 70 ° C.
3.5. Power frequency voltage resistance: 3.5kV/5min, no breakdown.
4, cable main technical indicators:
4.1 Conductor structure: tinned copper wire, in accordance with GB/T 3956 second stranded conductor.
4.2. Fire resistance: mica belt.
4.3 Insulation material: cross-linked polyethylene, in accordance with the relevant requirements of IEC 60092-360.
4.4. Core identification: white insulation and black digital code.
4.5. Inner jacket: low-smoke halogen-free non-cross-linked polyolefin, in accordance with the relevant requirements of IEC 60092-360.
4.6. Armor: tinned copper wire braid.
4.7. Sheath: low-smoke halogen-free non-cross-linked polyolefin, in accordance with IEC 60092-360 requirements.
Details Images
|
Rated voltage
|
specifications
|
Reference diameter(mm)
|
Reference weight kg/km
|
|
0.6/1kV
|
1*1
|
8.5
|
103
|
|
0.6/1kV
|
1*1.5
|
8.8
|
112
|
|
0.6/1kV
|
1*2.5
|
9.2
|
130
|
|
0.6/1kV
|
1*4
|
9.7
|
152
|
|
0.6/1kV
|
1*6
|
10.3
|
180
|
|
0.6/1kV
|
1*10
|
11.2
|
233
|
|
0.6/1kV
|
1*16
|
13.0
|
318
|
|
0.6/1kV
|
1*25
|
14.7
|
481
|
|
0.6/1kV
|
1*35
|
16.1
|
598
|
|
0.6/1kV
|
1*50
|
18.0
|
765
|
|
0.6/1kV
|
1*70
|
20.0
|
1008
|
|
0.6/1kV
|
1*95
|
22.3
|
1318
|
|
0.6/1kV
|
1*120
|
24.4
|
1605
|
|
0.6/1kV
|
1*150
|
26.7
|
1945
|
|
0.6/1kV
|
1*185
|
29.0
|
2392
|
|
0.6/1kV
|
1*240
|
32.6
|
3020
|
|
0.6/1kV
|
1*300
|
36.0
|
3791
|
|
0.6/1kV
|
2*1
|
11.6
|
206
|
|
0.6/1kV
|
2*1.5
|
12.4
|
244
|
|
0.6/1kV
|
2*2.5
|
13.8
|
291
|
|
0.6/1kV
|
2*4
|
14.8
|
349
|
|
0.6/1kV
|
2*6
|
16.2
|
431
|
|
0.6/1kV
|
2*10
|
18.4
|
579
|
|
0.6/1kV
|
2*16
|
20.4
|
776
|
|
0.6/1kV
|
2*25
|
24.6
|
1141
|
|
0.6/1kV
|
2*35
|
27.4
|
1466
|
|
0.6/1kV
|
2*50
|
31.0
|
1885
|
|
0.6/1kV
|
2*70
|
36.0
|
2634
|
|
0.6/1kV
|
2*95
|
40.2
|
3436
|
|
0.6/1kV
|
2*120
|
44.0
|
4209
|
|
0.6/1kV
|
3*1
|
12.3
|
224
|
|
0.6/1kV
|
3*1.5
|
13.5
|
267
|
|
0.6/1kV
|
3*2.5
|
14.4
|
325
|
|
0.6/1kV
|
3*4
|
15.7
|
397
|
|
0.6/1kV
|
3*6
|
17.2
|
506
|
|
0.6/1kV
|
3*10
|
19.3
|
694
|
|
0.6/1kV
|
3*16
|
21.8
|
958
|
|
0.6/1kV
|
3*25
|
26.1
|
1401
|
|
0.6/1kV
|
3*35
|
28.9
|
1801
|
|
0.6/1kV
|
3*50
|
32.9
|
2351
|
|
0.6/1kV
|
3*70
|
38.2
|
3319
|
|
0.6/1kV
|
3*95
|
42.9
|
4361
|
|
0.6/1kV
|
3*120
|
47.0
|
5360
|
|
0.6/1kV
|
3*150
|
51.9
|
6529
|
|
0.6/1kV
|
3*185
|
57.6
|
8073
|
|
0.6/1kV
|
4*1
|
13.7
|
267
|
|
0.6/1kV
|
5*1
|
14.6
|
301
|
|
0.6/1kV
|
7*1
|
15.7
|
339
|
|
0.6/1kV
|
10*1
|
19.2
|
467
|
|
0.6/1kV
|
12*1
|
19.7
|
511
|
|
0.6/1kV
|
14*1
|
20.5
|
556
|
|
0.6/1kV
|
16*1
|
21.4
|
605
|
|
0.6/1kV
|
19*1
|
22.7
|
681
|
|
0.6/1kV
|
24*1
|
26.2
|
835
|
|
0.6/1kV
|
27*1
|
26.9
|
898
|
|
0.6/1kV
|
30*1
|
27.7
|
959
|
|
0.6/1kV
|
33*1
|
28.8
|
1037
|
|
0.6/1kV
|
37*1
|
29.7
|
1106
|
|
0.6/1kV
|
4*1.5
|
14.4
|
303
|
|
0.6/1kV
|
5*1.5
|
15.6
|
344
|
|
0.6/1kV
|
7*1.5
|
16.6
|
401
|
|
0.6/1kV
|
10*1.5
|
20.4
|
554
|
|
0.6/1kV
|
12*1.5
|
20.9
|
598
|
|
0.6/1kV
|
14*1.5
|
22.2
|
666
|
|
0.6/1kV
|
16*1.5
|
23.2
|
740
|
|
0.6/1kV
|
19*1.5
|
24.2
|
809
|
|
0.6/1kV
|
24*1.5
|
28.4
|
1011
|
|
0.6/1kV
|
27*1.5
|
28.9
|
1090
|
|
0.6/1kV
|
30*1.5
|
29.8
|
1167
|
|
0.6/1kV
|
33*1.5
|
30.8
|
1249
|
|
0.6/1kV
|
37*1.5
|
32.4
|
1370
|
|
0.6/1kV
|
4*2.5
|
15.6
|
375
|
|
0.6/1kV
|
5*2.5
|
16.7
|
440
|
|
0.6/1kV
|
7*2.5
|
18.0
|
519
|
|
0.6/1kV
|
10*2.5
|
22.4
|
736
|
|
0.6/1kV
|
12*2.5
|
23.0
|
803
|
|
0.6/1kV
|
14*2.5
|
24.0
|
885
|
|
0.6/1kV
|
16*2.5
|
25.5
|
987
|
|
0.6/1kV
|
19*2.5
|
26.8
|
1103
|
|
0.6/1kV
|
24*2.5
|
31.4
|
1396
|
|
0.6/1kV
|
27*2.5
|
32.0
|
1494
|
|
0.6/1kV
|
30*2.5
|
33.0
|
1608
|
|
0.6/1kV
|
33*2.5
|
34.3
|
1746
|
|
0.6/1kV
|
37*2.5
|
35.4
|
1980
|
