Quick Details
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunrain/OEM
-
Model Number:
-
BYC-TH1
-
Function:
-
Swimming Pool Heating Cooling
-
Keyword:
-
Inverter Heat Pump
-
Heating capacity:
-
7/10/13/17KW
-
Voltage:
-
220V 50Hz/60HZ
-
Compressor:
-
Mitsubishi* DC Inverter Compressor
-
Refrigerant type:
-
R32
-
Color:
-
White/ Grey/ Black
-
Heat source:
-
Air Source 75%+electricity25%
-
Max Hot Water Temperature:
-
40 Degrees
-
OEM Service:
-
Avaliable
Quick Details
-
Warranty:
-
2 years
-
Application:
-
Outdoor, Hotel, Commercial, Household
-
Power Source:
-
Electric
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunrain/OEM
-
Model Number:
-
BYC-TH1
-
Function:
-
Swimming Pool Heating Cooling
-
Keyword:
-
Inverter Heat Pump
-
Heating capacity:
-
7/10/13/17KW
-
Voltage:
-
220V 50Hz/60HZ
-
Compressor:
-
Mitsubishi* DC Inverter Compressor
-
Refrigerant type:
-
R32
-
Color:
-
White/ Grey/ Black
-
Heat source:
-
Air Source 75%+electricity25%
-
Max Hot Water Temperature:
-
40 Degrees
-
OEM Service:
-
Avaliable
Heat Pump Swimming Pool Heaters
Why Use a Heat Pump for Water Heating?
Think of a gas heater as a muscle car and a heat pump as a bike. A gas heater will definitely heat your pool faster, but you’ll pay a price for it when the energy bill comes. On the other hand, a heat pump will provide an even and consistent heat once it reaches your ideal temperature, operating with much less effort.
A premium heat pump model won’t just heat your pool, but also keep the water cooler when the weather is too hot outside.
Specification

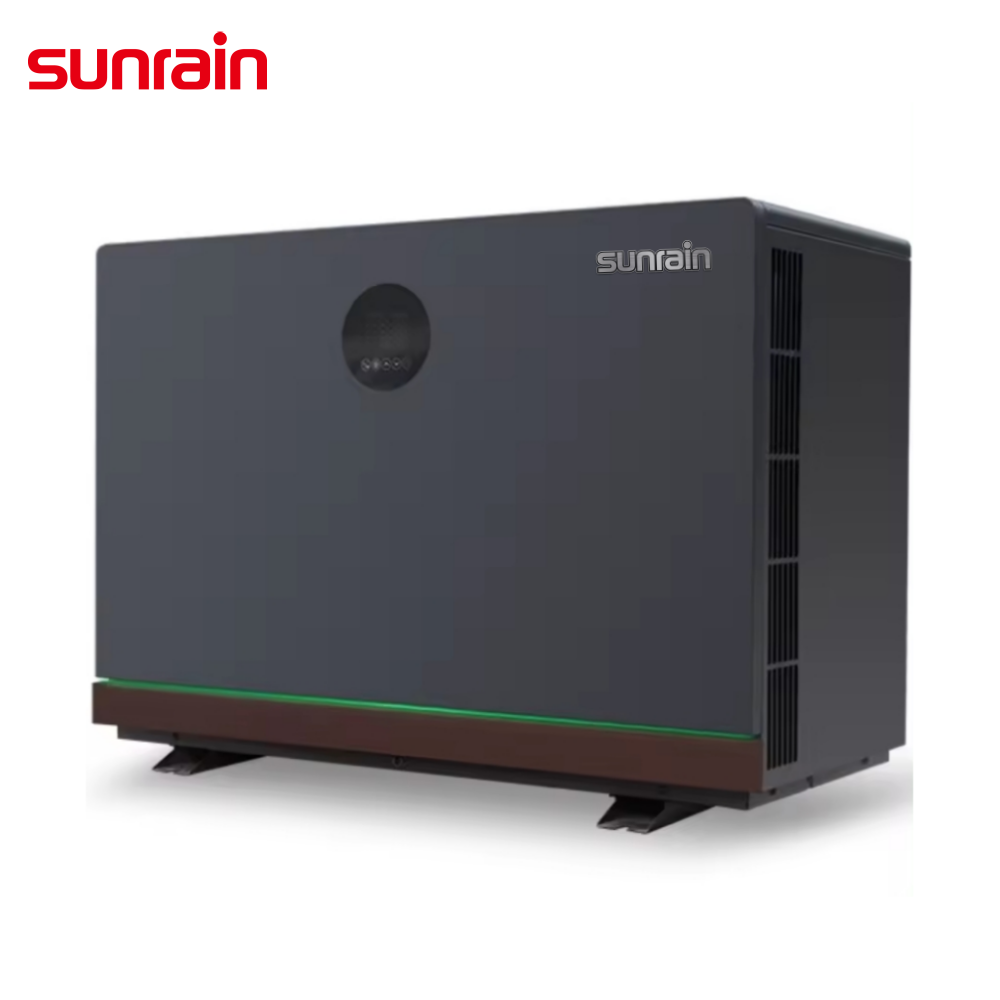

The SUNRAIN R32 DC Inverter Air To Water Heat Pump Swimming Pool Heaters
Heating Capacity: 7KW/10KW/13KW/17KW
Fully Inverter Driven Heat Pump R32 Outdoor Pool Water heater
✔ With MITUBISHI compressor
✔ Titanium heat-exchanger, corrosion resistance.
✔ High pressure protection function.
✔ Defrost automatically, intelligent and fast.
✔ Titanium heat-exchanger, corrosion resistance.
✔ High pressure protection function.
✔ Defrost automatically, intelligent and fast.
✔ With water flow switch.
✔ The heat pump can heat and cool the swimming pool.
✔ With DC INVERTER.
Full Inverter Technology+Energy Savings
The home heating and cooling industries frequently use full inverter technology,which precisely controls the compressor and fan,turning a heat pump into a smart pump.
Unlike a traditional heat pump,the Full Inverter compressor starts up gradually. If the pool's actual temperature is higher than the set temperature, an automated regulator helps the heat pump raise the temperature more quickly.In order to maintain the desired temperature during the swimming season, the heat pump uses less energy.
Unlike a traditional heat pump,the Full Inverter compressor starts up gradually. If the pool's actual temperature is higher than the set temperature, an automated regulator helps the heat pump raise the temperature more quickly.In order to maintain the desired temperature during the swimming season, the heat pump uses less energy.
Everything On One App
Heating, Cooling & Automatic Modes
Spans a broad range of operating environment temperatures as well as target water temperatures, with heating, cooling, and automated modes included.
Silence Mode
At one meter, the sound pressure of the R32 Inver Premium Series Inverter Pool Heat Pump is 39dB(A).
When the temperature remains constant, the inverter technology's components—the compressor and fan—operate at extremely low speeds, lowering the sound level to only air movement (about 39 dB(A)).
When the temperature remains constant, the inverter technology's components—the compressor and fan—operate at extremely low speeds, lowering the sound level to only air movement (about 39 dB(A)).
Parameters
|
Model No.
|
BYC-007TH1
|
BYC-010TH1
|
BYC-013TH1
|
BYC-017TH1
|
BYC-021TH1
|
|||||
|
* Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out
|
|
|
|
|
|
|||||
|
Heating Capacity (kW)
|
7.0~1.7
|
9~2.3
|
12.5~3.0
|
16.5~3.8
|
20.5~4.8
|
|||||
|
Power Input (kW)
|
1.04~0.12
|
1.34~0.16
|
1.84~0.21
|
2.46~0.25
|
3.06~0.32
|
|||||
|
COP
|
14.5~6.7
|
14.3~6.7
|
14.5~6.8
|
15~6.7
|
15~6.7
|
|||||
|
* Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out
|
|
|
|
|
|
|||||
|
Heating Capacity (kW)
|
5.3~1.3
|
6.8~1.7
|
9.3~2.2
|
12.3~2.8
|
15.0~3.5
|
|||||
|
Power Input (kW)
|
1.06~0.17
|
1.39~0.23
|
1.86~0.29
|
2.51~0.37
|
3.06~0.47
|
|||||
|
COP
|
7.5~5.0
|
7.5~4.9
|
7.5~5.0
|
7.5~4.9
|
7.5~4.9
|
|||||
|
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out
|
|
|
|
|
|
|||||
|
Cooling Capacity (kW)
|
3.7~1.0
|
4.9~1.4
|
6.5~1.8
|
8.2~2.3
|
10.2~2.8
|
|||||
|
Power Input (kW)
|
1.0~0.15
|
1.32~0.21
|
1.76~0.27
|
2.22~0.35
|
2.76~0.42
|
|||||
|
EER
|
6.6~3.7
|
6.6~3.7
|
6.6~3.7
|
6.6~3.7
|
6.6~3.7
|
|||||
|
* General data
|
|
|
|
|
|
|||||
|
Power supply
|
220~240V/1/50
|
|
|
|
|
|||||
|
Max Power Input (kW)
|
1.4
|
1.7
|
2.1
|
2.5
|
3.1
|
|||||
|
Max Current (A)
|
6.6
|
8.1
|
10
|
11.9
|
14.7
|
|||||
|
Water Flow Volume (m3/h)
|
2.5
|
3.5
|
4.5
|
5.5
|
6.5
|
|||||
|
Refrigerant
|
R32
|
|
|
|
|
|||||
|
Heat Exchanger
|
Titanium
|
|
|
|
|
|||||
|
Air Flow Direction
|
Horizontal
|
|
|
|
|
|||||
|
Kind of defrost
|
by 4 way valve
|
|
|
|
|
|||||
|
Working temp. range (℃)
|
-15~43
|
|
|
|
|
|||||
|
Casing Material
|
Aluminum alloy & Metal
|
|
|
|
|
|||||
|
Water Proof Level
|
IPX4
|
|
|
|
|
|||||
|
Noise level 1m dB(A)
|
37~46
|
38~47
|
40~49
|
41~51
|
41~52
|
|||||
|
Noise level 10m dB(A)
|
18~27
|
19~28
|
20~29
|
21~31
|
21~32
|
|||||
|
Net Weight (kg)
|
46
|
48
|
55
|
63
|
68
|
|||||
|
Gross Weight (kg)
|
56
|
58
|
65
|
73
|
78
|
|||||
|
Net Dimensions (mm)
|
870*420*640
|
|
|
1050*420*690
|
|
|||||
|
Package Dimensions (mm)
|
930*470*760
|
|
|
1110*470*810
|
|
|||||
Installation
Details Images
Our Workshop
Packing
Why Choose Us
Who are we?
Jiangsu Sunrain Solar Energy Co., Ltd, founded in 1999, is a globalized clean energy utilization company and one of the top 500 new energy enterprises in the world. (h
ttp://www.sunrain.com
)
In China, Sunrain is A-share main board listed company in new clean energy industry, with certified Enterprise Technology Center and CNAS National Certified Laboratory.
W
e have six production bases in China, and a
perfect industrial chain, processing plants and research& development centers. W
e will ramp up resources to develop more core technologies.
What can you buy from us?
Heat Pump, Solar Water Heater, Solar Collector, Energy storage battery, Water purification machine.
|
