Quick Details
-
Marketing Type:
-
New Product 2022
-
Work area:
-
380*380*100mm
-
Max payload:
-
7kg/5kg
-
Max travel speed:
-
500mm/sec(XY)/100mm/sec(Z)
-
Transfer method:
-
Stepper motor, belt, precision rail
-
XYZ position accuracy:
-
±0.008mm
-
Resolution:
-
0.01
-
Memory storage:
-
999 program setup (each program store up to 65535 spots)
-
Operating method:
-
LCD, Teach pendant
-
Motor:
-
Precision stepper motor
-
Product name:
-
Gluing Machines/glue dispenser/Glue Adhesive Dispensing Machine
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SECOND
-
Weight (KG):
-
48
-
Marketing Type:
-
New Product 2022
-
Work area:
-
380*380*100mm
-
Max payload:
-
7kg/5kg
-
Max travel speed:
-
500mm/sec(XY)/100mm/sec(Z)
-
Transfer method:
-
Stepper motor, belt, precision rail
-
XYZ position accuracy:
-
±0.008mm
-
Resolution:
-
0.01
-
Memory storage:
-
999 program setup (each program store up to 65535 spots)
-
Operating method:
-
LCD, Teach pendant
-
Motor:
-
Precision stepper motor
-
Product name:
-
Gluing Machines/glue dispenser/Glue Adhesive Dispensing Machine
Automatic desktop 300ml rtv silicone glue dispenser top quality industry appliance robot pvc glue dispensing machine
Product Overview
|
Model
|
|
SEC-E380
|
|
|
|||
|
Working range
|
|
380(X)*380*(Y)*100(Z)mm
|
|
|
|||
|
Max payload
|
|
7kg/5kg
|
|
|
|||
|
Max travel speed
|
|
500mm/sec(XY)/100mm/sec(Z)
|
|
|
|||
|
Transfer method
|
|
Stepper motor, belt, precision rail
|
|
|
|||
|
XYZ position accuracy
|
|
±0.008mm
|
|
|
|||
|
Resolution
|
|
0.01
|
|
|
|||
|
Memory storage
|
|
999 program setup (each program store up to 65535 spots)
|
|
|
|||
|
Operating method
|
|
LCD, Teach pendant
|
|
|
|||
|
Motor
|
|
Precision stepper motor
|
|
|
|||
|
Movement patterns
|
|
3 axis spot to spot, continue line, arc
|
|
|
|||
|
I/O
|
|
1 input, 4 output (support expansion)
|
|
|
|||
|
Power supply
|
|
AC220V 50/60Hz 0.5kw
|
|
|
|||
|
Working environment
|
|
Temperature 0-40℃, Humidity 20-90%
|
|
|
|||
|
Machine dimension
|
|
520*583*645mm
|
|
|
|||
|
weight
|
|
48kg
|
|
|
|||

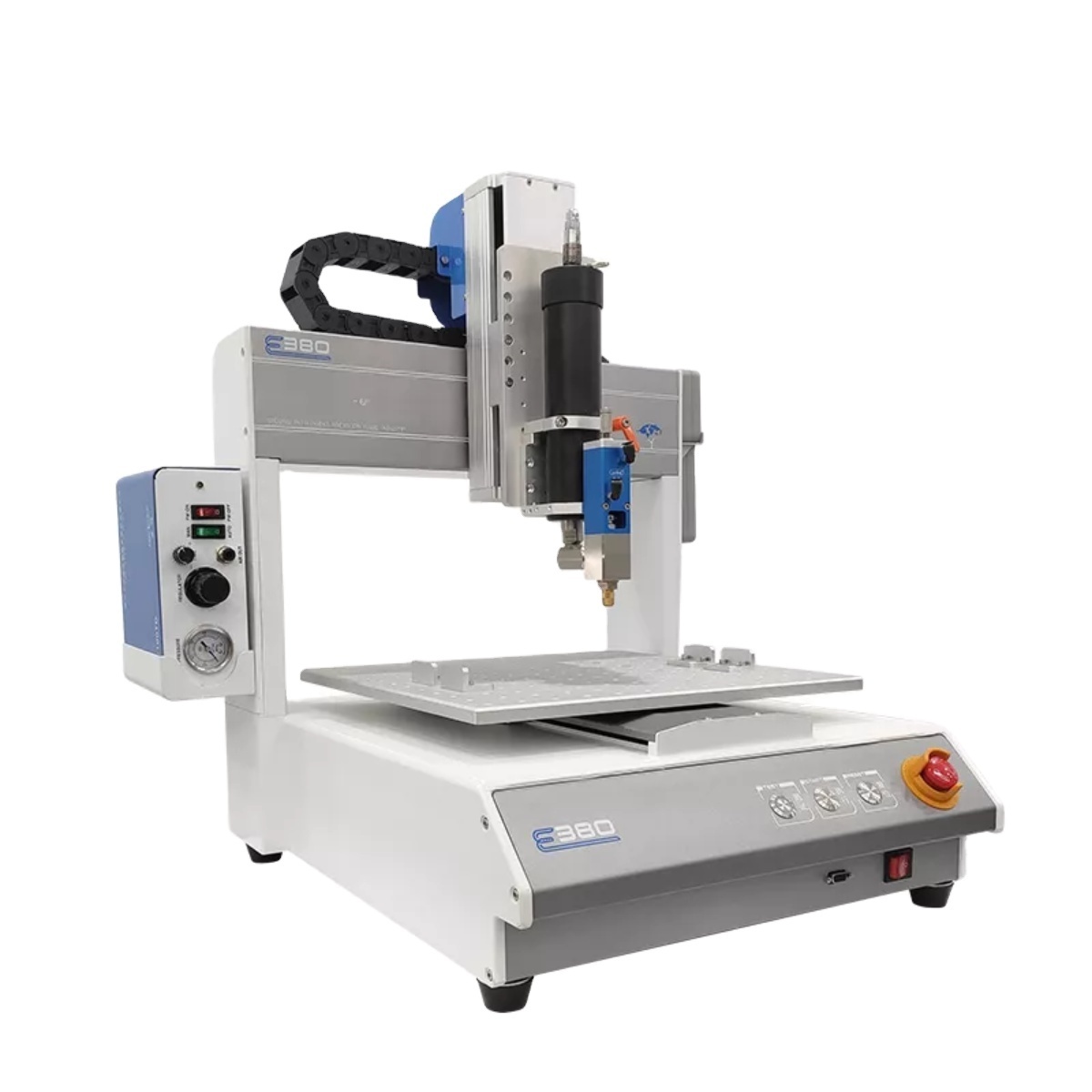

Automatic desktop 300ML silicone glue dispensing robots glue dispensing machine
* Features
This new machine’s main body is made out of one-piece aluminum casting molding, strong structure, stable and user friendly operation.
It provides 380x380x100mm maximum XYZ strokes for extra dispensing needs.
The machine is designed to adapt different type of dispensing applicators for different fluid or glue. Once your bought the Cartesian CNC machine, you just need to choose different applicators. It is really One for All. According to our research, with the seven different applicators, you are covering about 80% of the desktop dispensing needs.
The multi purposes clamping system allow to match with different material filling devices, and valves, and allow quick changeover. It achieves the dispensing of different products of different processes.
This is really a good machine from a reliable factory, with over 15 years focus business on the fluid and glue dispensing, potting industry.
Dispensing and potting are the precise manipulating between air, fluid, or adhesive, don’t waste your money on the cheap and non professional suppliers, you will end up buying many spare parts, and a new machine again.
multi-functional benchtop automatic 3 axis adhesive dispenser glue robots LED&LCD&PCB glue dispensing machine
• Max 380x380x100mm stroke
• Compacted machine dimensions (300mm machine dimensions)
• Bigger working stroke (380mm working table)
• One-piece casting body
• Multifunctional, reliable, simple
• User friendly, and low maintenance
Different dispensing applicators:
1. 30cc syringe dispenser (low viscosity)
2. 30cc drip-proof dispenser (low viscosity)
3. 300ml pneumatic cartridge dispenser (medium viscosity)
4. 300ml cylinder ceramic rotate dispenser (medium to high viscosity)
5. 30cc hot melt (resin, glue stick, chips)
6. 1.5 gallons dispenser
7. 2600ml dispenser
* Special Function : File inserting
Powerful system compatibility with the Logoshop software allow to import mainstream design software, such as Auto CAD, Coral Draw, etc.to generate a different file formats ( NC, .AI,.DXF,.JPG, BMP, scanner, etc.)
* 300 ML cartridge silicone RTV glue with suck-back valve glue dispenser
The machine can be used to dispense various type of fluid, adhesive materials for fixing or protecting PCB electronic parts. It can also be used for bonding of mobile phone and notebook cases, LCD glass, LED dispensing, Semiconductor sealing, optical lens dispensing, and packaging, automotive parts, hardware parts, and others.
* Dispensing controller
Applicable for any fluid
using with precise dispensing valve to improve precision.
Model: SEC-100TD
Volume : 226L*216D*67Hmm
Inlet pressure: 0~0.7Mpa
Dispensing Time: 0.01~31 sec ± 0.1%
Power supply: 110/220 VAC
Suitable for a variety of mixing ratio of glue, mixing and discharging speed can be adjusted.The part connecting liquid uses anti-corrosive materials which enables to stop glue outflow and suck it back. The valve is easy to install and operate.
Recommend Products
Our Advantages
Free Lab service
>>>please contact me for more details<<<
https://message.alibaba.com/msgsend/contact.htm?spm=a2700.details.0.0.36455cccCs2yAv&ac tion=contact_action&domain=1&id= 1600640782000&id_f=IDX1faLxpV45MNyaZsdzk6_O2fmvpp Vu5ECbs_MNPVfMRgJGzFSHI5uoGLQtmBRGT94Z&mloca=main_en_detail&tracelog=tracedetailfe edback&umidToken=B9ba96a2592b4554916678f52a9c4b155
Packing&Shipping
Machine will be boxed well and protected with proper Ply-wooden box.
Estimated Packing for 1 unit of SEC-E380.
1 Ply-wooden Box , 80*85*92CM, N.W. 70KGS. G.W. 105KGS. 0.626CBM.
