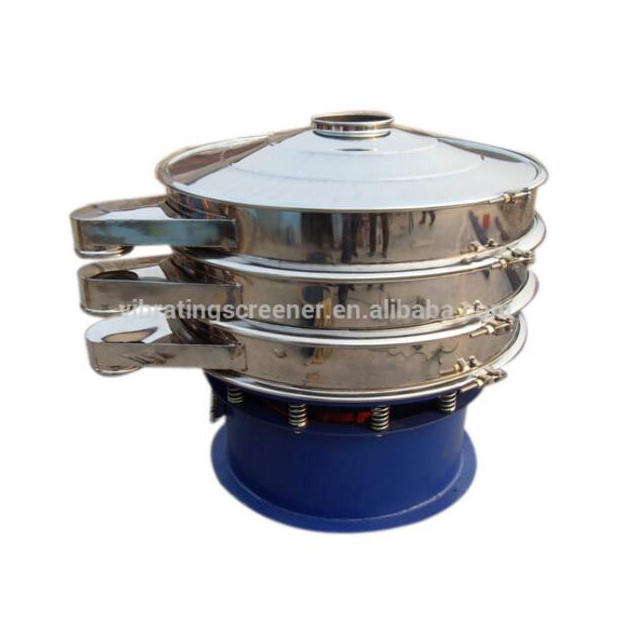

Glass Frit pharmaceutical vibration sieve machine

Glass Frit pharmaceutical vibration sieve machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1000

≥5 Pieces

US $600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 110V/220V/380V/400V/415V/440V/460V

Dimension(L*W*H):: 1150*1000*1200

Weight:: 380kg

Certification:: ISO CE

Product name:: Glass Frit pharmaceutical vibration sieve machine

Keyword:: pharmaceutical sieve machine

Function:: Screening\separation\sorting\sieving

Capacity:: 10Kg-10Tons/hour

Layer:: 1-5 Layers

Material:: Stainless Steel 304

Mesh size:: 2-500

Color:: Blue

Motor:: Vertical Vibrating Motor

Usage:: Separation Screening

Quick Details

Type:: Circular

Place of Origin:: China

Brand Name:: DAZHEN

Voltage:: 110V/220V/380V/400V/415V/440V/460V

Dimension(L*W*H):: 1150*1000*1200

Weight:: 380kg

Certification:: ISO CE

Product name:: Glass Frit pharmaceutical vibration sieve machine

Keyword:: pharmaceutical sieve machine

Function:: Screening\separation\sorting\sieving

Capacity:: 10Kg-10Tons/hour

Layer:: 1-5 Layers

Material:: Stainless Steel 304

Mesh size:: 2-500

Color:: Blue

Motor:: Vertical Vibrating Motor

Usage:: Separation Screening

Glass Frit pharmaceutical vibration sieve machine

Product Description

Dazhen DZ series vibro sifter machine is widely used in food, medicine, metallurgy, building materials, food, chemical, cement, glass, ceramics, and papermaking industries. In a word, dry and wet materials screening, filtering. It have the advantage of smooth vibration, the vibration force big, stable performance, network speed, light weight, simple operation, easy maintenance, etc.

Machine Structure

Working Principle

T echnical Parameters

Model		DZ-600	DZ-800	DZ-1000	DZ-1200	DZ-1500	DZ-1800	DZ-2000
Nominal diameter(mm)		Φ 600	Φ 800	Φ 1000	Φ 1200	Φ 1500	Φ 1800	Φ 2000
Effective screen diameter (mm)		Φ 540	Φ 720	Φ 916	Φ 1120	Φ 1420	Φ 1720	Φ 1920
Effective screen area(m2)		0.23	0.41	0.66	0.99	1.58	2.32	2.90
Screen mesh		2--500 mesh
Material size(mm)		<Φ 10	<Φ 15	<Φ 20		<Φ 30
Vibration frequency		1500rpm
Number of deck		1-3
Power (KW)	Vibrating motor	0.55	0.75	1.1	1.5	2.2	3.0	4.0

Main Features

(1) you can replace rapidly network layer without any tool, using the network layer to 8 layer;
(2) the time can be setting under automatic control, can be set 1 to 60 minutes;
(3) It applicable to any powder, liquid and granular;
(4) screen powder does not float in the sky, spray liquid not disorderly, granule not jump;
(5) use mesh 3.5 mesh to 400 mesh.
