Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tsinfa
-
Voltage:
-
380V
-
Weight (T):
-
2.7 T
-
Model Number:
-
TPS-160
-
Motor Power (kw):
-
7.5 kw
-
Color:
-
Customizable
-
Product name:
-

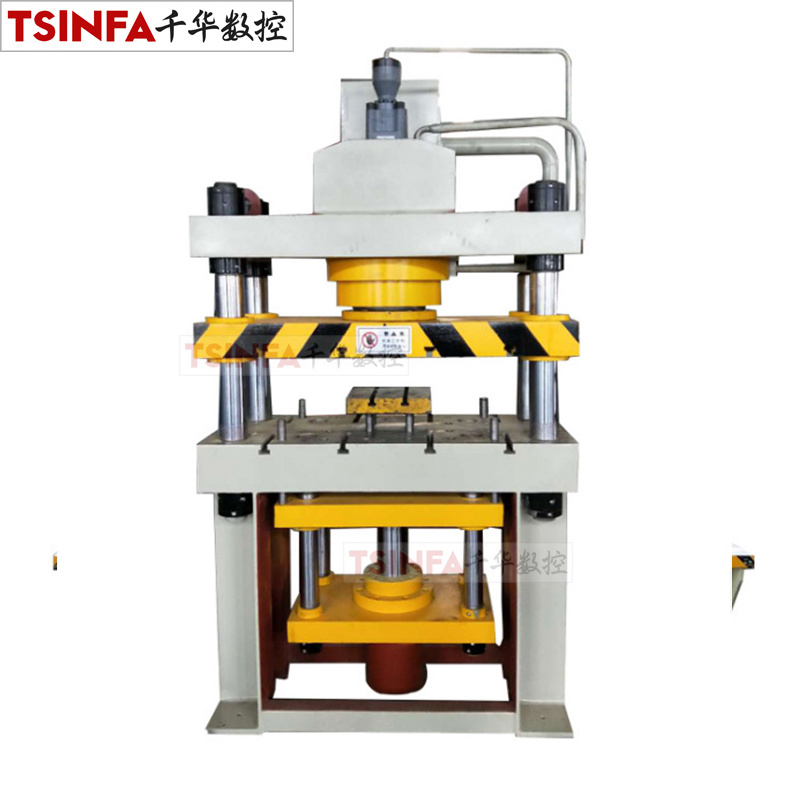

Four Column Hydraulic Press
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
Certification:
-
CE/ISO 9001
Quick Details
-
Machine Type:
-
Four-column Four-beam Hydraulic Press
-
Slide Stroke (mm):
-
500
-
Return Force (kN):
-
500 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tsinfa
-
Voltage:
-
380V
-
Weight (T):
-
2.7 T
-
Model Number:
-
TPS-160
-
Motor Power (kw):
-
7.5 kw
-
Color:
-
Customizable
-
Product name:
-
Four Column Hydraulic Press
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
Certification:
-
CE/ISO 9001
Recommend Products
Product Description
Application
TPS hydraulic press is suitable for the pressing process of deformable materials. Such as powder product forming, plastic product forming, cold (hot) extrusion metal forming, sheet drawing and cross pressing, bending, flanging, correction and other processes. There are four columns and two beams hydraulic press, four columns and three beams hydraulic press, four columns and four beams hydraulic press, etc
.
Specification
|
Model
|
TPS-63T
|
TPS-100TA
|
TPS-160TA
|
TPS-200TA
|
|
Capacity (kn)
|
630
|
1000
|
1600
|
2000
|
|
Pressure (MPa)
|
25
|
25
|
25
|
25
|
|
Travel ( mm)
|
400
|
300
|
500
|
500
|
|
Max. opening height (mm)
|
600
|
600
|
800
|
900
|
|
Column diameter (mm)
|
70
|
80
|
80
|
100
|
|
Table Size ( mm )
|
520*520
|
640*550
|
700*700
|
800*800
|
|
Machine height (mm)
|
2300
|
2300
|
3000
|
2835
|
|
Motor power(Kw)
|
5.5
|
5.5
|
7.5
|
7.5
|
|
Weight ( Kg)
|
1400
|
1900
|
2700
|
4000
|
|
Model
|
TPS-250TA
|
TPS-315TA
|
TPS-400TA
|
TPS-500T
|
|
Capacity (kn)
|
2500
|
3150
|
4000
|
5000
|
|
Pressure (MPa)
|
25
|
25
|
25
|
25
|
|
Travel ( mm)
|
500
|
500
|
600
|
900
|
|
Max. opening height (mm)
|
900
|
900
|
1000
|
1500
|
|
Column diameter (mm)
|
110
|
120
|
140
|
160
|
|
Table Size ( mm )
|
800*800
|
800*800
|
1000*1000
|
1400*1400
|
|
Machine height (mm)
|
3200
|
3500
|
3800
|
4350
|
|
Motor power(Kw)
|
11
|
15
|
18.5
|
15*2
|
|
Weight ( Kg)
|
5300
|
6200
|
9200
|
18000
|
|
Model
|
TPS-630T
|
TPS-1000T
|
TPS-1200T
|
TPS-1500T
|
|
Capacity (kn)
|
6300
|
10000
|
12000
|
15000
|
|
Pressure (MPa)
|
25
|
25
|
25
|
25
|
|
Travel ( mm)
|
900
|
900
|
700
|
1500
|
|
Max. opening height (mm)
|
1500
|
1500
|
1100
|
2000
|
|
Column diameter (mm)
|
180
|
220
|
220
|
250
|
|
Table Size ( mm )
|
1600*1200
|
2000*1500
|
2100*1600
|
4000*2000
|
|
Machine height (mm)
|
4550
|
6000
|
5500
|
6400
|
|
Motor power(Kw)
|
18.5*2
|
30*2
|
30*2
|
37*2
|
|
Weight ( Kg)
|
23000
|
39000
|
41000
|
98000
|
PROCESSING EXAMPLE
Quality Inspection
Packing & Delivery
Company Profie
Shandong Tsinfa CNC Equipment Co., Ltd specializes in high-end manufacturing and sales of CNC machine tools, machinery and agricultural machinery equipment design and research and development. the company under the jurisdiction of Industrial Park D Area, Tengzhou Shandong province.Our products cover precision CNC cylindrical grinding machines, face cylindrical grinders, CNC lathes, three-axis CNC machining centers, four-axis CNC machining centers, five-axis CNC machining centers, CNC Slotting machines, radial drilling machines, CNC cutting machines, boring machines, and ordinary lathes. Universal milling machine, agricultural mechanization equipment and so on. .
Our mission is to lead in innovation as a machine tool supplier. Supply machine tools with the features of energy-saving,
high-efficient and appropriate. To satisfy requirement for customer and to provide convenience for user, to create value for
society and to seek happiness for employees are our pursuits. Driving customer success and value creation is the key of TSINFA, we stick to giving top priority to the interest of customers by innovation of product’s design and processing technology.
Certifications
FAQ
Q:Your company's delivery time?
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
Q:Your payment?
A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.
Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer traing free of charge.
Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
Q:Your after-sales service?
A:1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
Q:Your payment?
A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.
Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer traing free of charge.
Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
Q:Your after-sales service?
A:1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
