Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
No brand
-
Product Name:
-
Unbraked Trailer Axle 1500kg Trailer Drop Axle for Sale
-
Material:
-
Steel
-
Type:
-
Straight & Drop
-
Application:
-
Trailer Parts
-
Capacity:
-
3500lbs
-
MOQ:
-
50sets
-
Surface treatment:
-
Painted Black
-
Quality:
-
100% Guaranteed
-
Package:
-
Pallet
-
Certificate:
-
ISO/TS16949
Quick Details
-
OE NO.:
-
S60-23700-1800
-
Max Payload:
-
3500lbs
-
Size:
-
5 Stud hub ,PCD:114.3mm, 2-3/8" hallow tube
-
Place of Origin:
-
China
-
Brand Name:
-
No brand
-
Product Name:
-
Unbraked Trailer Axle 1500kg Trailer Drop Axle for Sale
-
Material:
-
Steel
-
Type:
-
Straight & Drop
-
Application:
-
Trailer Parts
-
Capacity:
-
3500lbs
-
MOQ:
-
50sets
-
Surface treatment:
-
Painted Black
-
Quality:
-
100% Guaranteed
-
Package:
-
Pallet
-
Certificate:
-
ISO/TS16949
Unbraked Trailer Axle 1500kg Trailer Drop Axle for Sale
Welcome to Guilin Pengyuan
Unbraked Trailer Axle 1500kg Trailer Drop Axle for Sale

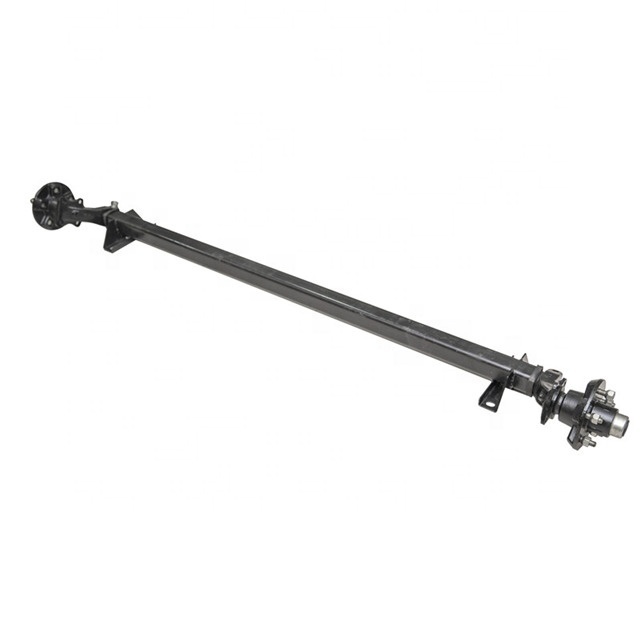

3,500 lb., 4" drop trailer axle assembly includes axle tube with spindles, castle nuts and cotter pins, electric brakes, cast iron 5 on 4½" hub/drums with bearings, seals, grease caps and lug nuts, double eye leaf springs with U-bolts, nuts and tie plates. Axle tube is 2-3/8" diameter x 3/16" wall round tubing. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.
More specifications:
|
Non-braked Straight Axle Assembly |
||||||
|
Item |
Capacity |
Axle Size |
Hub |
Stud/Nut |
PCD/mm |
Bearing |
|
SA39RxxN |
750KG |
39mm Round |
150 Hub |
5x1/2" |
114.3 |
LM67048/10;LM11949/10 |
|
SA39RxxG |
750KG |
39mm Round |
150 Hub |
5x1/2" |
114.3 |
LM67048/10;LM11949/10 |
|
SA40SxxN |
1000KG |
40mm Square |
190 Hub |
6x1/2" |
139.7 |
LM67048/10;LM11949/10 |
|
SA40xxG |
1000KG |
40mm Square |
190 Hub |
6x1/2" |
139.7 |
LM67048/10;LM11949/10 |
|
SA45xxN |
1500KG |
45mm Square |
190 Hub |
6x1/2" |
139.7 |
LM68149/10;LM12749/10 |
|
SA45xxG |
1500KG |
45mm Square |
190 Hub |
6x1/2" |
139.7 |
LM68149/10;LM12749/10 |
|
SA45RxxN |
1500KG |
45mm Round |
190 Hub |
6x1/2" |
139.7 |
LM68149/10;LM12749/10 |
|
SA45RxxG |
1500KG |
45mm Round |
190 Hub |
6x1/2" |
139.7 |
LM68149/10;LM12749/10 |
|
SA45SxxN |
1500KG |
40mm Square |
Parallel Hub |
6x1/2" |
139.7 |
LM68149/10;LM68149/10 |
|
SA45SxxG |
1500KG |
40mm Square |
Parallel Hub |
6x1/2" |
139.7 |
LM68149/10;LM68149/10 |
|
SA45RxxN |
1800KG |
45mm Round |
Parallel Hub |
6x1/2" |
139.7 |
LM68149/10;LM68149/10 |
|
SA45RxxG |
1800KG |
45mm Round |
Parallel Hub |
6x1/2" |
139.7 |
LM68149/10;LM68149/10 |
|
SA50SxxN |
1800KG |
50mm Square |
Dexter Hub |
6x1/2" |
139.7 |
25580/20;15123/245 |
|
SA50SxxG |
1800KG |
50mm Square |
Dexter Hub |
6x1/2" |
139.7 |
25580/20;15123/245 |
|
SA60RxxN |
3000KG |
63mm Round |
3 Ton |
6x8/5" |
139.7 |
30210/10;LM29748/10 |
|
SA60RxxG |
3000KG |
63mm Round |
3 Ton |
6x8/5" |
139.7 |
30210/10;LM29748/10 |
