Quick Details
-
Product name:
-
IP 4G Text Screen Alarm Hub
-
Application:
-
Smartsecurity
-
Function:
-
Home Security protection
-
Power supply:
-
DC12V
-
Warranty:
-
2 Years
-
Outdoor detector range:
-
100m in open air
-
Backup Battery:
-
7.4V 2000mA
-
PGM output:
-
1
-
Wireless zone:
-
64 wireless
-
Wired:
-
8
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DKMSEC
-
Model Number:
-
HA-VGT
-
Product name:
-
IP 4G Text Screen Alarm Hub
-
Application:
-
Smartsecurity
-
Function:
-
Home Security protection
-
Power supply:
-
DC12V
-
Warranty:
-
2 Years
-
Outdoor detector range:
-
100m in open air
-
Backup Battery:
-
7.4V 2000mA
-
PGM output:
-
1
-
Wireless zone:
-
64 wireless
-
Wired:
-
8
Product Description
HA-VGT TCP IP GSM Alarm System with TFT Color Screen
HA-VGT is a DIY, self monitoring home security system, with TCP IP and GSM network.
2.8’’ TFT color display, with voice list text menu for all operations.
Adding wireless devices and WiFi cameras via the app as soon as you connect to your Router, free cloud services all over the world. Users remote control via SMS, App and CMS client, which are all around to give home more protection. Commonly used in the residences, shops, and office.
HA-VGT is a DIY, self monitoring home security system, with TCP IP and GSM network.
2.8’’ TFT color display, with voice list text menu for all operations.
Adding wireless devices and WiFi cameras via the app as soon as you connect to your Router, free cloud services all over the world. Users remote control via SMS, App and CMS client, which are all around to give home more protection. Commonly used in the residences, shops, and office.
|
Low Battery Indication
|
Detector sends the status report to host panel every 1 to 3 hours, the corresponding Zone No. And voltage symbol will be display
on the LCD screen and also report to the CMS. |
|
Duress Password
|
The host can make the illusion of disarming when the user is threatened by the intruder, and actually still send an alarm message
to notify the alarm receiver. |
|
Zone Type Programmable
|
Users can program all preset zone types according to needs. Support delay zone, perimeter zone,internal zone, SOS, 24H, Fire
alarm. |
|
WiFi Cameras
|
Users can access to Meian WiFi cameras at unlimited quantities from App (Smart Security), each cameras can link to one of the
wireless and wired zone devices to alarm. Once triggered, users can browse the alarm video and alarm data from the App and alarm center. |
|
Zone Name Programmable
|
Users can edit each zone name as they like.
|
|
AC Off Notification
|
Once AC off, users are able to receive APP push and SMS
|
|
Center Monitoring Station
|
Police station or security companies can manage many device in one platform,and provide security service monthly or yearly to end
users. |
|
App
|
APP support free could service,users can check everything in their fingers
|
Specification
|
Art. no.:
|
HA-VGT
|
|
|
Dimensions:
|
(WxHxD) 280x205x74 mm
|
|
|
Housing material:
|
ABS+Full Touch Screen Tempered Glass Board
|
|
|
Installation Location
|
Indoor use , wall mounted.
|
|
|
Colorful LCD Size:
|
2.4'' Color LCD Screen
|
|
|
Menu guidance:
|
Full Voice-operated
Support Multi-languages From LCD Display |
|
|
|
|
|
|
System Network:
|
TCP IP+GSM/GPRS
|
|
|
Admin code
|
1
|
|
|
User code
|
15
|
|
|
Wireless alarm input
|
32
|
|
|
Wired alarm input
|
8
|
|
|
Expandable wired(bus) input:
|
disabled
|
|
|
Wireless remote controls/keypads
|
8
|
|
|
User voice phone
|
4
|
|
|
Wireless doorbell
|
1
|
|
|
Wireless switch(smart home)
|
16
|
|
|
Wireless siren
|
1 for two way siren, multiple for single way siren
|
|
|
Built-in siren:
|
Yes (85dB @ 1m)
|
|
|
PGM Output:
|
1
|
|
|
GSM Antenna:
|
Internal
|
|
|
Event log:
|
512
|
|
|
|
|
|
|
Radio frequency:
|
433MHz/868MHz for options
|
|
|
Max. receiving range (outdoors):
|
150 m
|
|
|
Max. receiving range (building):
|
100 m
|
|
|
Max. sending range (outdoors):
|
150 m
|
|
|
Max. sending range (building):
|
100 m
|
|
|
Power supply unit:
|
15V/2A
|
|
|
Built-in backup battery
|
11.1V/1000mah
|
|
|
Max. run time on backup power:
|
8h
|
|
|
|
|
|
|
GSM Dialing CMS Protocols:
|
Ademco Contact ID
|
|
|
CMS Platform Docking Protocol
|
SIA TCP-TCP/UDP, Private Protocol
|
|
|
GSM dialing number (CMS)
|
2
|
|
|
Anti-tamper
|
Yes
|
|
|
WebIE interface
|
Yes
|
|
Contact ID SIA DC09 Professional Burglar Alarm Panel color screen touch home alarm host WiFi Residential Intrusion Alarm System
4GSmart home alarm, W-Fi, GPRS network, SIA + Wi-Fi camera with iOS/Android app push notifications.Free cloud service.Allconfiguration can be done in app.Control your system via your smart phone App anytime and anywhere.
Home Monitor HD Pro Camera (Support 32 PCS With Meian WiFi Cameras)
With Wi-Fi and 4G network, Stable And More reliable.
With Wireless PIR Motion Detector, Door Magnetic Sensor, Remote Controller. All the Wireless Device With Lithium Battery. No Needto Change Battery frequenly. It can keep using for 3-5 Years.
With pet immunity, door open/closed notification, Low battery indication, Alarm video linkage functions.
Intercom for talking, timing arm/disarm.
◎ Wi-Fi+4G Module, 32 Wireless zones, 4 Wired zones,32 power-bus zone.
◎ 2.8''colorful LCD display, full touch screen with tempered glass surface.
◎ 2 CMS No.(contact ID), Meian Server & SIA-TCP,SIA-UDP.
◎ 8 remotes and keypads.16CH light switch.,1 admin pwd, 16 user pwd, 4 voice phone No.
◎ Low battery, sensor loss, door open/closed report,4 group timing arm/disarm.
◎ GSM frequency 850/900/1800/1900mhz, GSM with intercom function
◎ 512 alarm logs for inquiry and record. Daylight time and 24 hour time for options.
◎ IOS/Andriod mobile APP(P2P), Support unlimited WiFi cameras.

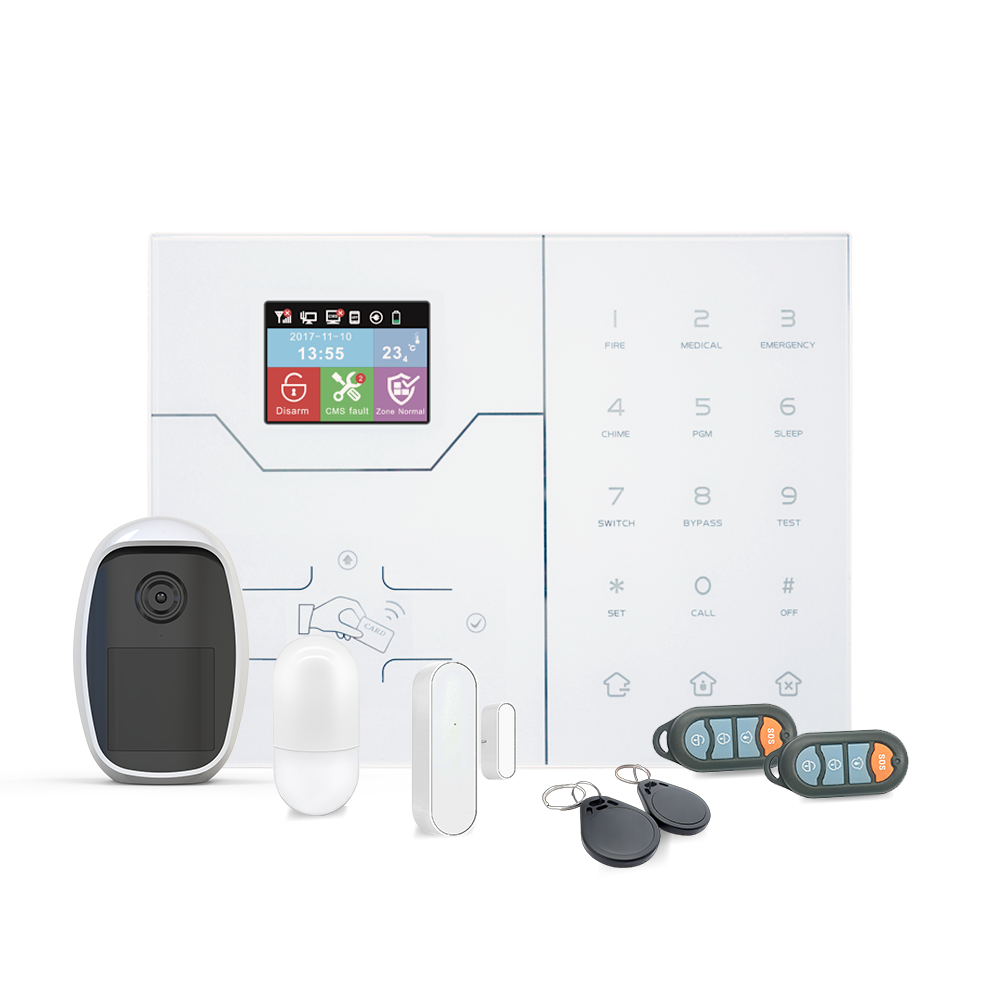

◎ Product Size:(L)253*(W)194*(H)35mm § Kit set includes: 1 x Panel, 1 x PIR, 1 x door sensor, 2 remotes, 2 RFID tags, 1x Smoke detector
Home Monitor HD Pro Camera (Support 32 PCS With Meian WiFi Cameras)
With Wi-Fi and 4G network, Stable And More reliable.
With Wireless PIR Motion Detector, Door Magnetic Sensor, Remote Controller. All the Wireless Device With Lithium Battery. No Needto Change Battery frequenly. It can keep using for 3-5 Years.
With pet immunity, door open/closed notification, Low battery indication, Alarm video linkage functions.
Intercom for talking, timing arm/disarm.
◎ Wi-Fi+4G Module, 32 Wireless zones, 4 Wired zones,32 power-bus zone.
◎ 2.8''colorful LCD display, full touch screen with tempered glass surface.
◎ 2 CMS No.(contact ID), Meian Server & SIA-TCP,SIA-UDP.
◎ 8 remotes and keypads.16CH light switch.,1 admin pwd, 16 user pwd, 4 voice phone No.
◎ Low battery, sensor loss, door open/closed report,4 group timing arm/disarm.
◎ GSM frequency 850/900/1800/1900mhz, GSM with intercom function
◎ 512 alarm logs for inquiry and record. Daylight time and 24 hour time for options.
◎ IOS/Andriod mobile APP(P2P), Support unlimited WiFi cameras.
◎ Product Size:(L)253*(W)194*(H)35mm § Kit set includes: 1 x Panel, 1 x PIR, 1 x door sensor, 2 remotes, 2 RFID tags, 1x Smoke detector
