Quick Details
-
Warranty:
-
one year, ONE YEAR
-
Brand Name:
-
SHUIWANG
-
Model Number:
-
2BEC Water Ring Vacuum Pump
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
120 hp-1600 hp
-
Cable Length:
-
According to customer requirements
-
Outlet Size:
-
According to customer requirements
-
Power:
-
90 kw-1250 kw, Electric
-
Material:
-
Cast Iron/Stainless Steel
-
Product name:
-

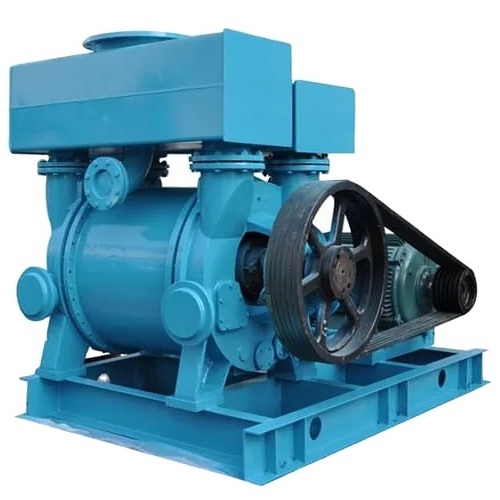

2BEC Series Water Ring Vacuum Pump and Compressors
-
Motor:
-
100% Copper Wire
-
Type:
-
2BEC Series Water Ring Vacuum Pump and Compressors
-
Name:
-
2BE high pressure air water ring vacuum pump price
-
Usage:
-
Single-stage water ring vacuum pump
-
Fuel:
-
Electric
Quick Details
-
Application:
-
Other, Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure or Low Pressure
-
Voltage:
-
380V/415V/660V/1140V
-
Warranty:
-
one year, ONE YEAR
-
Brand Name:
-
SHUIWANG
-
Model Number:
-
2BEC Water Ring Vacuum Pump
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
120 hp-1600 hp
-
Cable Length:
-
According to customer requirements
-
Outlet Size:
-
According to customer requirements
-
Power:
-
90 kw-1250 kw, Electric
-
Material:
-
Cast Iron/Stainless Steel
-
Product name:
-
2BEC Series Water Ring Vacuum Pump and Compressors
-
Motor:
-
100% Copper Wire
-
Type:
-
2BEC Series Water Ring Vacuum Pump and Compressors
-
Name:
-
2BE high pressure air water ring vacuum pump price
-
Usage:
-
Single-stage water ring vacuum pump
-
Fuel:
-
Electric
|
|
Specification
|
|
|
|
U
ltimate pressure:
|
160hPa
|
|
|
|
Max.pumping capacity
|
74-1140m
3
/min
|
|
|
|
Power P
|
90-1250KW
|
|
|
|
Motor
|
Brand optional,100% Copper Wire
|
|
|
|
Voltage
|
380V/415V/660V/1140V
|
|
|
|
Material
|
Cast Iron/SS316/SS304/Copper,Can be customized
|
|
|
|
Scope of supply
|
Pump,Motor,Coupling,Base,
Gas-water separator
,Flange,Wearing parts,Other Accessories
|
|
|
|
Certification
|
ISO 9001
|
|
|
|
Warranty
|
One Year/According to customer requirements
|
|
|
2BEC series water ring vacuum pump and compressor is commonly used to pump gases that are free of solid particles, insoluble in water, and non-corrosive,to create vacuum and pressure in a closed vessel.
Example:2BEC 406
2BEC---- The code of the pump
40 ---- The size of impeller
6 ---- Impeller length-diameter ratio.(when the pump body with the septum, code is 6)
2BEC---- The code of the pump
40 ---- The size of impeller
6 ---- Impeller length-diameter ratio.(when the pump body with the septum, code is 6)
|
Model
|
Min.pumping pressure(hPa)
|
Aspirating Volume(m
3
/min)
|
Power(kw)
|
|
2BEC40
|
160
|
65-143
|
90-220
|
|
2BEC42
|
160
|
87-194
|
132-315
|
|
2BEC50
|
160
|
112-260
|
160-400
|
|
2BEC52
|
160
|
138-315
|
185-450
|
|
2BEC60
|
160
|
168-360
|
220-500
|
|
2BEC62
|
160
|
200-437
|
280-400
|
|
2BEC67
|
160
|
237-518
|
315-710
|
|
2BEC72
|
160
|
283-633
|
400-900
|
|
2BEC80
|
160
|
430-710
|
500-800
|
|
2BEC100
|
160
|
675-1000
|
900-1120
|
2BE high pressure air water ring vacuum pump price.It is used to pump corrosive gases or corrosive liquids as working fluids.Widely used in paper, chemical, petrochemical, light industry, pharmaceutical, food, metallurgy, building materials, electrical appliances, coal washing, mineral processing, fertilizer and other industries.
This series of pump has the advantages of simple structure, convenient maintenance, reliable operation, high efficiency and energy saving.The welding impeller is used, the blade is stamped and formed once.After the impeller is welded, the whole heat treatment is carried out as a whole, and the blade has good toughness, so that the impact resistance and bending resistance of the blade are fundamentally guaranteed, and it can adapt to the severe working conditions of load shock fluctuation.
1 / Q: Are you a manufactory or trading company?
A: We are water pump manufactory with more than 30 years production experience.
2 / Q: What’s your MOQ?
A: Trial sample order is OK .
3 / Q: What’s your payment terms?
A: T/T , L/C , ......
4 / Q: What certificates do you have ?
A: CE , ISO 9001 , UL .....
5 / Q: How about the warranty ?
A: One year warranty for pumps .
6 / Q: What is the delivery time ?
A: 10-30 days according to customer quantities .
7 / Q: Can you do OEM brand ?
A: Yes, Welcome .
8 / Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the gas ?
Air?Water vapor?Oxygen?
What is the pressure ?The Max.suction capacity range ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you.
If you have special requirement, such material, please inform us .
9 / Q: How to replace parts ?
A: In the order period, we will list our vulnerable parts and their quantities to our customer, and sold at competitive price,then ship together with pumps if customer needs.
FOR MORE QUESTIONS, PLEASE CONTACT OUR SALES.
