Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Brand Name:
-
GoodCut
-
Dimension(L*W*H):
-
900*700*400mm
-
Weight (KG):
-
800 KG
-
Product name:
-
50 watt 6090 6040 rf laser engraver mini co2 laser machine
-
Water pump:
-
Yes
-
Motor:
-
Leadshine stepper motor
-
Driver:
-
Leadshine driver
-
Control system:
-
Laser DRW/Ruida Control System/Leetro/Topwisdom
-
Laser tube power:
-
40w/50w/60w/80W/100W Optional
-
Laser tube brand:
-
Beijing Reci, EFR
-
Lens:
-
US II-VI lens
-
Transmission:
-
belt transmission, PMI linear square guide rails
-
Optional parts:
-
Up-down Worktable, rotary device
Quick Details
-
Engraving Area:
-
400*400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
75000mm/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Brand Name:
-
GoodCut
-
Dimension(L*W*H):
-
900*700*400mm
-
Weight (KG):
-
800 KG
-
Product name:
-
50 watt 6090 6040 rf laser engraver mini co2 laser machine
-
Water pump:
-
Yes
-
Motor:
-
Leadshine stepper motor
-
Driver:
-
Leadshine driver
-
Control system:
-
Laser DRW/Ruida Control System/Leetro/Topwisdom
-
Laser tube power:
-
40w/50w/60w/80W/100W Optional
-
Laser tube brand:
-
Beijing Reci, EFR
-
Lens:
-
US II-VI lens
-
Transmission:
-
belt transmission, PMI linear square guide rails
-
Optional parts:
-
Up-down Worktable, rotary device

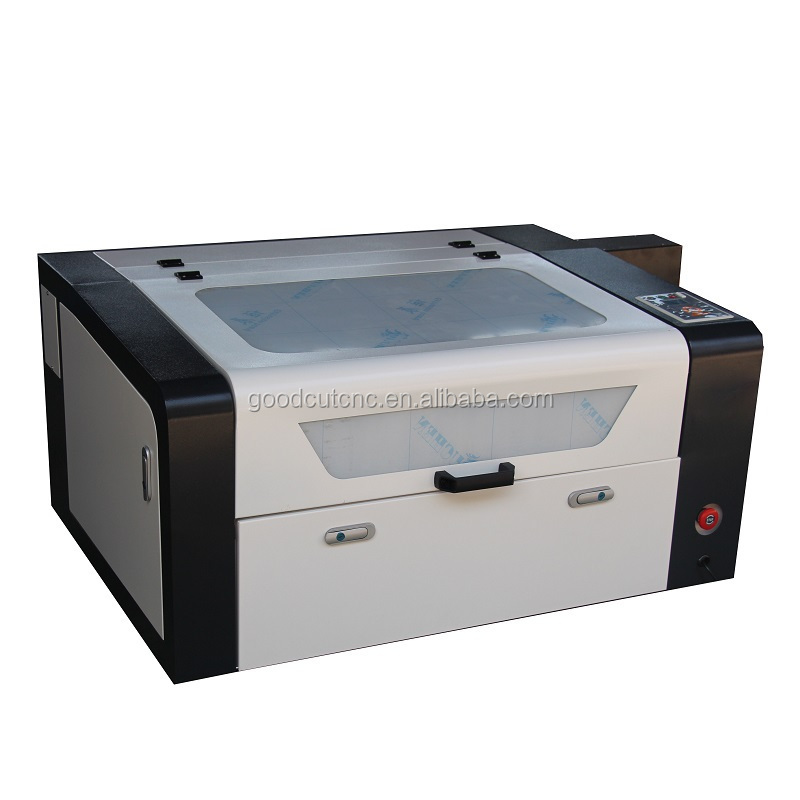

50 watt 6090 6040 rf laser engraver mini co2 laser machine
The laser engraving machine improves the efficiency of carving, makes the surface of the engraving smooth and round, rapidly reduces the temperature of the sculptured non metal material, reduces the deformation and internal stress of the engraving, and can be widely used in the fine engraving fields of various non-metallic materials. Laser engraving machine can be roughly divided into: non-metal laser engraving machine and metal laser engraving machine.
Parameters:
|
Item / Model |
GC6040L GC6090L |
|
Cutting area |
400*600mm 600*900mm |
|
Laser power |
40w 50w 60w 80w |
|
Laser type |
CO2 sealed laser tube,water-cooled,10.6um |
|
Working table |
Honeycomb or fixture |
|
Max cutting speed |
300mm/s |
|
Resolving accuracy |
0.0125mm |
|
Power supply |
110V/AC-220V/AC, 50 ~ 60Hz |
|
Min. shaping character |
English 1.0 x 1.0mm |
|
Graphic format supported |
BMP, PLT, DST, DXF, AI |
|
Software supported |
TAJIMA, CorelDraw, Photoshop, AutoCAD |
|
Driving system |
X/Y: servo , Z: stepper |
|
Cooling mode |
Water-cooling and protection system |
|
Equipment Dimensions |
900x600x350mm |
|
Total power |
200w |
|
Optional Spare Parts |
Honeycomb table |
|
Recommended Spare Parts |
Laser Tube and Lens |
Features:
1. Anodizing treatment, high temperature corrosion resistance, 360 degree adjustment of light path, red light positioning, blowing port
2. 42 stepping motor, precision 0.9 degree step angle, high torque, special flexible coupling for export can drive motor torque efficiently, correct deviation to improve shafting dynamic performance
3.X-axis nylon drag chain with light structure can protect the windpipe and red light
4. The patented chip reset system has more precise positioning coordinates, and the quality is more stable, and the problems of incorrect coordinates and inaccurate positioning are eliminated.
5. Led lamp has high brightness, low power, energy saving and environmental protection, magnetic suspension, movable lighting position.
Applicable Materials:
engraverVarious nonmetal materials, such as rubber, acrylic, plexiglass, bowlder, crystal, wood, plastic etc
Applicable Industry:
Mainly used for engraving of non-metal materials: such as ox horns, wood, plexiglass,
atomic materials, crystal, bowlder, etc..
Applying for processing of small-size artistic products. For the engraving of patterns and
characters on double-color planks, wood board, bamboo piece, organic glass plank
and cloth. The patterns and characters engraved are real to life and pleasing to the eye.
For the engraving of titles, types, signs, patterns etc. On electronic parts, which will last
for longtime.
Packing&Shipping:
1)Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
2)Shipping:
We cooperate with shipping company whose experience in the ocean transportation will guarantee your machine safety.
3)Payment:
We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assuranc
Our Service:
|
2. Maintenance free of charge for 2 years . |
|
4. 24 hours online service, free technical support. |
|
5. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. |
|
6.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance. |
