Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Weida
-
Voltage:
-
220v/380v/400/440 or customized
-
Dimension(L*W*H):
-
5800x2400x2800mm
-
Weight (KG):
-
16000 kg
-
Block Type:
-
Hollow/solid/paver Concrete Brick Machine
-
Color:
-
Customers Required
-
Pallet size:
-
1300*900*30mm
-
Molding cycle:
-
15-20s
-
Model:
-
QT12-15
-
Advantage:
-
Operating Easily
-
After Warranty Service:
-
Video technical support
-
Keywords:
-
Block Making Machine
-
Applied Products:
-
Concrete Blocks Paving Stones
-
Raw material:
-
Crushed Stone
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Solid brick machine
-
Brick Raw Material:
-
Cement/concrete/fly ash/sand/crushed stone/water
-
Production Capacity (Pieces/8 hours):
-
23040
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Weida
-
Voltage:
-
220v/380v/400/440 or customized
-
Dimension(L*W*H):
-
5800x2400x2800mm
-
Weight (KG):
-
16000 kg
-
Block Type:
-
Hollow/solid/paver Concrete Brick Machine
-
Color:
-
Customers Required
-
Pallet size:
-
1300*900*30mm
-
Molding cycle:
-
15-20s
-
Model:
-
QT12-15
-
Advantage:
-
Operating Easily
-
After Warranty Service:
-
Video technical support
-
Keywords:
-
Block Making Machine
-
Applied Products:
-
Concrete Blocks Paving Stones
-
Raw material:
-
Crushed Stone
block making machines in Germany full automatic concrete cement paving stock block brick making machinery machine in middle east
Product Description

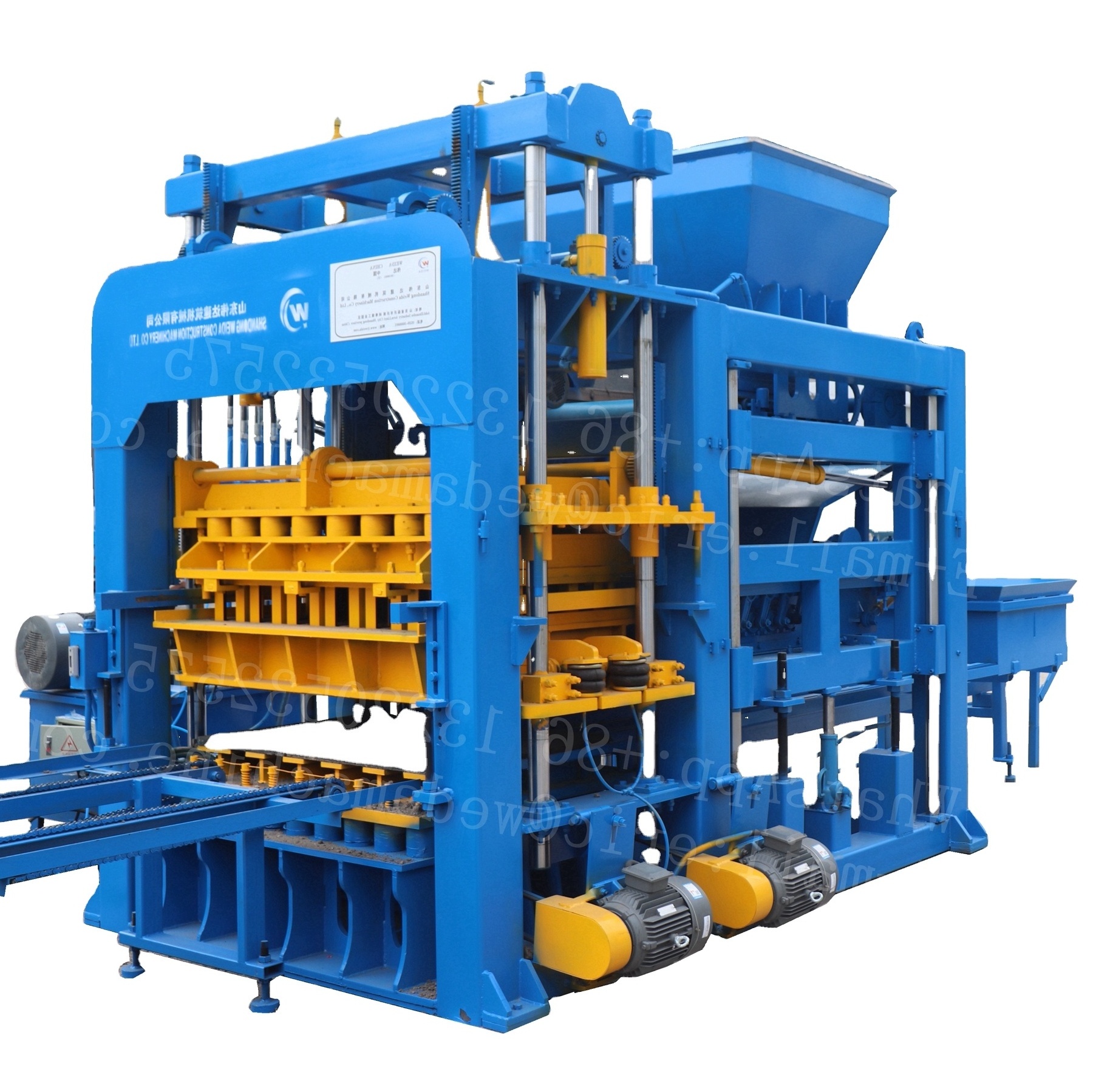

QT12-15 Block making machine is one of our hot sales machine models, it is full automatic work with PLC,can produce all kinds of hollow blocks, solid block, pavers, curbstones and so on. Following is the advantages of our block machine .
1. PLC control: we seleced original Siemens PLC combine with independently develop machine control program, assure stable and high-effciency work status.
2. Switches and motor: switches will use Japan Omron and France Schneider brand, motor will use Siemens or ABB brand.
3. Hydraulic system: hydraulic spare parts be ordered according to our block machine characteristics form Taiwan.
4. Material feeder: rotary mixer type material feeding cart, finshed products get higher density and strength.
5. Mould: newest heat treatment device assure longer mould life span.
6. Spare parts: follow the machine shipment, we supply suitable wearing parts, the after-sales services will be faster.
Machine Advantage
National standard steel Q235B
hardness and wear-resistant ability is 1.3 times better than common steel and carbon dioxide gas protection welding.
High qulity Block Molds
The mould are all treated by High temperature carburizing.The service life are 3 times longer than normal one
Siemens motors
Famous brand quality, ensure the machine to run steadily and safely, long service life
Wire-electrode cutting
Special mold production using line cutting method, mold size more accurate, according to customer requirements to customize the mold
Siemens PLC
Siemens PLC is adopted for accurate control and smooth operation，Machines are smarter。
Touch screen
Fully automatic machine with touch screen, easy to operate and not easy to damage
Features:
1.This block making machine is hydraulic pressure , the final block compressive strength can reach 15 mpa . it is controled by PLC , very easy to operate . and has high efficiency , reasonable design .
2.Good adaptability of raw materials, advanced step vibration molding technology . can use slag , fly ash and other industry residue
3. It can make many kind of block by changing molds
.Cater to the market demand to the greatest extent, let the equipment maximize the efficiency.
Capacity
It is A full automatic concrete block making machine which is specialized in construction building block such as hollow block , solid block , paver block , porous brick , road kerb , grassing brick , ring tree brick and other concrete products .The material can be fly ash , cinder , coal gabgue and other industrial residue . Add the color material feeding machine (color system ) can produce colored products .
|
1
|
size(length x width x height)
|
Pcs/ mould
|
Pcs/ hour
|
Pcs/shift(8 hours)
|
|
2
|
400*200*200mm
|
12
|
2160-2880
|
17280-23040
|
|
3
|
200*100*60mm
|
44
|
1508
|
66352
|
|
4
|
240*150*53mm
|
62
|
1920
|
119040
|
Packing and delivery
Our Service
1.Machine Color Customized as your requirements
2.Engineers draw drawings as your design and brick shapes can be customized
5.Come to visit ourfactory, free training
6. 24 hours online support .provide you best Pre-sale and after-sales service
Customer Case
Company Introduction
Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province, China. With RMB 16 million investment and 53,000 square meters area, it is a high-tech development enterprise with a high starting point. Its main business covers autoclaved aerated concrete production line, large and medium-sized non-burning brick machine, high-strength gypsum powder extraction equipment. It has advanced processing equipment, exquisite professional technology and rich manufacturing experience.
