Quick Details
-
Lifting Height:
-
1900mm
-
Loading efficiency:
-
70t/h
-
Traveling speed:
-
3/6km/h
-
Adaptive tunnel dimension:
-
1.8*2.2m
-
Keywords:
-
Gold Mining Equipment
-
Color:
-
Customer's Request
-
Arm maximum turning angle:
-
73°
-
Size:
-
5600*1700*1700mm
-
Weight:
-
2530kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HengWang
-
Power:
-
15kw
-
Lifting Height:
-
1900mm
-
Loading efficiency:
-
70t/h
-
Traveling speed:
-
3/6km/h
-
Adaptive tunnel dimension:
-
1.8*2.2m
-
Keywords:
-
Gold Mining Equipment
-
Color:
-
Customer's Request
-
Arm maximum turning angle:
-
73°
-
Size:
-
5600*1700*1700mm
-
Weight:
-
2530kg
Product Application

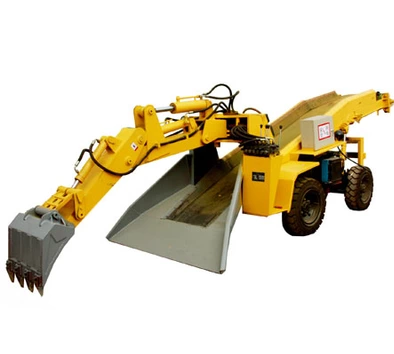

Mucking loader is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to adapt the space, less polluting to the air inside of the tunnel, it becomes a very important mechanical equipment in tunnel construction.Wheeled slag machine wide range (from left to right range of up to 4.5 meters, up to 2.8 meters on the ground, the ground up to 0.8 meters) ,It can be full-face loading of gravel, leaving no dead ends, do not need to manually clean up Site, you can also digging on both sides of the roadway ditch.
moving,digging,collecting,loading,conveying and dumping.
Mucking loader is used widely in the narrow and restricted tunnel of coal mine,metal mine,non-metal mine, hydropower
project,subway and railway station project,national defence construction project etc.
Mucking loader also can be used for loading bulk material in the open-air operation.
Mucking loader also can be used for danger removal with its working boom.
Main Features
1) Load sensing hydraulic priority to, stable and reliable, energy conservation and significant.
2) Durable, each gear ratio reasonable matching, reduce the power consumption.
3) Simple structure and reliable performance.
4) Semi-enclosed assembling,easy to maintain.
5) Reduce the power consumption.
The products adopt electric power full-hydraulic drive system,and adopt hydraulic pilot operation,no tail gas,environment
protection.
Pushing force is large, digging range is wide,full face mucking,no manual work is needed to clean the working site.
Machine hydraulic system adopt air cooling,and come with seat and cab.
The products are safety and reliable and efficient and environment protection,labour-saving.
|
SPECIFICATION FOR MUCKING LOADER
|
|
|
|
|
|
|||||
|
Model
|
HW-ZWY50
|
HW-ZWY60
|
HW-ZWY70
|
HW-ZWY80
|
HW-ZWY100
|
|||||
|
Power
|
15kw
|
15kw
|
15kw
|
19kw
|
19kw
|
|||||
|
Lifting Height
|
2000mm
|
2100mm
|
1900mm
|
1800mm
|
1740mm
|
|||||
|
Loading efficiency
|
50t/h
|
60t/h
|
70t/h
|
80t/h
|
100t/h
|
|||||
|
Traveling speed
|
3/6km/h
|
3/6km/h
|
3/6km/h
|
3/6km/h
|
2.5/1.4km/h
|
|||||
|
Adaptive tunnel dimension
|
1.5*1.8m
|
1.5*1.8m
|
1.8*2.2m
|
2.6*2.6m
|
3*3m
|
|||||
|
Arm maximum turning angle
|
73°
|
73°
|
73°
|
73°
|
73°
|
|||||
|
Size
|
4300*1500*1500mm
|
4300*1500*1500mm
|
5600*1700*1700mm
|
6000*1700*1770mm
|
6400*1730*1650mm
|
|||||
|
Weight
|
2500kg
|
2500kg
|
2530kg
|
2680kg
|
2990kg
|
|||||
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
