Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
Shinechip
-
Model Number:
-
YT12WD
-
Mechanical Life:
-
300000h
-
Switch Type:
-
Mirror Hand Sweep Switch
-
Product name:
-
Mirror Hand Sweep Switch
-
Model No:
-
YT12WD
-
Input Voltage:
-
180-240VAC
-
Output Voltage:
-
DC12V
-
Max Load:
-
1A-12W
-
LED Indicator:
-
Blue (On Mode); White (Off Mode)
-
Dimension:
-
93 x 65 x 13mm
-
Support Mirror Thickness:
-
≤5mm
-
Warranty:
-
2years
-
Application:
-
Bathroom Mirror
Quick Details
-
Max. Current:
-
1A
-
Max. Voltage:
-
12V
-
Customized support:
-
Yes
-
Place of Origin:
-
GUA
-
Brand Name:
-
Shinechip
-
Model Number:
-
YT12WD
-
Mechanical Life:
-
300000h
-
Switch Type:
-
Mirror Hand Sweep Switch
-
Product name:
-
Mirror Hand Sweep Switch
-
Model No:
-
YT12WD
-
Input Voltage:
-
180-240VAC
-
Output Voltage:
-
DC12V
-
Max Load:
-
1A-12W
-
LED Indicator:
-
Blue (On Mode); White (Off Mode)
-
Dimension:
-
93 x 65 x 13mm
-
Support Mirror Thickness:
-
≤5mm
-
Warranty:
-
2years
-
Application:
-
Bathroom Mirror

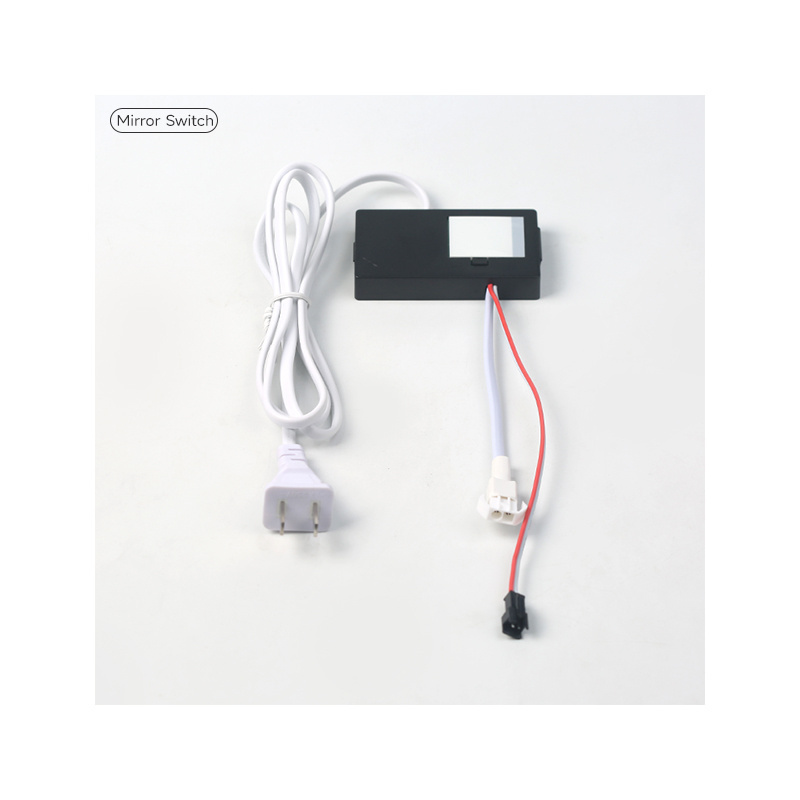

The
Mirror
H
and sweep Switch
is a smart switch specially designed for all kinds of bathroom smart light mirrors, bathroom anti-fog light mirrors, LED light mirrors, mirror cabinets and other products, and for control closed areas are formed in the places of the buttons by removing the reflective layer.
|
Product Name
|
Mirror Hand sweep Switch
|
|
|
|
|||
|
Model No
|
YT-12WD
|
|
|
|
|||
|
Functions
|
Monochrome ON/OFF
|
Bicolor ON/OFF
|
Monochrome with anti-fog
|
Bicolor with anti-fog
|
|||
|
Input Voltage
|
180-240V AC
|
Hand scan on/off +Dimming + Color Adjustable
|
|
|
|||
|
Output Voltage
|
DC12V
|
|
|
|
|||
|
Max Load
|
1A 12W Max
|
|
|
|
|||
|
LED Indicator
|
Blue (ON Mode); White (OFF Mode)
|
|
|
|
|||
|
Color Available
|
Black
|
|
|
|
|||
|
Dimension
|
93 x 65 x 13mm
|
|
|
|
|||
|
Support Mirror Thickness
|
≤ 5mm
|
|
|
|
|||
|
Application
|
bathroom mirror; makeup mirror
|
|
|
|
|||
ATTENTION!
1. The outer contour of the picture must be closed! An open contour of the pattern is not allowed.
2. Regular adhesive tape is designed to facilitate installation and testing of the product. After checking the correct
installation and operability, it is recommended to fix the fixing plate additionally with the help of glue-sealant for mirrors
installation and operability, it is recommended to fix the fixing plate additionally with the help of glue-sealant for mirrors
or glue for a heat gun.
