High speed CE Certificated Automatic Bottle Liquid Soy Sauce Filling Machine

High speed CE Certificated Automatic Bottle Liquid Soy Sauce Filling Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: 2MM

Voltage:: 380V

Place of Origin:: Jiangsu, China

Brand Name:: EQS

Dimension(L*W*H):: 2760*2280*2750mm

Weight:: 5000 KG

Keywords:: sauce filling machine

Bottle type:: PET Plastic Bottle Glass Bottle

After-sales Service Provided:: Service Machinery Overseas

Operation:: Automatic Operation

Material:: SUS 304

Advantage:: Automatic Working

Key words:: Bottler Filling

Marketing Type:: Ordinary Product

Filling nozzles:: 24

Certification:: CE Certified

Quick Details

Machinery Capacity:: 5000BPH

Packaging Material:: Plastic

Filling Material:: sauce

Filling Accuracy:: 2MM

Voltage:: 380V

Place of Origin:: Jiangsu, China

Brand Name:: EQS

Dimension(L*W*H):: 2760*2280*2750mm

Weight:: 5000 KG

Keywords:: sauce filling machine

Bottle type:: PET Plastic Bottle Glass Bottle

After-sales Service Provided:: Service Machinery Overseas

Operation:: Automatic Operation

Material:: SUS 304

Advantage:: Automatic Working

Key words:: Bottler Filling

Marketing Type:: Ordinary Product

Filling nozzles:: 24

Certification:: CE Certified

Product Description

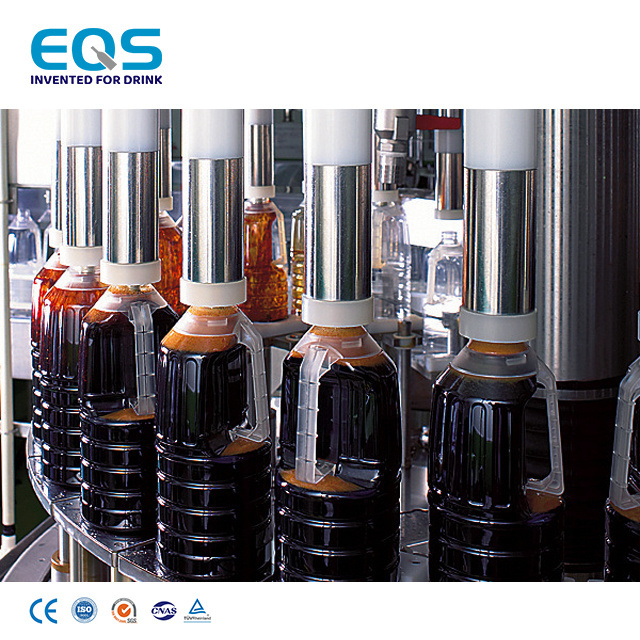

High speed CE Certificated Automatic Bottle Liquid Soy Sauce Filling Machine

Click here to contact us

Product Application

This sauce bottle filling machine is the introduction of German technology, combined with the characteristics of sauce production industry, designed to develop small scale sauce filling machine. The machine has excellent mechanical operation reliability, improved rinsing, filling, capping, disinfection sterilization and other functions. We are the professional beer bottle filling machine supplier in China.

Characteristics：

1. This Sauce bottling machine can realize automatic washing and filling and capping in united machine.
2. The available bottle volume can be 200ml, 330ml, 500ml, 750ml,...

3. Its capacity is 5000-6000BPH for 500ml/300ml.

Details Of Filling Machine

Detailed Technical Data of Beer Filling Machine

Model	RCGF24-24-8
Washing Head	24
Filling Head	24
Sealing Head	8
Capacity(BPH/500ML)	5000
Weight(KG)	5000

Advantage：

1)Adopted German technology anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2)The pressure mechanical valve is introduced in the advanced foreign design with a fast filling speed, no hygiene corner, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel with food-grade standards.

3)The filling system can connect a CIP circulation system to wash the pipeline. The CIP system can clean the liquid pipe, liquid tank, filling valve and etc. effectively.
4)This filling system has an automatic temperature control system.
5)Customize the whole line according to demand, match the output demand, maximize the use of capacity, and generate revenue forcustomers.

Washing Part of Sauce Filling Machine

- 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.

- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.

- 304/316 stainless steel washing pump make the machine more durable.

Filling Part of Sauce Filling Machine

- 304/316 Stainless steel high precision filling nozzle

- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

- 304/316 stainless steel filling pump

- Efficient spray nozzle rinse thoroughly and save water for flushing

Capping Part of Sauce Filling Machine

- All 304/316 stainless steel construction

- No bottle no capping

- Automatic stop when lack of bottle

- Capping effect is stable and reliable, Defective rate ≤0.1%

Other Equipment of Production Line For Reference

Shrink Film Wrapping Machine

Beer Bottle Dryer

Cap Uploader

Self-adhesive Labeling Machine

Conveyor

welcome to contact us

Date Printer

More Details Of Material

1. High level humanized customization service to customize the most suitable products and services for you individually according to your specific needs, budget and actual situation.

2. Through more than ten years of experience in mechanical production and investigation of customer feedback, we constantly improve products, improve product details and improve machine quality in the spirit of ingenuity. Each unique design is designed to ensure the best user experience for customers.
3. Absolute real material and unique design greatly increase the service life of the machine, ensure the stable output of the machine and long-term efficient working ability.

About us

F actory

Our company is a public company in China with over 15 subsidiaries.And we are famous in the field of dairy, dairy, beverage,condiment, wine, daily chemicals. And we focus on providing the global customer with complete sets of intelligent equipment and turnkey solutions such as water treatment, pre-allocation, bottle blowing, filling, secondary packaging, robotic palletizing, intelligent equipment workshops, etc.

Cooperation Partner

Our equipment has been exported to abroad and domestic market. Such as Mengniu, MasterKong, Nongfu Spring, PANPAN, CoCa Cola, Yili, Comfort, Pepsi, Robust, Sanyuan, Tsingtao Beer, SnowBeer, RedBull, Jianlibao,C’setbon, Nestle Waters, Lotte, Malee, Safeguard, Kinsell, Perrier, Evian, Wahaha, New Hope, Hengshun,... who are all our cooperated partners.

Production & Processing

We have a strong technology technology resources development and production team, which has two lead engineers with twenty years of experience, fifteen senior electrical engineers, ten overseas installation engineers over 30 years, about hundreds assembly workers with 5-20 practical production experience.

Exhibition

We had attended the Germany Nuremberg Exhibition, Poland Warsaw Exhibition, Indonesia Packing Exhibition,...

Certification

Why Choose Us

Packaging

The normal package is wrapping shrink film first,after that wooden box(Size: L*W*H). We also can pack it according to customers special request.

FAQ

Q1: Are you a trading company or a manufacturer?

A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 20 year's experience,welcome to visit!

Q2.How can I know your machine has good quality?

A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q3:What's your guarantee or the warranty of the quality if we buy your machines?

A3: We offer you high quality machines with 15 months guarantee and supply life-long technical support.

Q4: When can I get my machine after I paid?
A4: The delivery time is based on the exact machine you confirmed.

Q5: How can I install my machine when it arrives?

A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.

Q6: How about the spare parts?

A6: After we deal down all the things, we will offer you a spare parts list for your reference.
