Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIENUO
-
Product name:
-
poultry house circulation fan greenhouse air flow fan
-
blade material:
-
stainless steel
-
blade diameter:
-
400mm
-
Air Volume:
-
46000m3/h
-
weight:
-
8.5kg
-
measurement:
-
460*460*310
-
rotate speed:
-
1400r/min
Quick Details
-
Size:
-
Large
-
Type:
-
Multi-Span Agricultural Greenhouses
-
Model Number:
-
JHF-400
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIENUO
-
Product name:
-
poultry house circulation fan greenhouse air flow fan
-
blade material:
-
stainless steel
-
blade diameter:
-
400mm
-
Air Volume:
-
46000m3/h
-
weight:
-
8.5kg
-
measurement:
-
460*460*310
-
rotate speed:
-
1400r/min
name:poultry house circulation fan greenhouse air flow fan
|
Model |
JHF-400 |
|
|
Blade diameter (mm) |
400 |
|
|
Power supply |
Single-phase220V |
|
|
Frequency |
50Hz |
|
|
Rotation number |
1240 |
1320 |
|
Power consumption (W) |
34 |
55 |
|
Current (A) |
0.36 |
0.6 |
|
Air Volume (m3/min) |
71 |
|
|
Body weight |
Approximately8.0Kg |
|
|
Power Line |
VCTF0.7Sp ,With ground2Core plug |
|
|
Tube length (mm) |
310 |
|
|
Case Material |
Stainless steel |
|

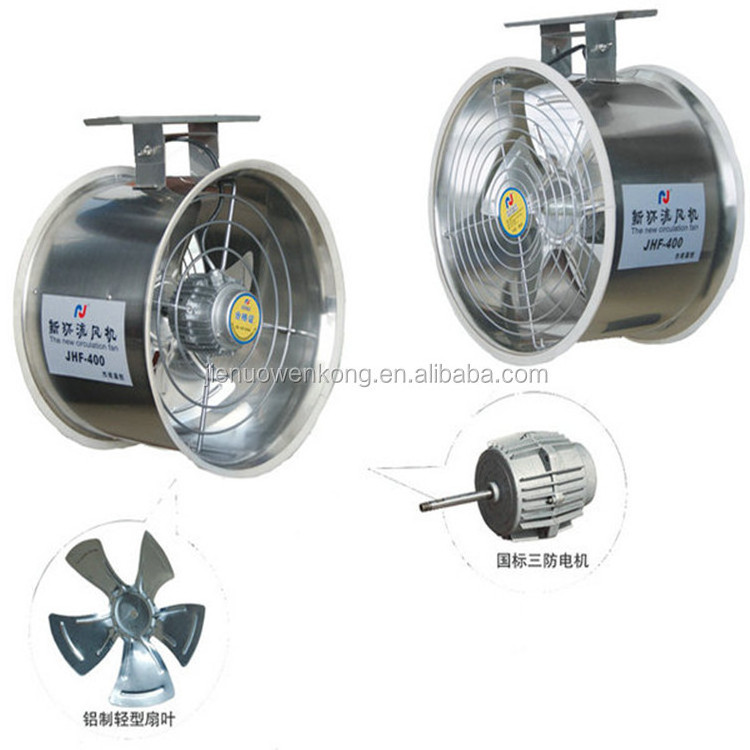

JHF SERIES NEW GREENHOUSE CIRCULATION FAN 400(JHF-400-B)
1.Adopt japan advanced technology and design,have a good market and abroad.
2.Adopt excellent customized tri-proof motor especially for greenhouse that approved by 3c.the life of the motor is more than 12 years.
3.The shell of the fan is made by mild punch at one time,the material is aluminum alloy,which is also corrosion resistant.
4.The fan has big wind volume and it save 50% energy more than the same kind of products in china.
5.The hanging fastening is very convenient for installation.with it the fan can adjust freely.
6.There are metal nets in the front and back of the fan,which is more save.
