Quick Details
-
Panel Efficiency:
-
22.6%
-
Type:
-
Flexible
-
Solar cell:
-
125*125 mm USA Sunpower solar cells
-
Color:
-
Deep Blue
-
Backsheet:
-
Double-Sided TPT
-
EVA:
-
excellent anti-aging resistance
-
Junction Box:
-
General international standard IP65
-
Solar Cell efficiency:
-
21.3~23%
-
Product name:
-
flexible solar panels marine
-
Item Type:
-
80 watt flexible solar panel
-
Keyword:
-
caravan solar panels
Quick Details
-
Brand Name:
-
Vglory or OEM
-
Model Number:
-
U-FSP80W
-
Place of Origin:
-
Guangdong, China
-
Panel Efficiency:
-
22.6%
-
Type:
-
Flexible
-
Solar cell:
-
125*125 mm USA Sunpower solar cells
-
Color:
-
Deep Blue
-
Backsheet:
-
Double-Sided TPT
-
EVA:
-
excellent anti-aging resistance
-
Junction Box:
-
General international standard IP65
-
Solar Cell efficiency:
-
21.3~23%
-
Product name:
-
flexible solar panels marine
-
Item Type:
-
80 watt flexible solar panel
-
Keyword:
-
caravan solar panels

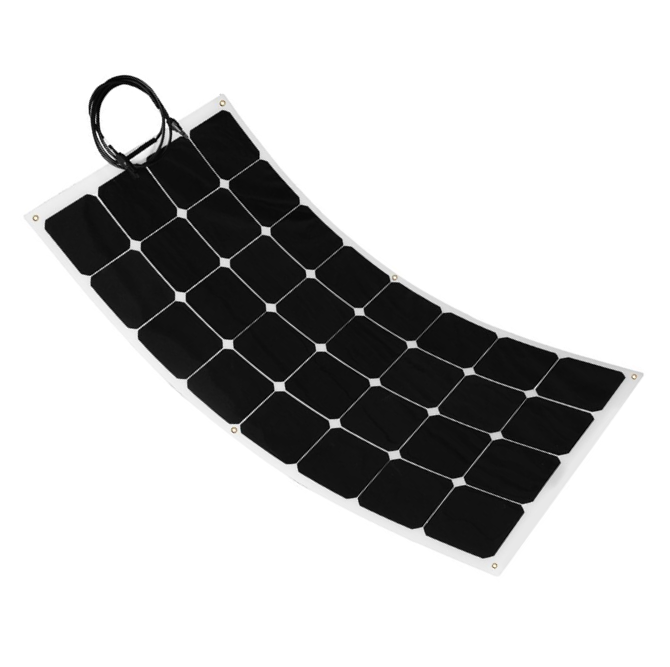

Best quality 24v 80w 48v flexible solar panel 24 volt panels
|
80W Sunpower flexible solar panels |
|
|
Cell size(mm): |
125*125 |
|
Power tolerance: |
±3% |
|
Peak power(WP): |
80w |
|
Voltage at Pmax(Vmp): |
15.4V |
|
Current at Pmax(Imp): |
5.52A |
|
Open circuit voltage(Voc): |
18.8V |
|
Short circuit current(Isc): |
6.07A |
|
Max system voltage(VDC): |
1000V |
|
Operating Temperature: |
-40℃ to + 85℃ |
|
Cell Efficiency: |
21.3% |
|
Temperature Coefficient of Pmax: |
-0.48%/℃ |
|
Temperature Coefficient of voc: |
-0.34%/℃ |
|
Temperature Coefficient of ISC: |
0.015%/℃ |
|
Nominal Operating Cell Temperature: |
45+/-2℃ |
|
Data under standard testing conditions(STC) |
1000W/M²; 1.5AM |
|
Type of Connector: |
TUV WaterProof Junction BOX |
|
Weight |
1.2kg |
|
Dimension(mm): |
545*535*3MM |
"...The most efficient flexible solar panel in the world..."
"...The smallest and lightest flexible solar panel you can find..."
| Power (W) | Vmp(V) | Imp(A) | Net Weight | Power (W) | Vmp(V) | Imp(A) | Net Weight | |
| 20W | 19.8V | 1.01A | 0.3kg | 130W | 22.50V | 5.77A | 2.5kg | |
| 30W | 17.0V | 1.76A | 0.7kg | 140W | 24.60V | 5.69A | 2.6kg | |
| 40W | 19.8V | 2.02A | 0.9kg | 150W | 26.80V | 5.60A | 2.7kg | |
| 50W | 17.6V | 2.84A | 1.2kg | 160W | 28.00V | 5.71A | 2.8kg | |
| 70W | 18.2V | 3.71A | 1.5kg | 200W | 34.00V | 5.88A | 3.0kg | |
| 80W | 20.0V | 4.00A | 1.6kg | 215W | 37.00V | 5.81A | 3.3kg | |
| 100W | 17.7V | 5.70A | 1.9kg | 235W | 39.6V | 5.93A | 3.8kg | |
| 110W | 18.2V | 6.04A | 1.9kg | 260W | 46.20V | 5.63A | 4.0kg | |
| 115W | 19.8V | 5.80A | 2.3kg | 270W | 46.20V | 5.84A | 4.0kg | |
| 120W | 20.5V | 5.85A | 2.3kg | 280W | 46.20V | 6.06A | 4.0kg |
Perfect wide use applications : Golf-cart , Yacht , boat , caravan , electric car , travel tourism car , patrol car , roof , camping, roof power generations , tent , portable bag , backpacks , portable generator kits ,lightweight roof solar system etc .
It is perfect for outdoor permanent use to provide free electricity charging 12V batteries to power various electronic devices, such as in a motorhome, caravan, camper, boat, or for solar lighting systems, off-grid and back up solar power systems, and complete household solar power systems.
